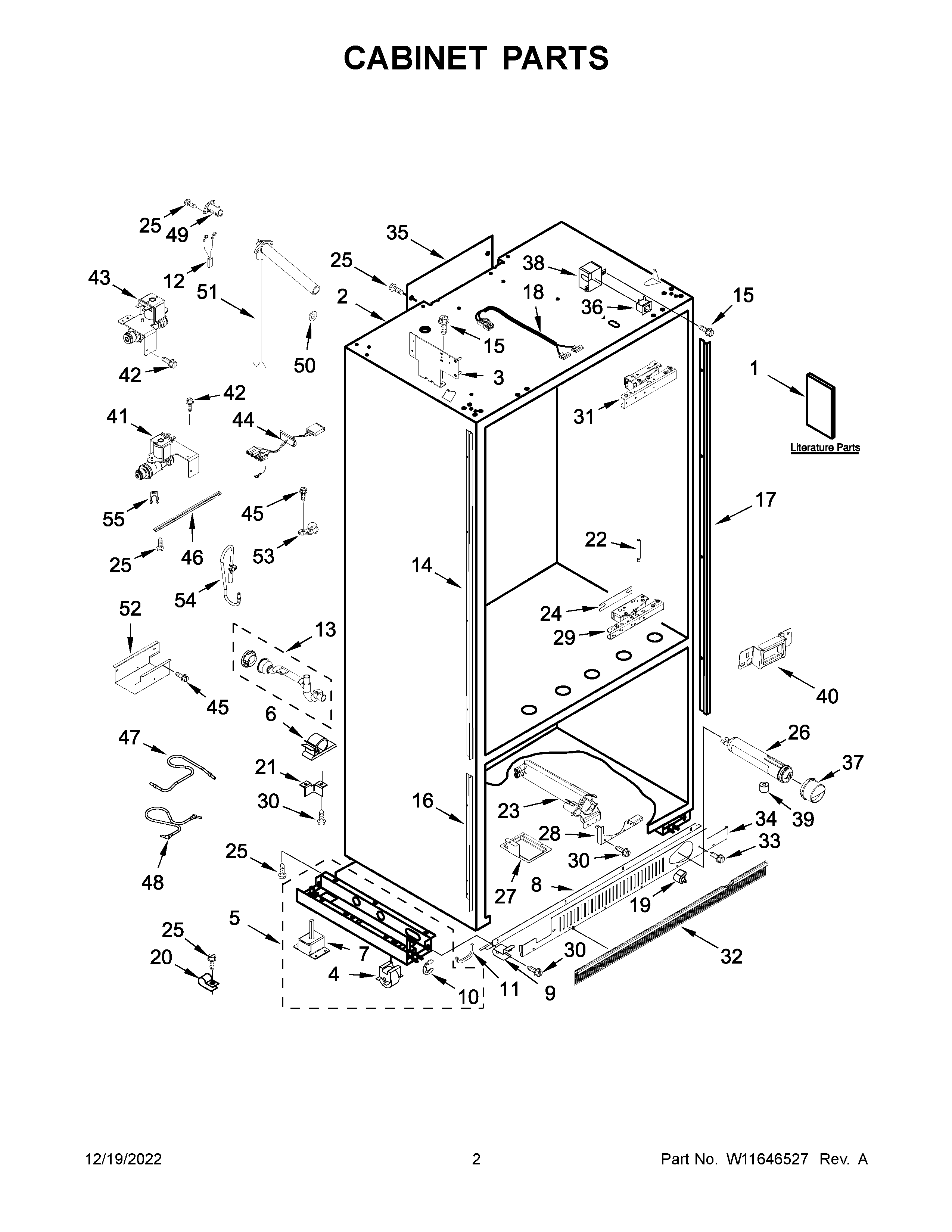

JB36NXFXLE05 02 – CABINET PARTS

Products

Position	Product
NI	W11175806 Whirlpool Refrigerator Installation Kit
NI	W10234156 Whirlpool Refrigerator Installation Kit
NI	W10744761 Whirlpool Refrigerator Installation Kit
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10488115 Whirlpool Installation Kit
1	USE AND CARE GUIDE
1D	WIRING DIAGRAM
1C	INSTALLATION INSTRUCTIONS
1B	TECH SHEET
1A	ENERGY GUIDE
3	W11042558 Whirlpool Refrigerator Bracket
3A	W11042559 Whirlpool Refrigerator Bracket
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5A	W10860448 Whirlpool Refrigerator Support
5	W10860229 Whirlpool Refrigerator Support
6	CLIP
7	2005032 Whirlpool Refrigerator Leveler
8	W10634858 Whirlpool Refrigerator Trim Grill
9	W10839844 Whirlpool Refrigerator Bracket
10	2006841 Whirlpool Ring
11	2307584 Whirlpool Refrigerator Grommet
12	W10482373 Whirlpool Refrigerator Jumper Wire
13	W11291510 Whirlpool Refrigerator Valve
14	W10687588 Whirlpool Refrigerator Cabinet Trim
15	W11721628 Whirlpool Screw Assembly
16	W10714137 Whirlpool Refrigerator Cabinet Trim
17	W10612000 Whirlpool Door Trim
18	W10740131 Whirlpool Jumper Wire
19	WP2260503B Whirlpool Refrigerator Button
20	W10833902 Whirlpool Refrigerator Clamp
21	2006617 Whirlpool Refrigerator Bracket
22	W10234202 Whirlpool Refrigerator Hinge Pin
23	WPW10121140 Whirlpool Refrigerator Housing
24	W10291661 Whirlpool Refrigerator Hinge Shim
25	W11624204 Whirlpool Screw
26	FILTER 3-SINGLE TEAL
27	2318189 Whirlpool Refrigerator Drip Pan
28	W10674648 Whirlpool Refrigerator Bracket
29	W10691148 Whirlpool Refrigerator Door Hinge
30	WP8533928 Whirlpool Refrigerator Screw
31	W10691145 Whirlpool Refrigerator Door Hinge
32	WPW10188547 Whirlpool Refrigerator Front Grille
34	W11739145 Whirlpool Front Grille
35	2215612 Whirlpool Refrigerator Duct Cover
36	SWITCH, LIGHT
37	W11238395 Whirlpool Refrigerator Filter Cap
38	COVER, SWITCH (LEFT & RIGHT HAND)
39	2005433 Whirlpool Refrigerator Spacer
40	COVER, SAFETY SWITCH
41	W11225845 Whirlpool Refrigerator Inlet Valve
42	WP489069 Whirlpool Compactor Screw
43	W11246413 Whirlpool Refrigerator Inlet Valve
44	WPL W11479397
45	WP489464 Whirlpool Refrigerator Screw
46	Support, Valve
47	W10619899 Whirlpool Refrigerator Water Tube
48	W10635851 Whirlpool Refrigerator Water Tube
49	WP2221240 Whirlpool Refrigerator Heater
50	WP1106508 Whirlpool Refrigerator Gasket
51	2317847 Whirlpool Refrigerator Water Tube
52	W10619291 Whirlpool Refrigerator Shield
53	W11456069 Whirlpool Refrigerator Clamp
54	WPL W10577944
55A	W10782424 Whirlpool Refrigerator Ring
55	W10782423 Whirlpool Refrigerator Ring
