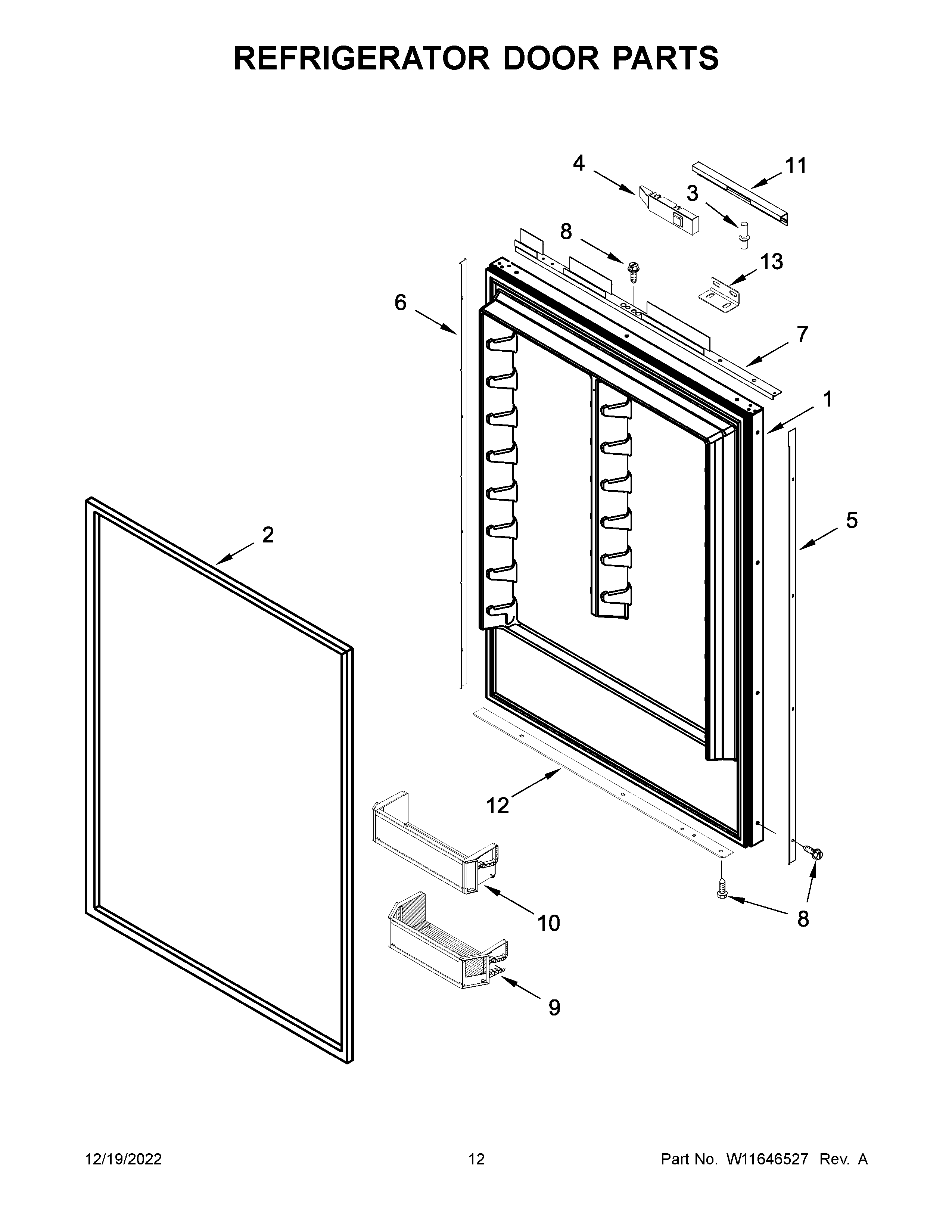

JB36NXFXLE05 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10772223 Whirlpool Mat
1W10782344 Whirlpool Refrigerator Door Assembly
2W11625610 Whirlpool Refrigerator FIP Gasket
3W10234194 Whirlpool Refrigerator Hinge Pin
4W10606813 Whirlpool Refrigerator Cover
4AW10606814 Whirlpool Refrigerator Cover
5W10611106 Whirlpool Refrigerator Door Trim
6TRIM, DOOR (HINGE SIDE) (GREY)
7W10611104 Whirlpool Refrigerator Door Trim
8WPW10142233 Whirlpool Refrigerator Screw
9BIN, GALLON
10W10529451 Whirlpool Refrigerator Cantilever Bin
11COVER, DOOR (TOP) RIGHT HAND (GREY)
12TRIM, DOOR (BOTTOM) RIGHT HAND (GREY)
13W10606841 Whirlpool Refrigerator Bracket
