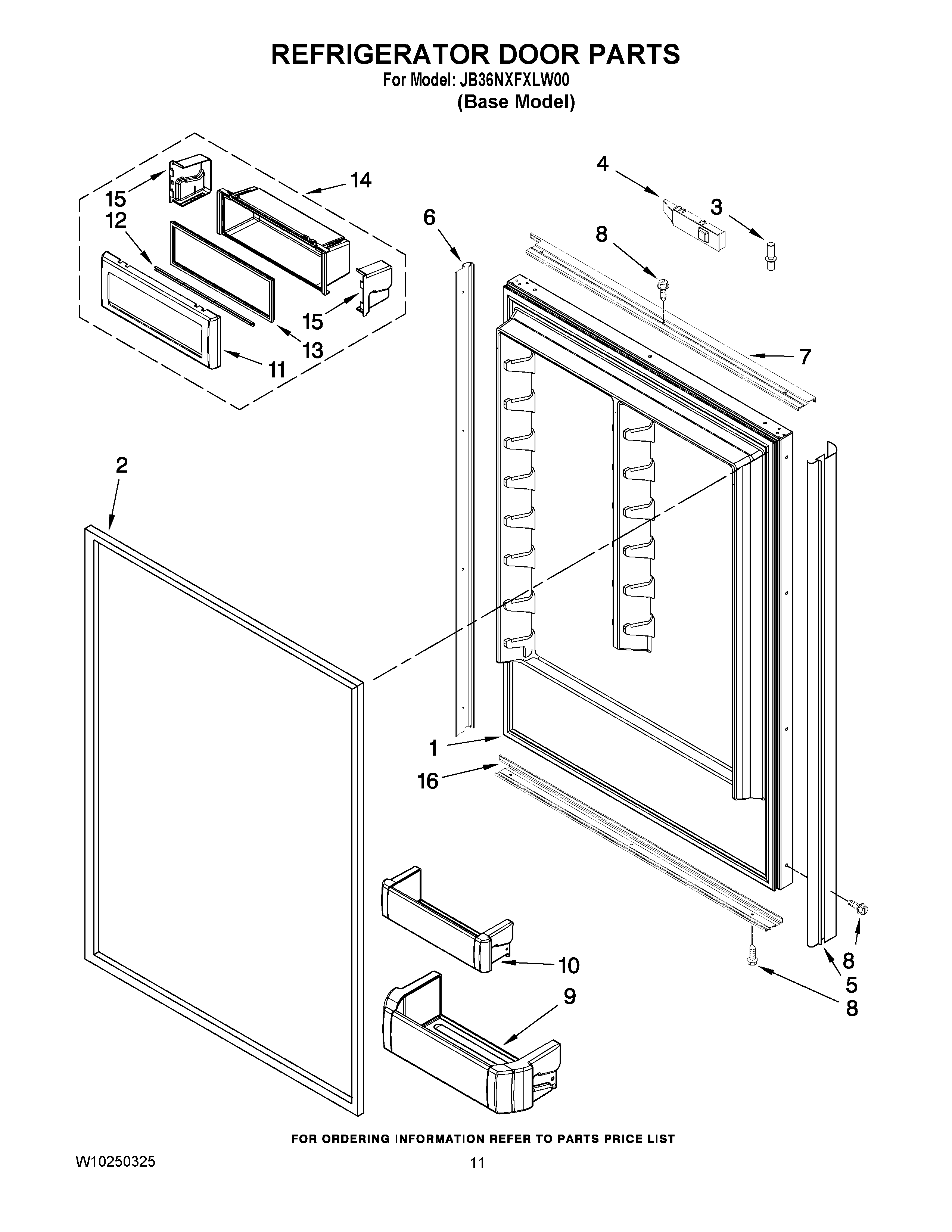

JB36NXFXLW00 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR (INCLUDES ITEM 2) (LEFT)
2	Gasket, Door
3	Pin-Door, Top
4	INSERT-DOOR, ARM (TOP)
4	INSERT-DOOR, ARM (BOTTOM)
5	TRIM DOOR (LEFT)
6	MAY W10202602
7	TRIM-DOOR, TOP (LEFT)
8	SCREW 10-32 X 1/2
9	MAY 2307975
10	Bin, Door (6)
11	LID, UTILITY
12	RAIL, UTILITY
13	GASKET, BIN UTILITY
14	MAY 2309252
15	End Cap (Left Side)
15	End Cap (Right Side)
16	TRIM-DOOR, BOTTOM (LEFT)
