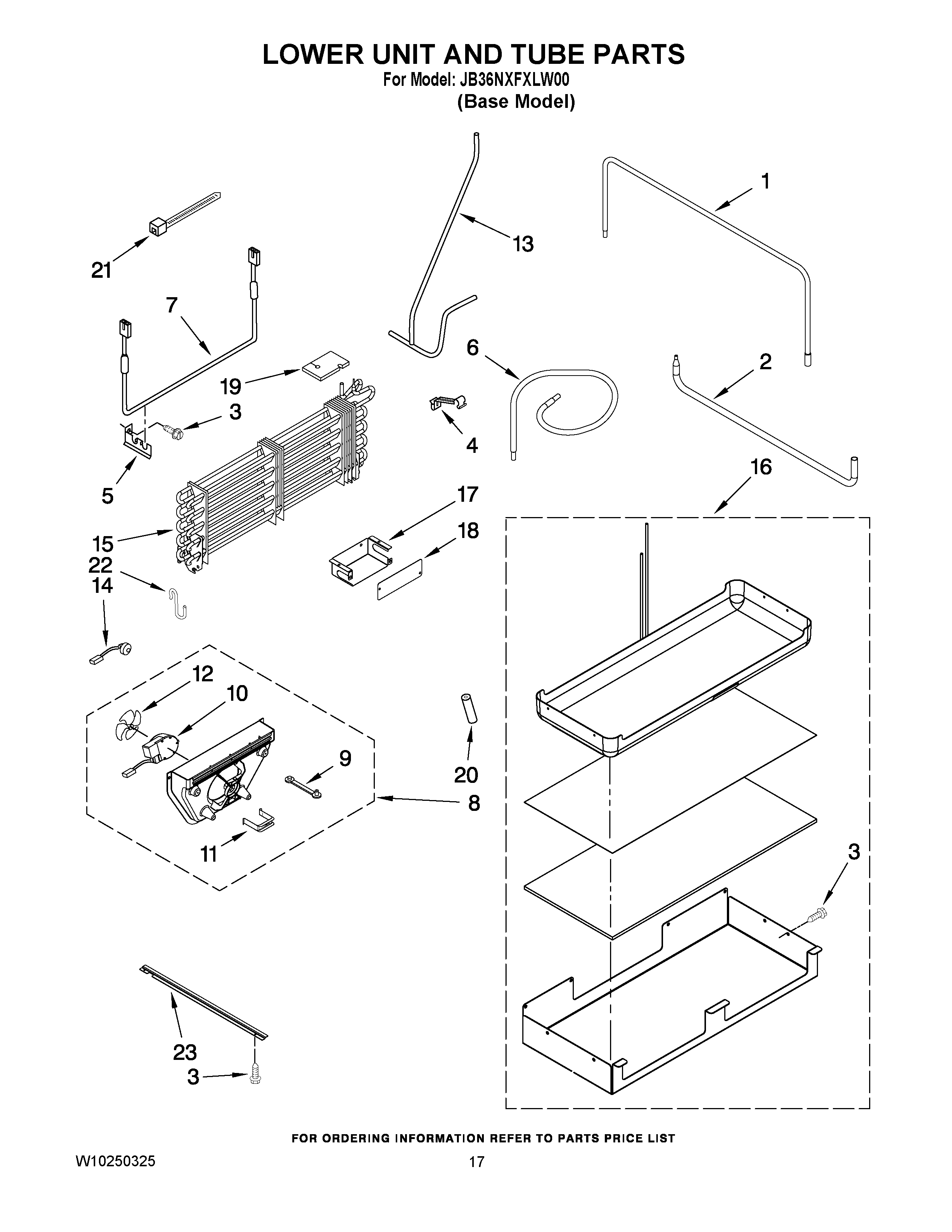

JB36NXFXLW00 10 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
1	TUBE, TRANSITION (CONDENSER/DRAIN PAN)
2	Tube, Connect (Drier/Restrictor)
3	SCREW
4	MAY 2307944
5	MAY 2307945
6	MAY 2309076
7	MAY 2268393
8	MAY 2306178
9	Grommet
10	MAY 2259385
11	MAY 2223733
12	Blade, Fan (Evaporator)
13	MAY W10121368
14	MAY 2321803
15	MAY W10195909
16	Drain Pan Assy.
17	MAY W10151288
18	MAY W10153595
19	MAY 2306180
20	Dampener
21	MAY 2155774
22	MAY 2317920
23	MAY 2320554
