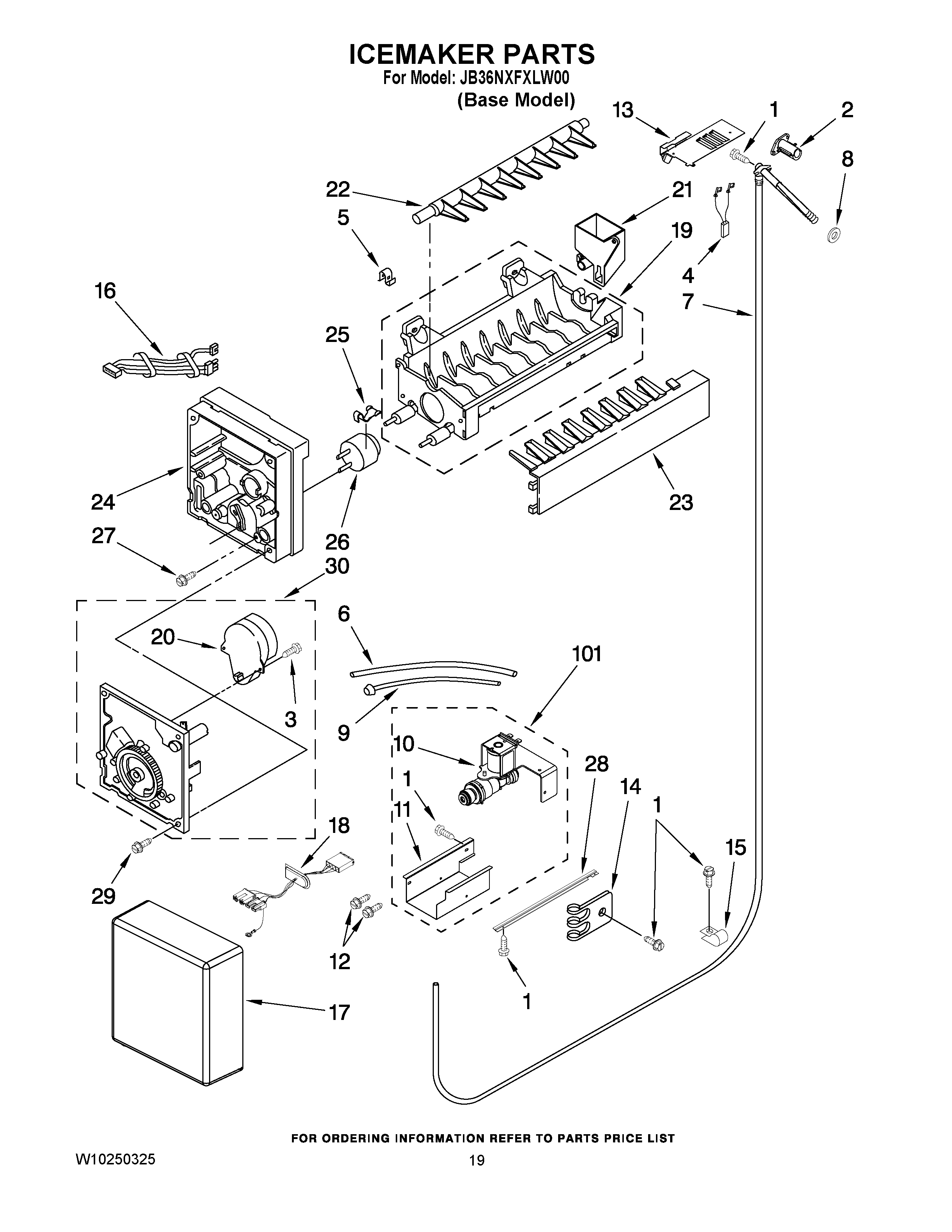

JB36NXFXLW00 11 – ICEMAKER PARTS

Products

Position	Product
NI	MAY W10222283
NI	MAY 8537055
NI	BLOCK, INSTALL TEMPLATE, WOOD PANELS
NI	MAY W10249830
NI	TEMPLATE, WOOD PANELS BM (RIGHT)
1	SCREW
2	MAY 2221240
3	MAY 489136
4	Jumper, Fill Tube Heater
5	Clip
6	MAY W10174395
7	MAY 2317847
8	Seal
9	MAY 2317912
10	MAY 2307650
11	MAY W10129653
12	Screw (3)
13	MAY 2221231
14	Clip, Tube
15	Clamp, Tubing
16	Wire Assembly, Icemaker
17	MAY 2257538
18	MAY W10139195
19	MAY W10122527
20	MAY 626683
21	Cup, Fill
22	MAY 627843
23	MAY 2182124
24	Support & Motor Assembly
25	MAY 2315522
26	Thermostat (Also Order 542369 Cement Alumilastic)
27	MAY 8533917
28	MAY 2320559
29	MAY 489276
30	Module Assembly (Includes Items 23 and 24)
100	MAY W10190971
101	MAY W10160031
