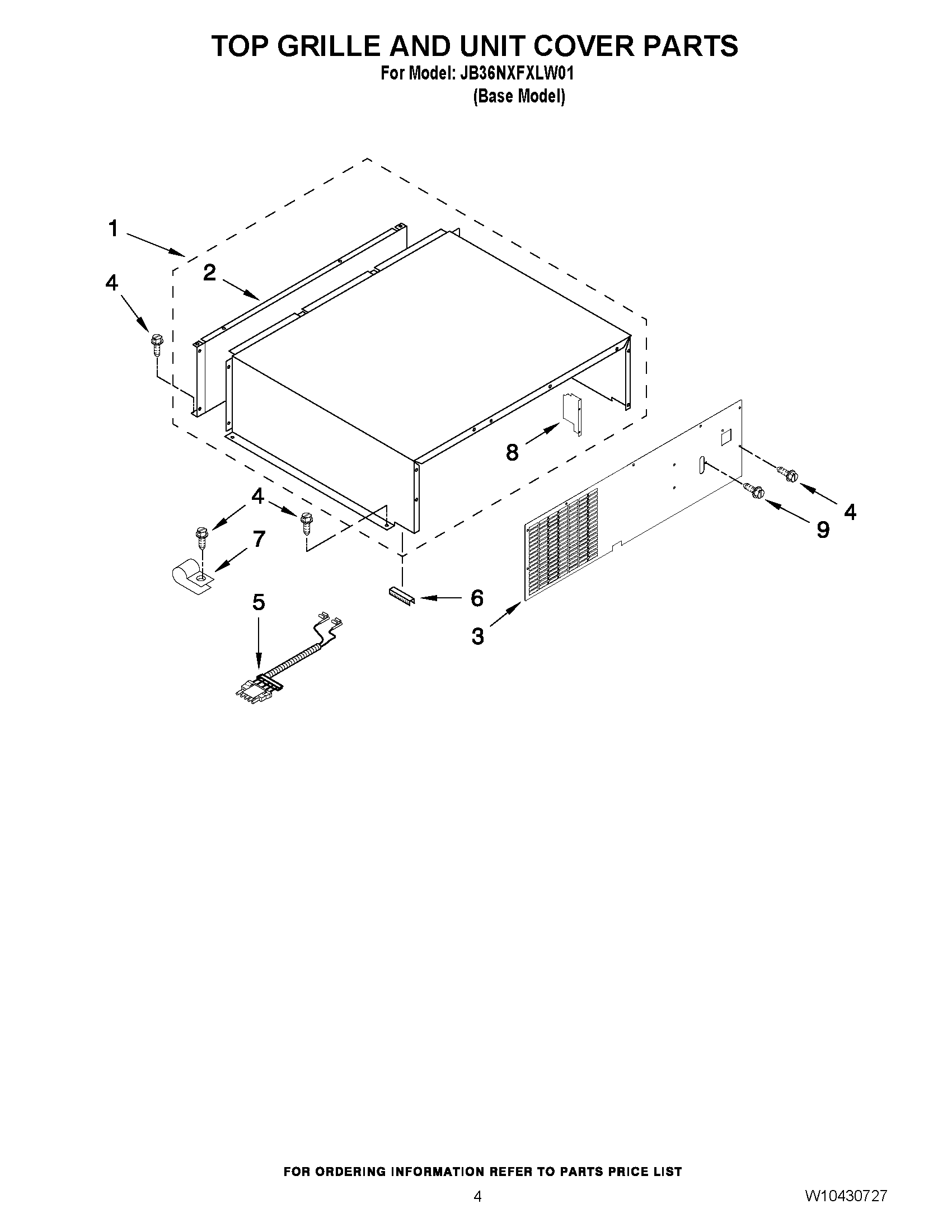

JB36NXFXLW01 03 – TOP GRILLE AND UNIT COVER PARTS
Written by
in
JB36NXFXLW01 03 – TOP GRILLE AND UNIT COVER PARTS
Products
| Position | Product |
|---|---|
| 1 | COVER, UNIT ASSEMBLY |
| 2 | Back Panel |
| 3 | COVER, UNIT FRONT |
| 4 | Screw |
| 5 | WIRE ASSEMBLY LIGHT SWITCH (LEFT) |
| 6 | GROMMET |
| 7 | MAY 489348 |
| 8 | MAY W10251186 |
| 9 | MAY 1157158 |
