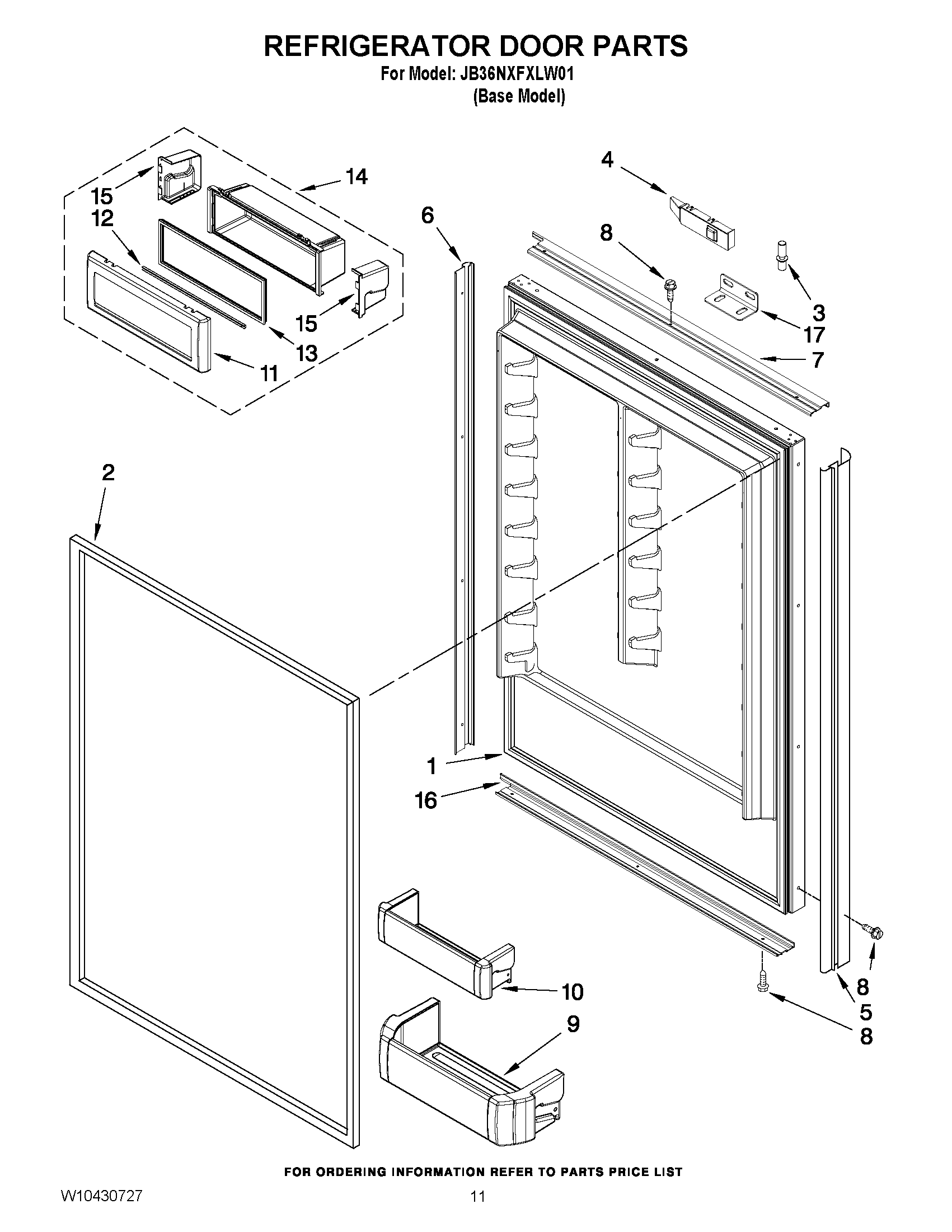

JB36NXFXLW01 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR (INCLUDES ITEM 2) (LEFT)
2	Gasket, Door
3	Pin-Door, Top
4	INSERT-DOOR, ARM (TOP)
4	INSERT-DOOR, ARM (BOTTOM)
5	TRIM DOOR (LEFT)
6	MAY W10202602
7	TRIM-DOOR, TOP (LEFT)
8	SCREW 10-32 X 1/2
9	MAY W10323749
10	BIN, DOOR
11	LID, UTILITY
12	RAIL, UTILITY
13	GASKET, BIN UTILITY
14	MAY W10323044
15	END CAP (LEFT HAND)
15	END CAP (RIGHT HAND)
16	TRIM-DOOR, BOTTOM (LEFT)
17	MAY W10199955
