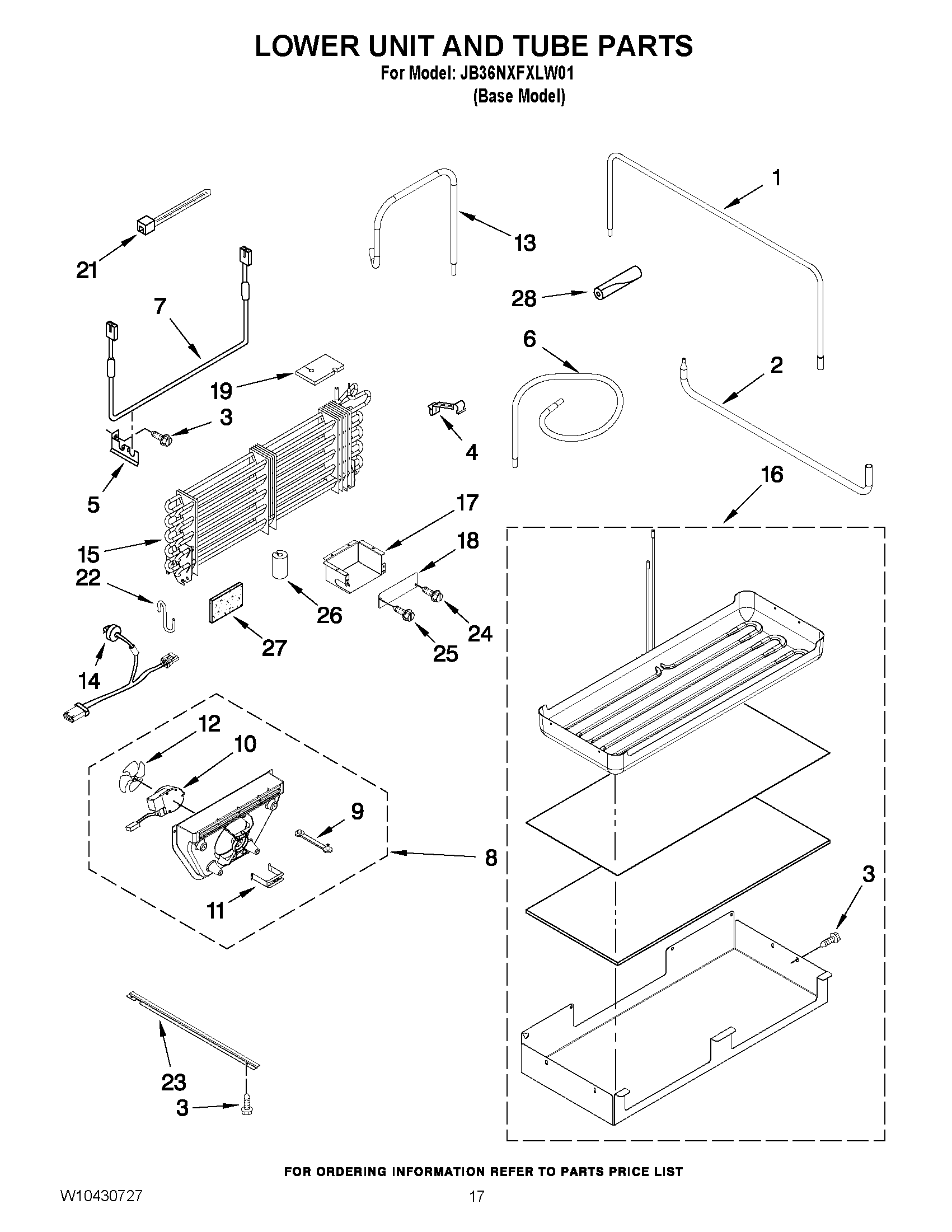

JB36NXFXLW01 10 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1TUBE, TRANSITION (CONDENSER/DRAIN PAN)
2TUBE, CONNECT (DRIER/RESTRICTOR)
3SCREW 8-15 X .813
4MAY 2307944
5MAY 2307945
6TUBE, OIL TRAP SUCTION
7MAY 2268393
8MAY 2306178
9Grommet
10MAY 2259385
11MAY 2223733
12Blade, Fan (Evaporator)
13TUBE, DISCHARGE ASSEMBLY
14MAY W10139165
15EVAPORATOR ASSEMBLY
16MAY W10281063
17COVER, BOX
18MAY W10153595
19MAY 2306180
21MAY 2155774
22MAY 2317920
23MAY 2320554
24MAY W10001250
25Screw
26GROMMET, CONDENSER
27INSULATION
28MAY W10405530
