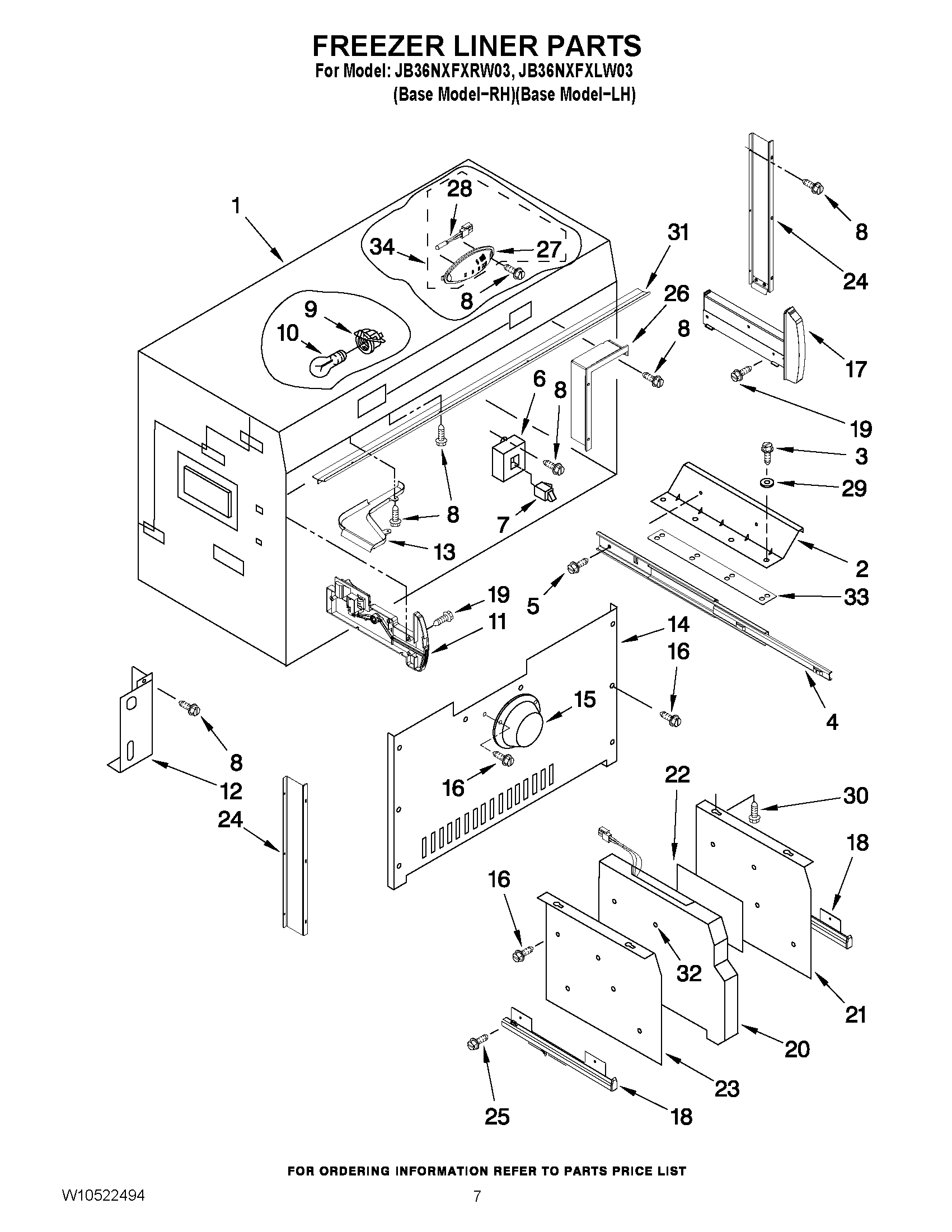

JB36NXFXLW03 05 – FREEZER LINER PARTS

JB36NXFXLW03 05 – FREEZER LINER PARTS

Written by

in

JB36NXFXLW03 05 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10423553
3MAY W10061370
4MAY W10423551
5Screw (Right Side- (8-18 x 1.375))
6COVER, SWITCH
7SWITCH, LIGHT
8SCREW 8-15 X .813
9MAY W10191429
10Bulb, Light
11MAY W10321131
12MAY 2306187
13MAY 2317006
14MAY 2268380
15COVER, FAN
16SCREW
17MAY 2306106
18MAY 2306117
18MAY 2306116
20DIVIDER, FREEZER BINS
21SUPPORT, SLIDE (RIGHT HAND)
22MAY 2317927
23SUPPORT, SLIDE (LEFT HAND)
24BRACKET, EVAPORATOR COVER (LEFT HAND)
24BRACKET, EVAPORATOR COVER (RIGHT HAND)
25MAY 488163
26MAY W10121940
27MAY 2317105
28MAY 2188820
29MAY W10075920
30Screw
31AIR DEFLECTOR ASSEMBLY
32MAY 2198643
33SHIM,BRACKET SLIDE
34ASSEMBLY, THERMISTOR
