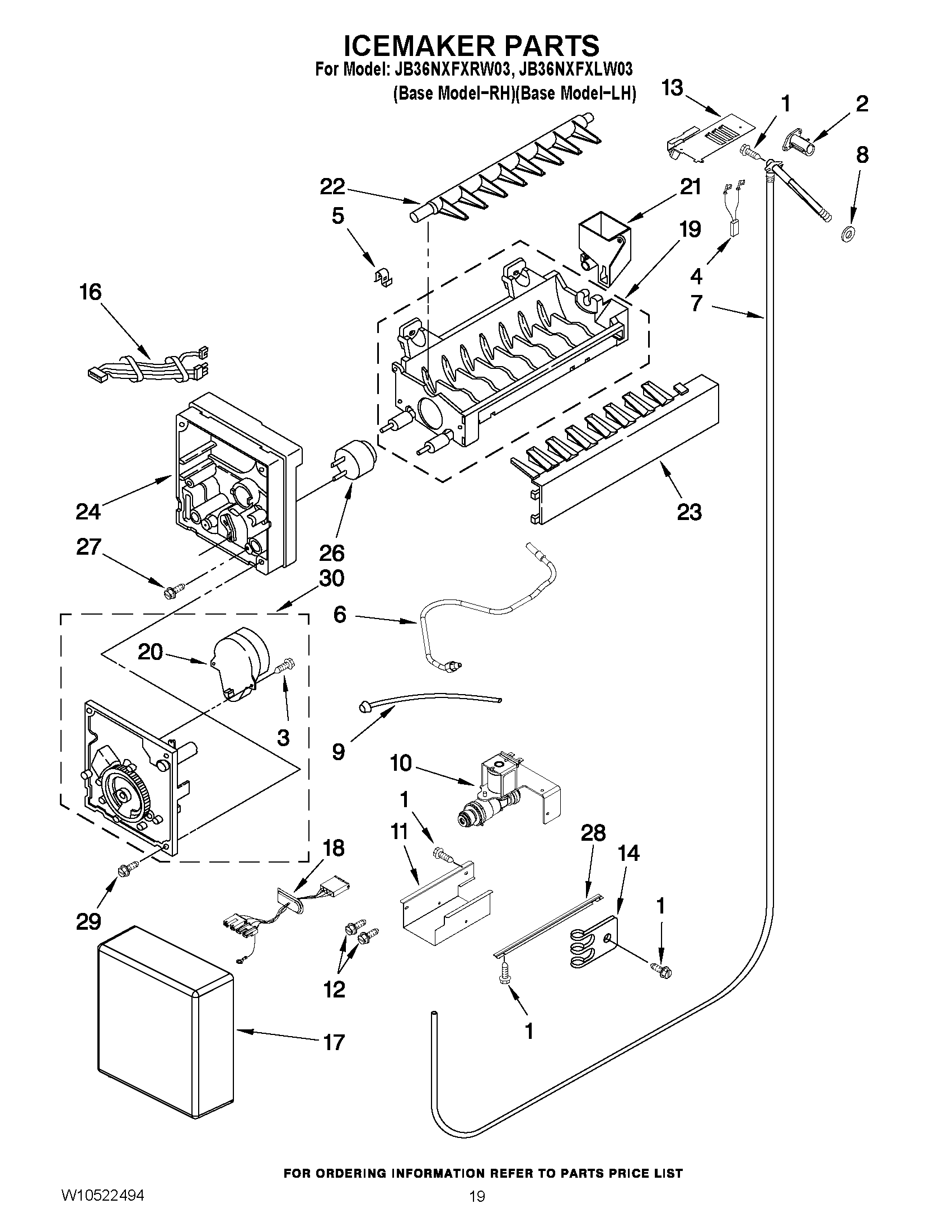

JB36NXFXLW03 11 – ICEMAKER PARTS

Products

Position	Product
NI	ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
NI	BLOCK, INSTALL TEMPLATE, WOOD PANELS
NI	ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
NI	MAY W10222283
NI	MAY W10489178
NI	MAY W10488115
NI	TEMPLATE, WOOD PANELS BM (RIGHT)
NI	MAY REFDEODOR
NI	ACCESSORY PARTS, CLEANER, STAINLESS STEEL
NI	MAY W10249830
1	SCREW 8-15 X .813
2	MAY 2221240
3	MAY 489136
4	Jumper, Fill Tube Heater
5	Clip
6	MAY W10296807
7	MAY 2317847
8	Seal
9	MAY W10437853
10	MAY 2307650
11	MAY W10129653
12	MAY W10001250
13	MAY 2221231
14	Clip, Tube
16	Wire Assembly, Icemaker
17	COVER
18	MAY W10279393
19	MAY W10122527
20	LINER (NOT A SERVICEABLE PART)
21	MAY W10435665
22	MAY 627843
23	ICE STRIPPER
24	MAY 2194712
26	Thermostat (Also Order 542369 Cement Alumilastic)
27	Screw (2)
28	MAY 2320559
29	MAY 489276
30	Module Assembly (Includes Items 23 and 24)
100	MAY W10277450
