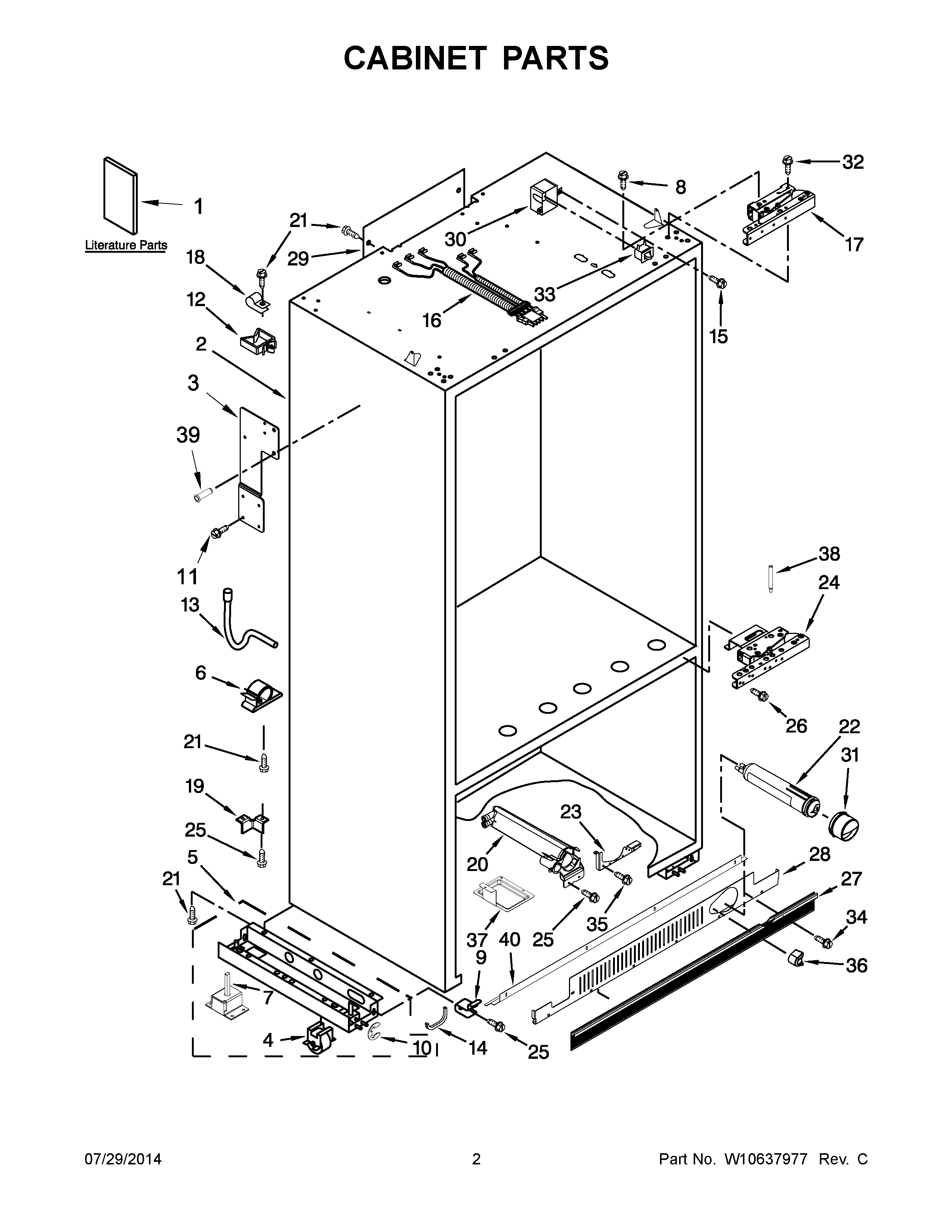

JB36NXFXLW05 02 – CABINET PARTS

Products

Position	Product
1D	MAY 2317840
1B	MAY W10483326
1	MAY W10303991
1A	MAY W10246774
1C	MAY W10234145
1E	MAY W10379137
2	LINER (NOT A SERVICEABLE PART)
3	SUPPORT, GRILLE (RH)
3A	SUPPORT, GRILLE (LH)
4	MAY W10138054
5A	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
5	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
6	CLIP
7	LEVELER ASSY
9	Mounting Stud, Grille
10	Ring, Retainer
12	Wire Clip (5)
13	MAY 2314064
14	GROMMET, CROSSOVERTUBE
15	Screw
16	MAY W10209506
16A	WIRE ASSEMBLY LIGHT SWITCH (LEFT)
17	Hinge (Top) (RC)
17A	Hinge (Top) (FC)
18	MAY W10331955
19	Bracket, Support Base (Rear) (2)
20	MAY W10121140
21	SCREW 8-15 X .813
22	Filter, Water
23	MAY W10674648
24	MAY W10136731
25	MAY W10001250
26	SCREW 10-32 X 1/2
27	MAY W10188547
28	MAY W10189196
29	MAY W10426957
30	COVER, SWITCH (RH)
30A	COVER, SWITCH (LH)
31	MAY 2260518B
32	Screw 1/4-20 x 5/8
33	MAY W10656773
34	MAY W10005050
35	Screw
36	Button, Filter (Black)
37	Tray, Drip Filter
38	Pin-Stop, Door
39	Nutsert (4)
40	MAY W10250961
