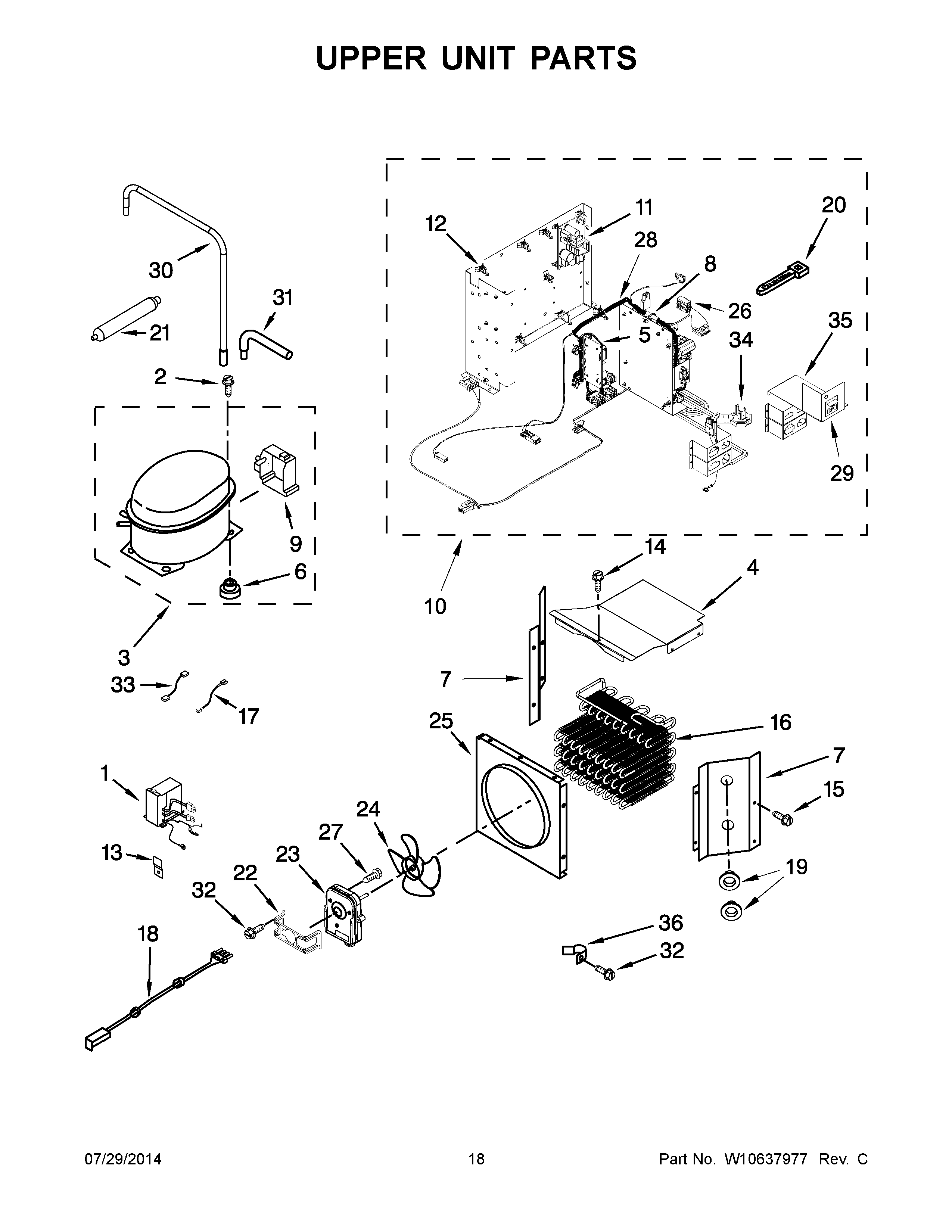

JB36NXFXLW05 10 – UPPER UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2“)
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
1	MAY W10449006
2	MAY 489373
3	COMPRESSOR
4	TOP COVER, CONDENSER
5	Control-Elek, Controls
6	Grommet (Production)
7	MAY W10525179
7A	MAY W10525177
8	Control-Elek, I/O
9	MAY 2215676
10	MAY W10528459
11	CONTROL, ELECTRONIC
12	Spacer (5)
13	Bracket, Inverter Box
14	Screw
15	MAY 1157158
16	MAY W10591457
17	MAY W10495645
18	MAY 2310207
19	MAY W10587113
20	MAY 2155774
21	MAY W10175593
22	BRACKET, FAN MOTOR (CONDENSER FAN)
23	MAY 2188875
24	MAY W10139483
25	MAY W10415670
26	Wiring Harness, AC
27	MAY W10146359
28	Wiring Harness, DC
29	Switch, Power Disconnect
30	MAY W10624944
31	MAY W10528578
32	SCREW
33	MAY W10483905
34	Service Cord
35	Bracket, Switch
36	MAY 549193
