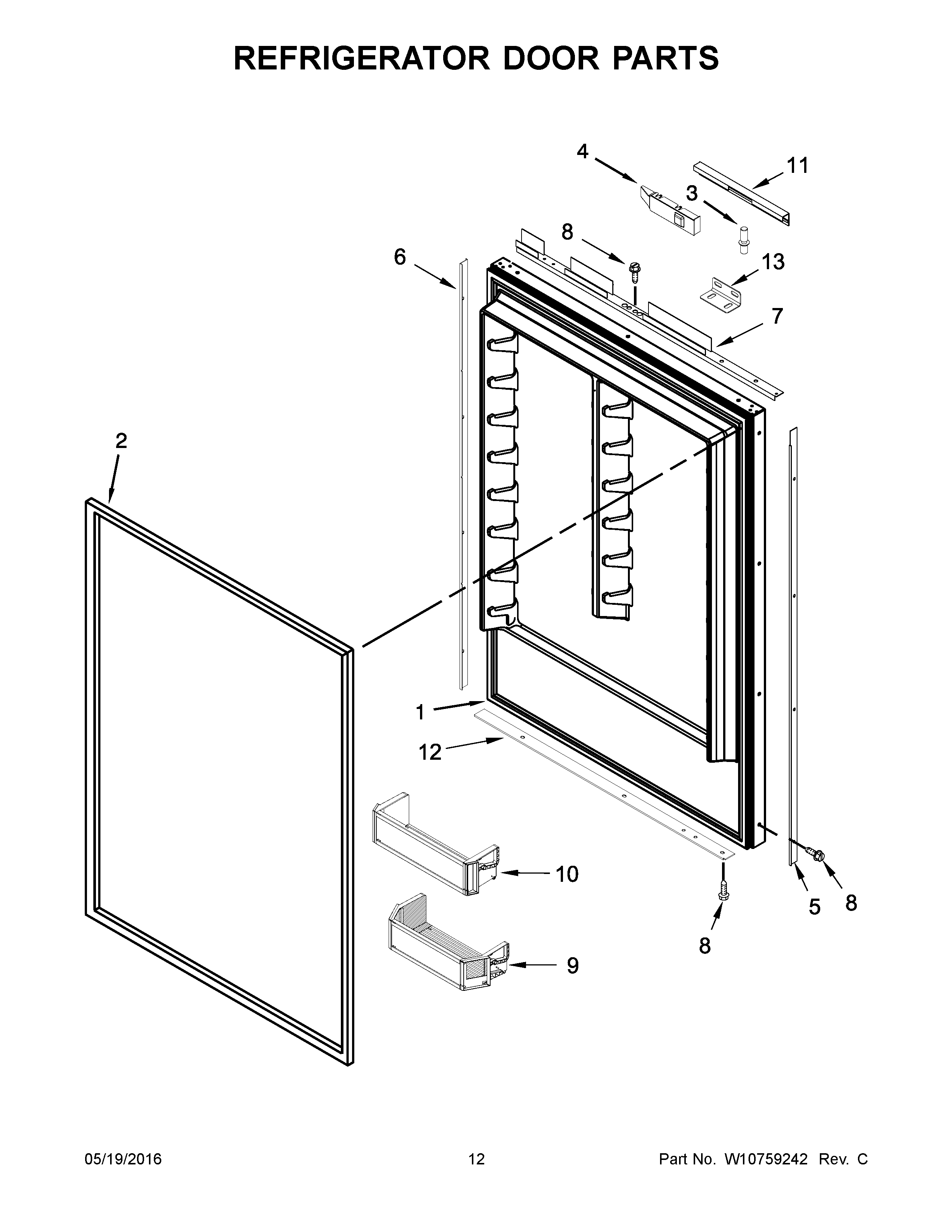

JB36NXFXRE00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
NIMAY W10772223
NILINER (NOT A SERVICEABLE PART)
1AMAY W10667904
1MAY W10613068
2MAY W10613072
3Pin-Door, Top
4INSERT, DOOR ARM TOP (GREY)
4AINSERT, DOOR ARM BOTTOM (GREY)
5AMAY W10648977
5MAY W10611106
6MAY W10613074
7MAY W10611104
7AMAY W10648973
8SCREW 10-32 X 1/2
9MAY W10594310
10BIN, SHALLOW
11MAY W10611107
11AMAY W10648975
12MAY W10611105
12AMAY W10648982
13BRACKET, PANEL MOUNTING (GREY)
