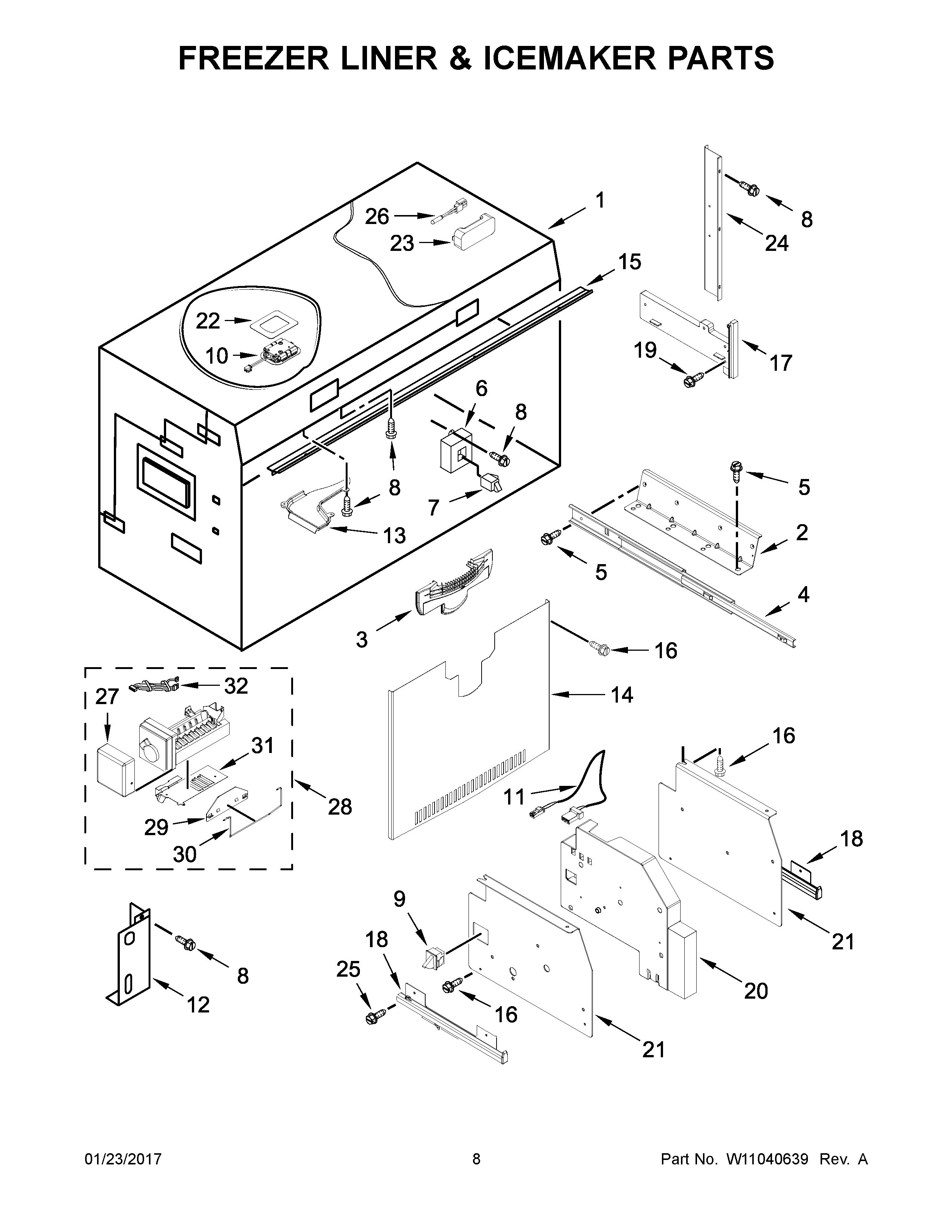

JB36NXFXRE01 05 – FREEZER LINER & ICEMAKER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10744327
3	MAY W10541687
4	MAY W10423551
5	MAY W10061370
6	MAY W10606833
7	MAY W10565415
8	SCREW
9	MAY W10565413
10	ASSEMBLY, LED MODULE
11	MAY W10568445
12	MAY 2306187
13	MAY W10552980
14	MAY W10636533
15	MAY W10710400
16	MAY W10001160
17A	MAY W10664383
17	MAY W10664385
18	MAY 2306117
18A	MAY 2306116
20	MAY W10647421
21A	MAY W10600626
21	MAY W10600630
22	MAY W10672548
23	MAY W10609678
24	MAY W10538780
25	MAY 488163
26	MAY W10280386
27	COVER
28	MAY W10645968
29	EXTENSION-SHUT OFF ARM
30	ARM, SHUT OFF
31	MAY 2221231
32	WIRE ASSEMBLY, ICE MAKER
