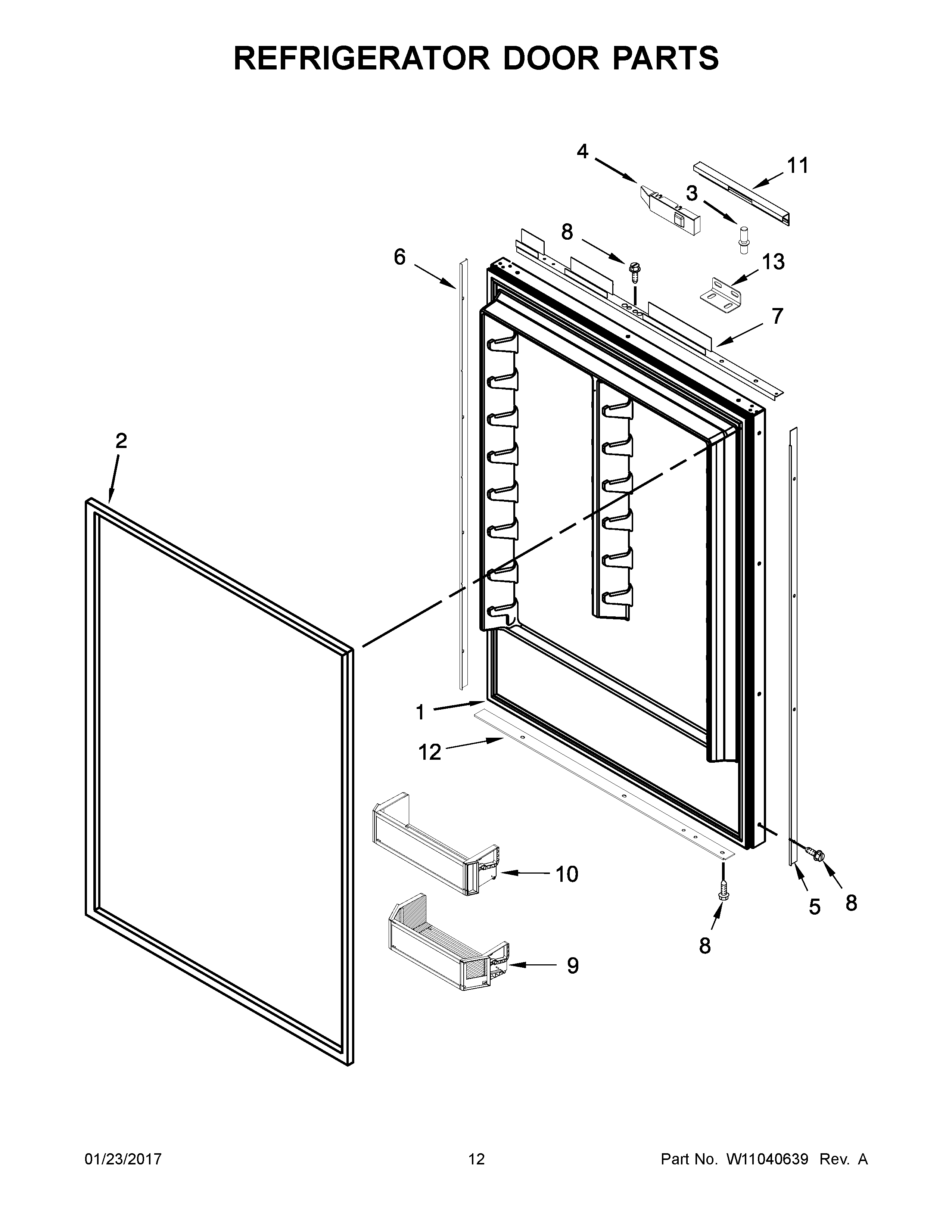

JB36NXFXRE01 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
NI	MAY W10772223
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10667904
2	MAY W10613072
3	Pin-Door, Top
4A	INSERT, DOOR ARM BOTTOM (GREY)
4	INSERT, DOOR ARM TOP (GREY)
5	MAY W10648977
6	MAY W10613074
7	MAY W10648973
8	SCREW 10-32 X 1/2
9	MAY W10594310
10	BIN, SHALLOW
11	MAY W10648975
12	MAY W10648982
13	BRACKET, PANEL MOUNTING (GREY)
