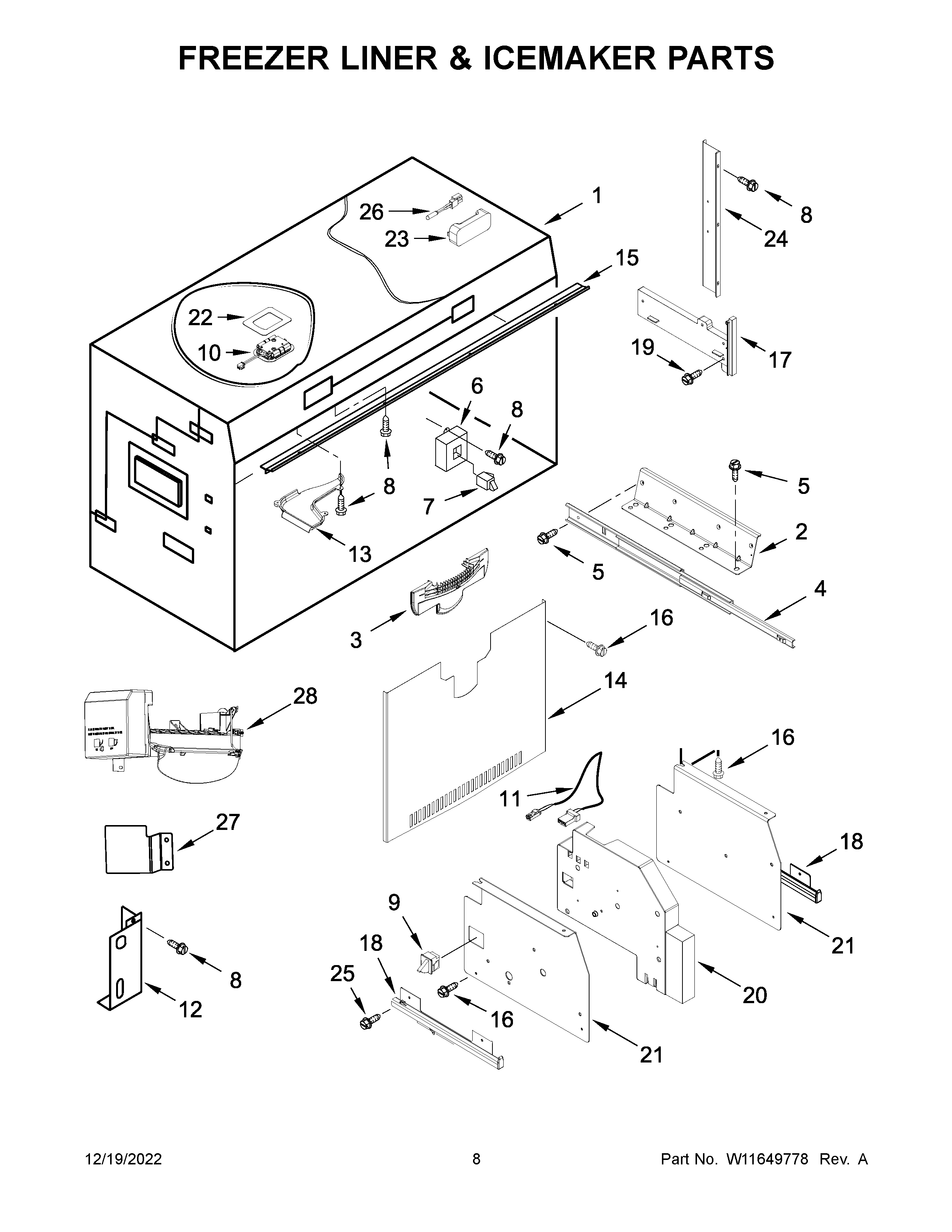

JB36NXFXRE05 05 – FREEZER LINER & ICEMAKER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10744327 Whirlpool Refrigerator Support
3	W10541687 Whirlpool Grille Assembly
4	W11650036 Whirlpool Slide
5	Screw
6	W10606833 Whirlpool Cover
7	W11670534 Whirlpool Refrigerator Switch
8	W11624204 Whirlpool Screw
9	W11289496 Whirlpool Refrigerator Switch
10	W11484836 Whirlpool Refrigerator Module
11	W10568445 Whirlpool Refrigerator Jumper Wire
12	COVER, ICEMAKER WIRING
13	DUCT, AIR FLOW
14	COVER, EVAPORATOR (CHARCOAL SPARKLE)
15	W10710400 Whirlpool Refrigerator Deflector
16	WPW10001160 Whirlpool Refrigerator Screw
17A	W10664383 Whirlpool Refrigerator Track
17	W10664385 Whirlpool Refrigerator Track
18A	2306116 Whirlpool Refrigerator Slide
18	2306117 Whirlpool Refrigerator Slide
20	W10647421 Whirlpool Refrigerator Divider
21A	SUPPORT, SLIDE (RIGHT HAND)
21	W10600630 Whirlpool Refrigerator Support
22	W10672548 Whirlpool Refrigerator Shim
23	W10609678 Whirlpool Refrigerator Cover
24	ASSEMBLY, EVAPORATOR COVER RAIL
25	WP488163 Whirlpool Refrigerator Screw
26	THERMISTOR
27	EXTENSION, ICEMAKER WIRING COVER
28	ICEMAKER
