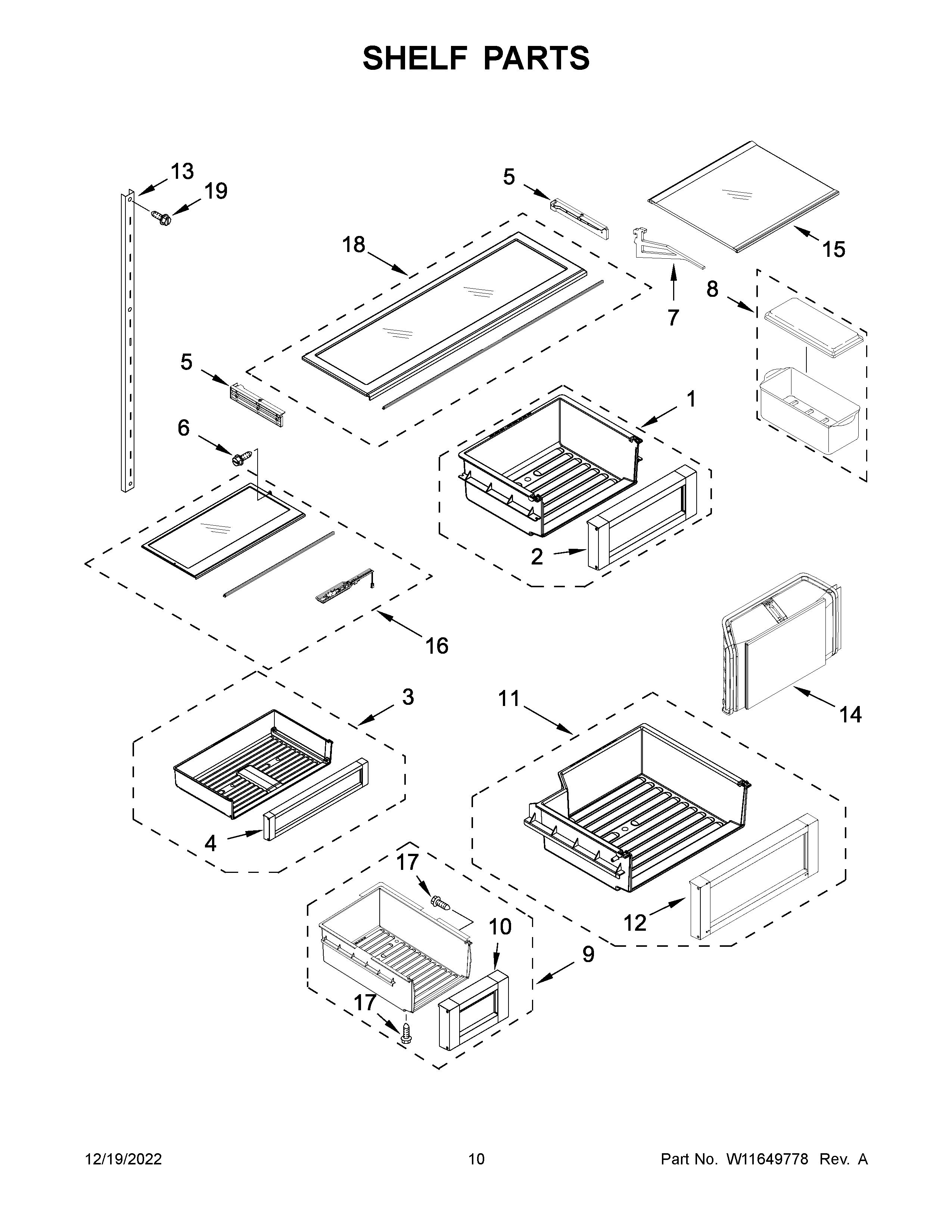

JB36NXFXRE05 06 – SHELF PARTS

JB36NXFXRE05 06 – SHELF PARTS

Written by

in

JB36NXFXRE05 06 – SHELF PARTS

Products

PositionProduct
1W10529500 Whirlpool Refrigerator Crisper Pan
2W10529477 Whirlpool Refrigerator Front Panel
3W10529502 Whirlpool Refrigerator Crisper Pan
4W10529485 Whirlpool Refrigerator Front Panel
5ASUPPORT, CRISPER COVER RIGHT HAND (GREY)
5W10569842 Whirlpool Refrigerator Support Assembly
6W10531302 Whirlpool Refrigerator Screw
7W11690161 Whirlpool Support
8Egg Bin Assembly
9W10626679 Whirlpool Refrigerator Ice Pan
10W10626676 Whirlpool Refrigerator Front Panel
11ASSEMBLY, FREEZER PAN
12ASSEMBLY, FREEZER PAN (FRONT)
13LADDER, SHELF LEFT HAND (GREY)
13ALADDER, SHELF RIGHT HAND (GREY)
13BLADDER, SHELF CENTER (GREY)
14W10826105 Whirlpool Refrigerator Pro Service
15WPW10198700 Whirlpool Refrigerator Glass Shelf
16WPW10569933 Whirlpool Glass Shelf
17WP488787 Whirlpool Refrigerator Screw
18WPW10569936 Whirlpool Glass Shelf
19SCREW
