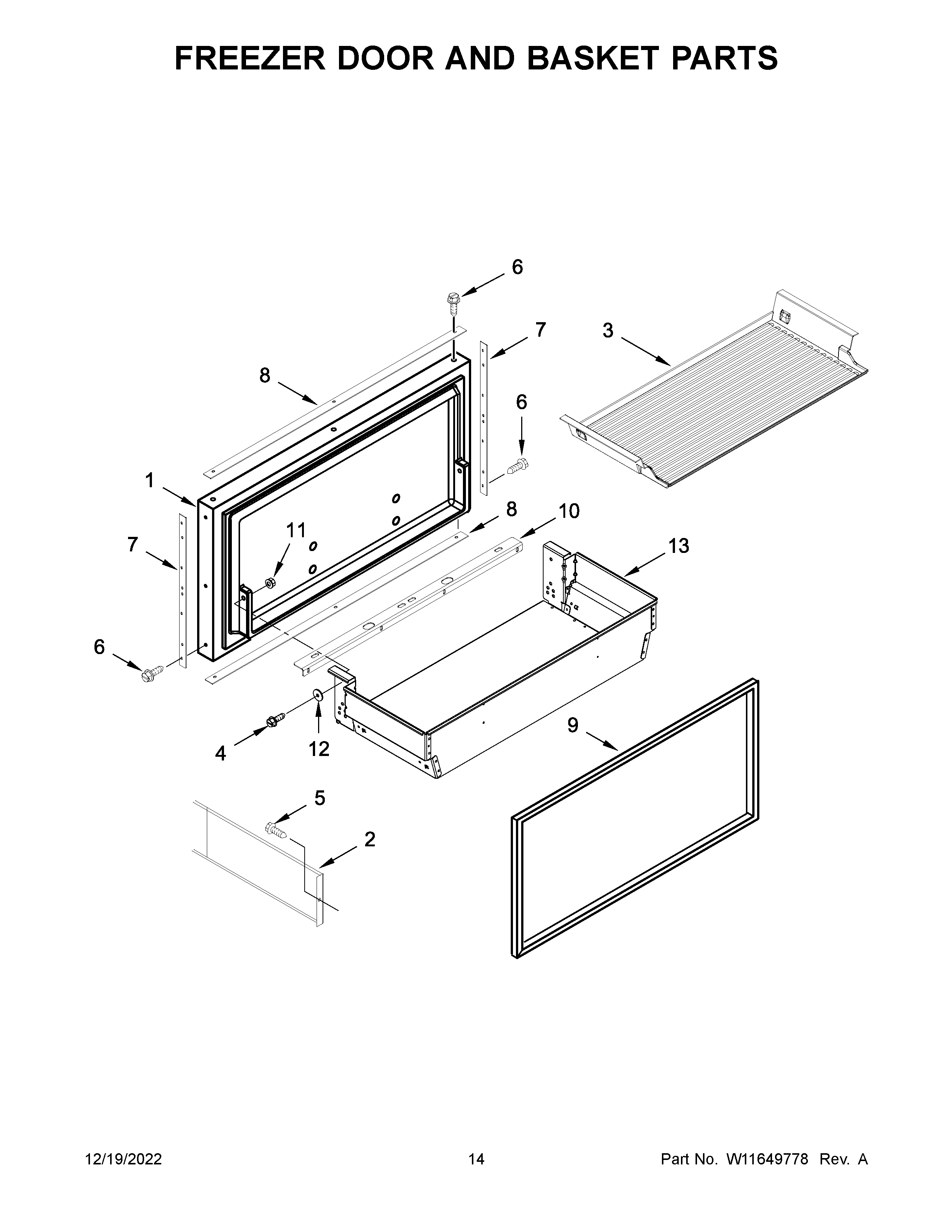

JB36NXFXRE05 08 – FREEZER DOOR AND BASKET PARTS

JB36NXFXRE05 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

JB36NXFXRE05 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1W10782355 Whirlpool Refrigerator Door Assembly
2DIVIDER, BASKET (GREY)
3W10665412 Whirlpool Mat
4W10761334 Whirlpool Screw Assembly
5W10678208 Whirlpool Screw
6W10851443 Whirlpool Refrigerator Screw
7W10611111 Whirlpool Refrigerator Door Trim
8W10611110 Whirlpool Refrigerator Door Trim
9W11625088 Whirlpool Refrigerator FIP Gasket
10W11256496 Whirlpool Refrigerator Bracket
11NUT
12WASHER
13W10774209 Whirlpool Refrigerator Freezer Basket
