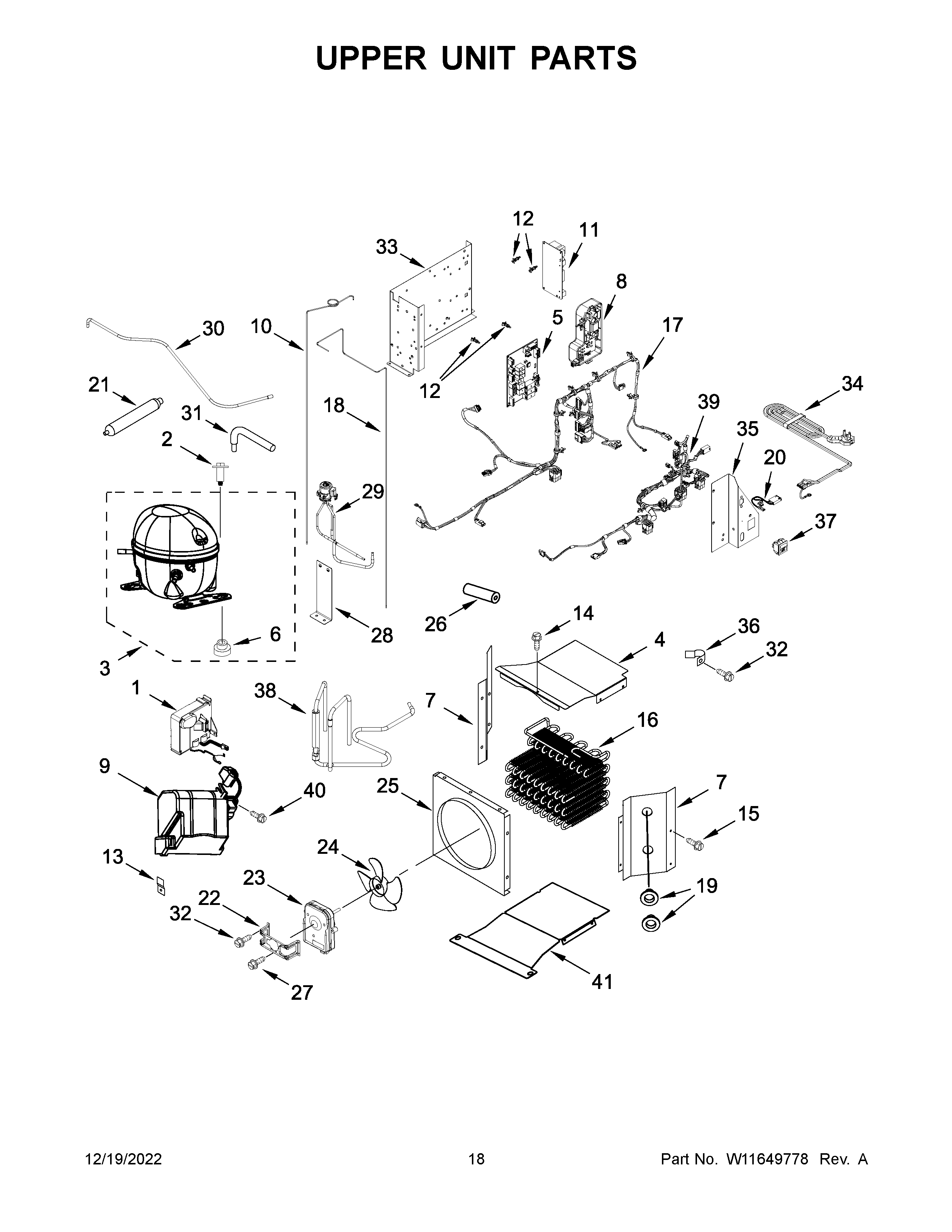

JB36NXFXRE05 10 – UPPER UNIT PARTS

JB36NXFXRE05 10 – UPPER UNIT PARTS

Written by

in

JB36NXFXRE05 10 – UPPER UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1W11655239 Whirlpool Inverter Box
2SCREW
3W11557671 Whirlpool Refrigerator Compressor
4COVER, CONDENSER SUPPORT
5WPW10739408-includeCORE Whirlpool WPW10739408 Refrigerator Electronic Control Board + Core
6W11661108 Whirlpool Grommet
7ASUPPORT, CONDENSER (RIGHT HAND)
7SUPPORT, CONDENSER (LEFT HAND)
8W11368839 Whirlpool Refrigerator Inverter Box
9W11247667 Whirlpool Refrigerator Cover
10W11517121 Whirlpool Tube Assembly
11WPW10624574-includeCORE Whirlpool WPW10624574 Refrigerator Electronic Control Board + Core
12WP2203075 Whirlpool Refrigerator Spacer
132256328 Whirlpool Bracket Assembly
14WP965173 Whirlpool Dishwasher Screw
15WP489069 Whirlpool Compactor Screw
16CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)
17ASSEMBLY, HV WIRE
18TUBE, HEAT LOOP
19GROMMET
202310195 Whirlpool Refrigerator Wire Jumper
21W11109499 Whirlpool Refrigerator Tube
22W10414681 Whirlpool Bracket
23W11127829 Whirlpool Refrigerator Condenser Motor
24WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
25W10415670 Whirlpool Orifice
26SLEEVE
27WP8533993 Whirlpool Refrigerator Screw
28BRACKET, 3-WAY VALVE
29W11647768 Whirlpool Refrigerator Valve
30TUBE, CONDENSER/DRIER
31TUBE, PROCESS
32W11624204 Whirlpool Screw
33W10550831 Whirlpool Refrigerator Housing
342310196 Whirlpool Refrigerator Power Cord
35BRACKET, CONTROL ASSEMBLY
36W11234470 Whirlpool Refrigerator Clamp
37SWITCH, POWER DISCONNECT
38W11511844 Whirlpool Tube
39ASSEMBLY, LV WIRE
40WP9741232 Whirlpool Dishwasher Screw
41WPL W11443119
