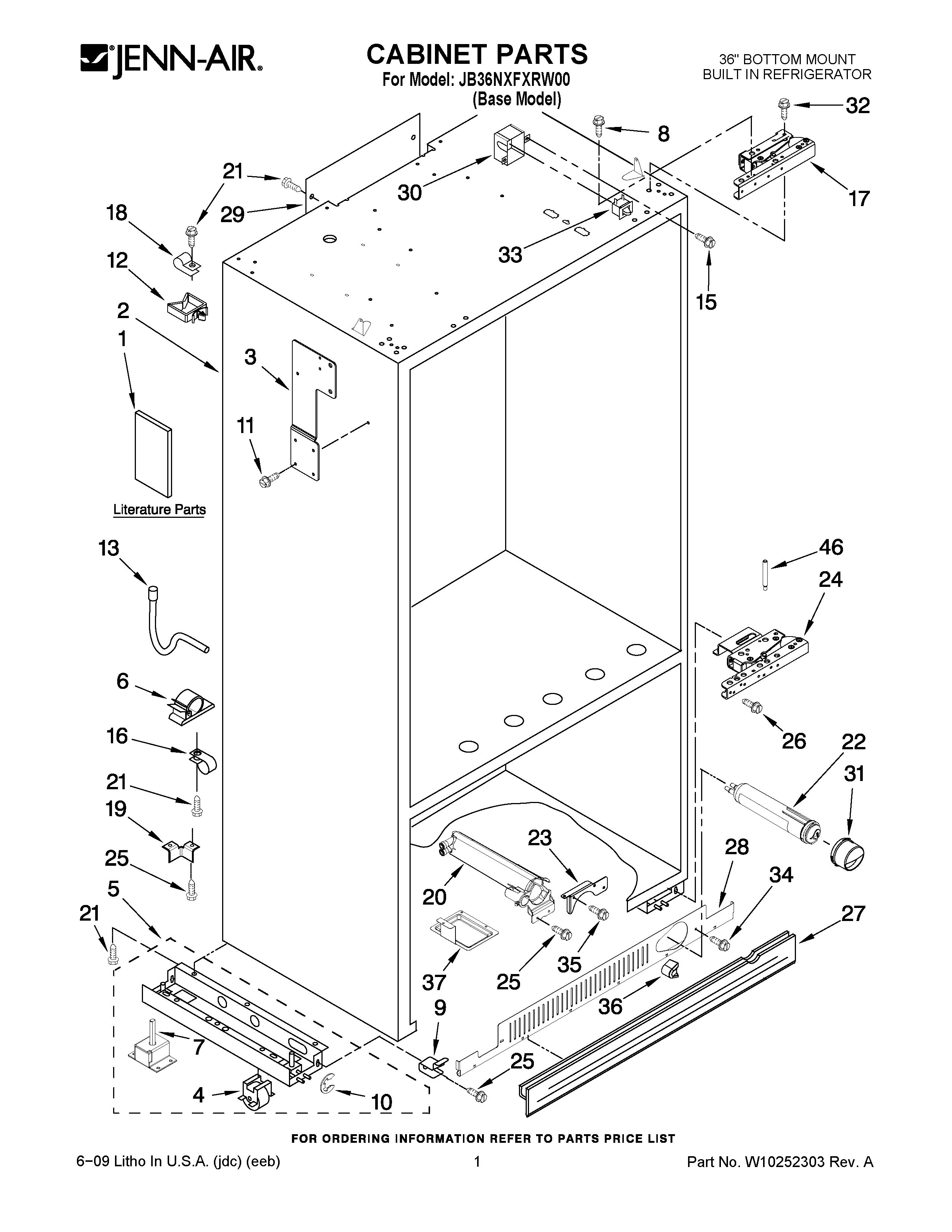

JB36NXFXRW00 01 – CABINET PARTS

JB36NXFXRW00 01 – CABINET PARTS

Written by

in

JB36NXFXRW00 01 – CABINET PARTS

Products

PositionProduct
1MAY W10231367
1MAY W10231365
1MAY 2317840
1MAY W10234136
1MAY W10246774
1MAY W10234145
2LINER (NOT A SERVICEABLE PART)
3SUPPORT, GRILLE (LH)
3SUPPORT, GRILLE (RH)
4MAY W10138054
5SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5Support, Leveler Assembly (Freezer Side)
6CLIP
7LEVELER ASSY
8MAY 8281164
9Mounting Stud, Grille
10Ring, Retainer
11MAY 2005921
12Wire Clip (5)
13MAY 2314064
15Screw
16Clamp, Nylon
17Hinge (Top) (RC)
18MAY 2221070
19Bracket, Support Base (Rear) (2)
20MAY 2260526
21SCREW
22MAY 4396841
23Bracket, Mount (Water Filter)
24MAY W10136731
25Screw (3)
26MAY 3400525
27MAY W10188547
28MAY W10189196
29Cover, Rear
30COVER, SWITCH (RH)
31MAY 2260518B
32Screw 1/4-20 x 5/8
33SWITCH, LIGHT
34MAY W10005050
35Screw
36Button, Filter (Black)
37Tray, Drip Filter
46Pin-Stop, Door
