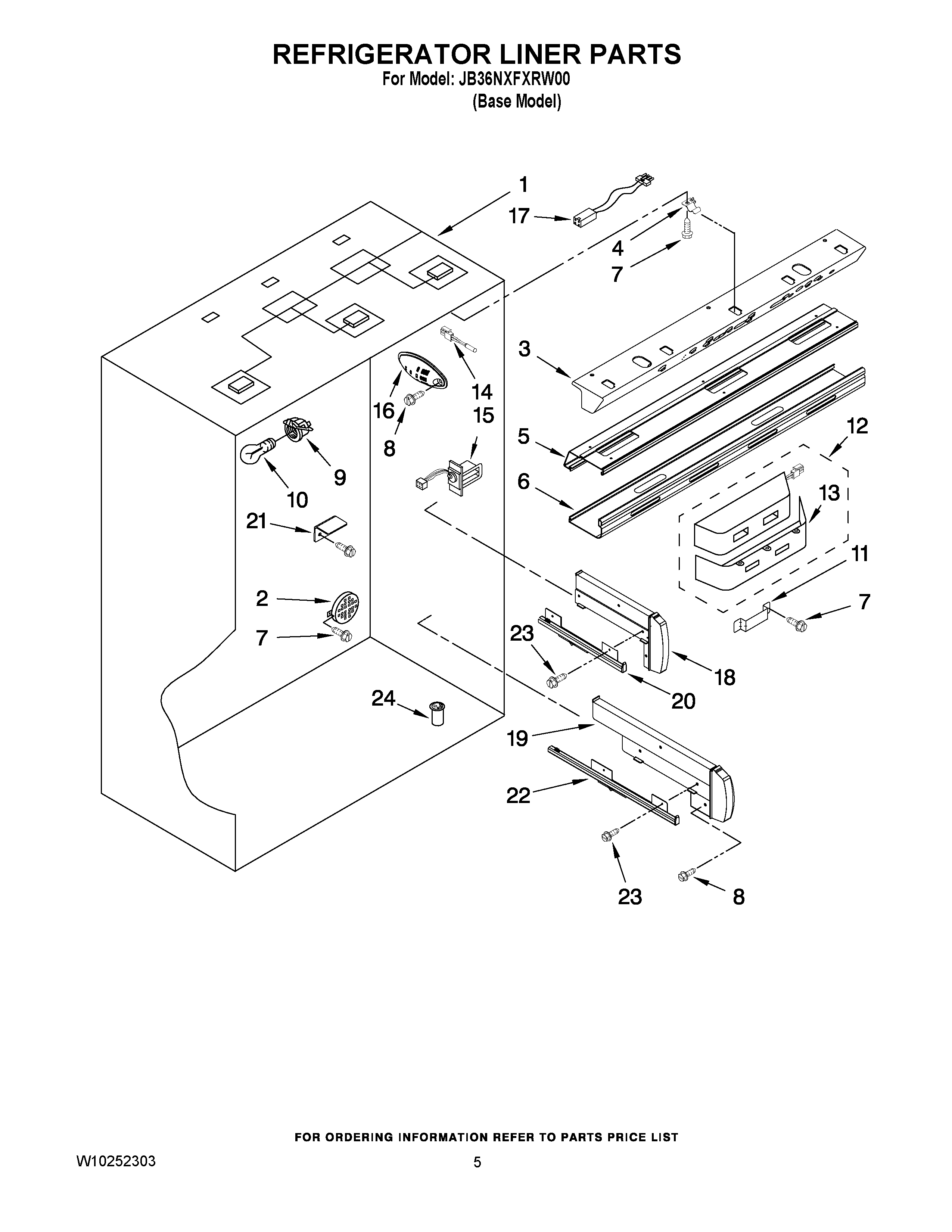

JB36NXFXRW00 04 – REFRIGERATOR LINER PARTS

JB36NXFXRW00 04 – REFRIGERATOR LINER PARTS

Written by

in

JB36NXFXRW00 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2317004
3MAY W10196640
4MAY 2317000
5MAY 2324970
6MAY 2309270
7SCREW
8MAY 488163
9MAY 2223857
10Bulb, Light
11MAY 2317917
12MAY 2320523
13Cover, Diffuser
14MAY 2188820
15Air Baffle Assembly
16MAY 2317105
17MAY W10209498
18SPACER, CRISPER (LEFT HAND)
18SPACER, CRISPER (RIGHT HAND)
19SPACER, DELI (RIGHT HAND)
19SPACER, DELI (LEFT HAND)
20Slide, Crisper (Right Vent)
20Slide, Crisper (Left)
21MAY 2302788
22Slide, Crisper (Left Side)
22Slide, Crisper (Right Side)
23MAY W10001160
24Valve
