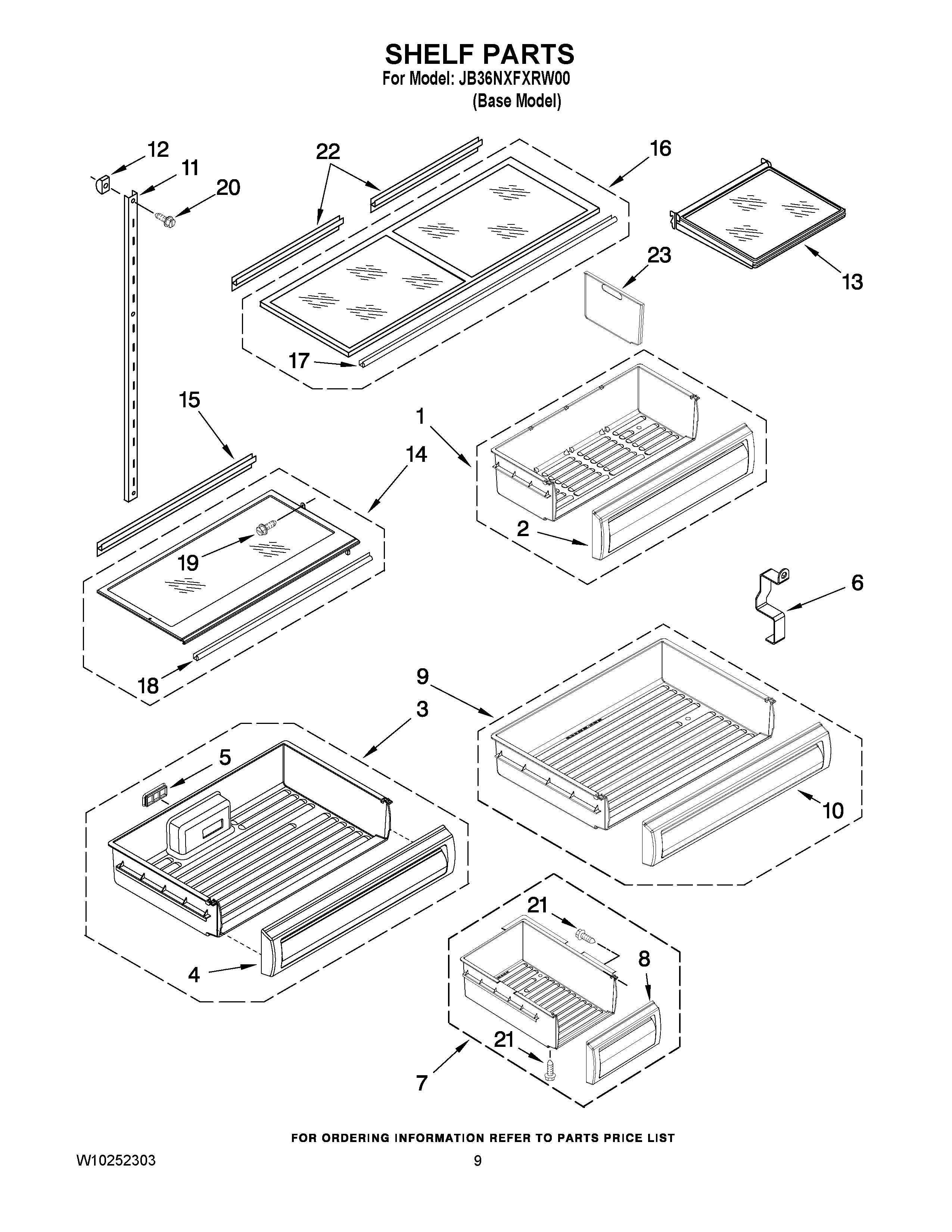

JB36NXFXRW00 06 – SHELF PARTS

Products

PositionProduct
1Crisper Pan Assembly (Includes 2)
2MAY 2256374
3MAY 2268397
4MAY 2257548
5DUCT, PAN
6CLIP, BIN (RIGHT HAND)
6CLIP, BIN (LEFT HAND)
7ASSEMBLY, ICE PAN
8Front, Ice Pan
9FREEZER PAN ASSEMBLY
10Front, Freezer Pan
11LADDER, SHELF (SIDE)
12LADDER, SHELF (CENTER)
13MAY W10198700
14MAY W10203635
15GASKET, REAR (DELI COVER)
16MAY W10183749
18GASKET, COVER FRONT
19MAY 8281251
20SCREW
21MAY 488886
22COVER, REAR GASKET
23DIVIDER, CRISPER
