JB36NXFXRW00 07 – REFRIGERATOR DOOR PARTS
Written by
in

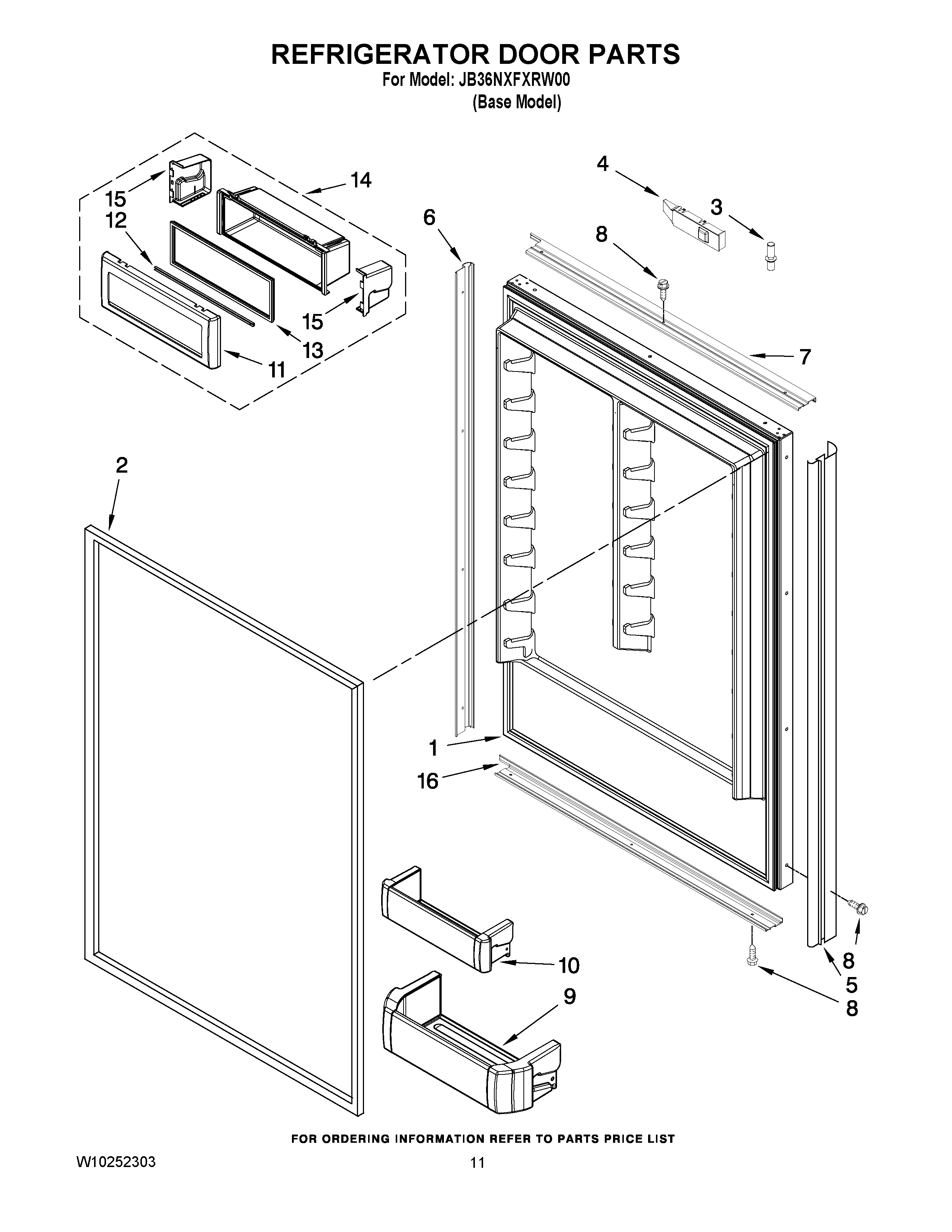

JB36NXFXRW00 07 – REFRIGERATOR DOOR PARTS
Products
Position
Product
1
MAY W10138410
2
Gasket, Door
3
Pin-Door, Top
4
INSERT-DOOR, ARM (TOP)
4
INSERT-DOOR, ARM (BOTTOM)
5
MAY W10202604
6
MAY W10202602
7
MAY W10167365
8
SCREW 10-32 X 1/2
9
MAY 2307975
10
Bin, Door (6)
11
LID, UTILITY
12
RAIL, UTILITY
13
GASKET, BIN UTILITY
14
MAY 2309252
15
End Cap (Left Side)
15
End Cap (Right Side)
16
MAY W10167371
←
