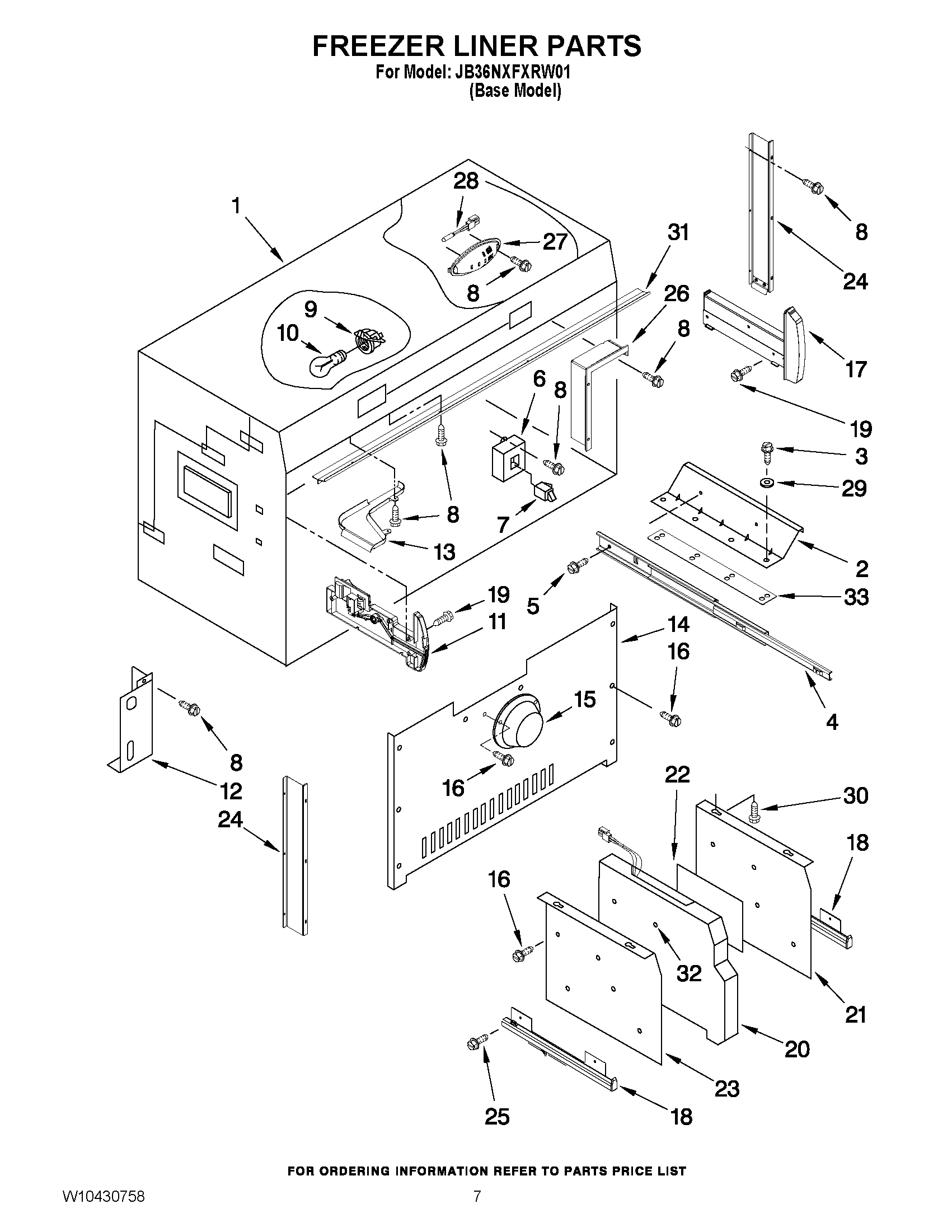

JB36NXFXRW01 05 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2306425
3	MAY W10061370
4	MAY 2320616
5	Screw (Right Side- (8-18 x 1.375))
6	COVER, SWITCH
7	SWITCH, LIGHT
8	SCREW 8-15 X .813
9	MAY 2223857
10	Bulb, Light
11	Switch Assembly, Icemaker (Includes Emitter)
12	MAY 2306187
13	MAY 2317006
14	MAY 2268380
15	COVER, FAN
16	SCREW
17	MAY 2306106
18	MAY 2306116
18	MAY 2306117
20	DIVIDER, FREEZER BINS
21	SUPPORT, SLIDE (RIGHT HAND)
22	MAY 2317927
23	SUPPORT, SLIDE (LEFT HAND)
24	BRACKET, EVAPORATOR COVER (LEFT HAND)
24	BRACKET, EVAPORATOR COVER (RIGHT HAND)
25	MAY 488163
26	MAY W10121940
27	MAY 2317105
28	MAY 2188820
29	MAY W10075920
30	Screw
31	AIR DEFLECTOR ASSEMBLY
32	MAY 2198643
33	SHIM,BRACKET SLIDE
