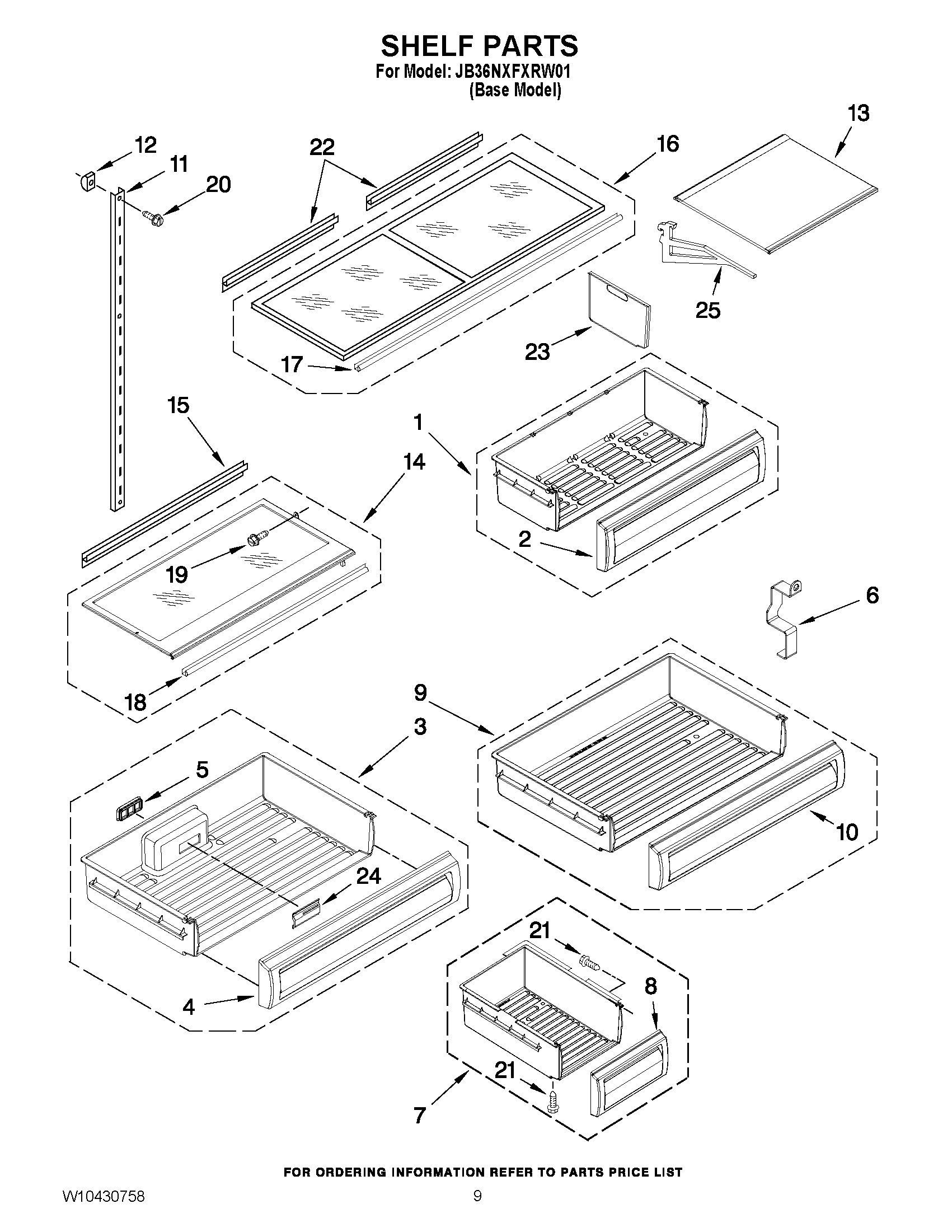

JB36NXFXRW01 06 – SHELF PARTS

Products

PositionProduct
1CRISPER PAN ASSEMBLY (INCLUDES ITEM 2)
2MAY 2256374
3DELI PAN ASSEMBLY
4MAY 2257548
5DUCT, PAN
6CLIP, BIN (RIGHT HAND)
6CLIP, BIN (LEFT HAND)
7ASSEMBLY, ICE PAN
8Front, Ice Pan
9FREEZER PAN ASSEMBLY
10Front, Freezer Pan
11LADDER, SHELF (SIDE)
12LADDER, SHELF (CENTER)
13MAY W10198700
14MAY W10203635
15GASKET, REAR (DELI COVER)
16MAY W10183749
18GASKET, COVER FRONT
19MAY W10141645
20SCREW
21MAY 488886
22COVER, REAR GASKET
23DIVIDER, CRISPER
24DEFLECTOR
25MAY W10187549
