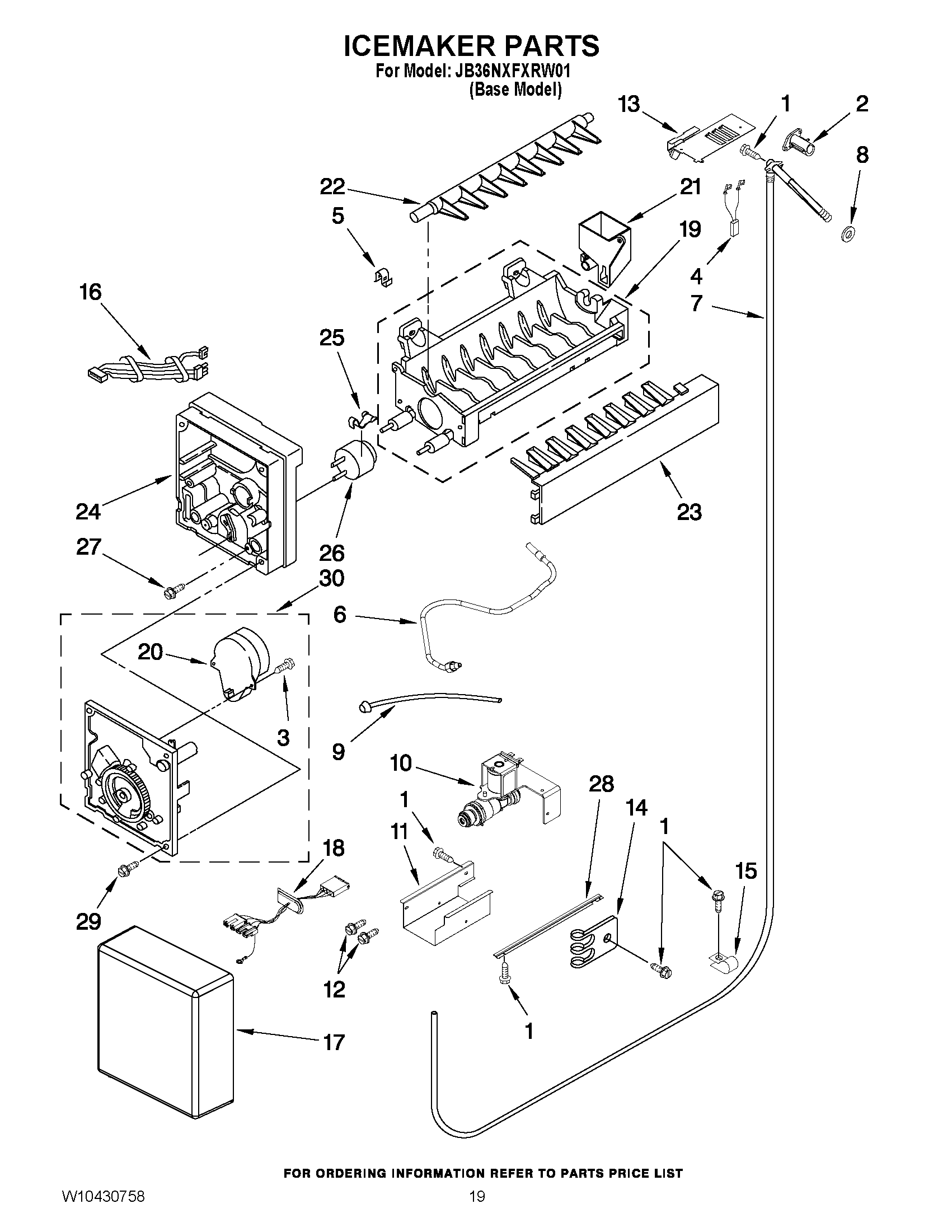

JB36NXFXRW01 11 – ICEMAKER PARTS

Products

Position	Product
NI	ACCESSORY PARTS, CLEANER, STAINLESS STEEL
NI	TEMPLATE, WOOD PANELS BM (RIGHT)
NI	MAY W10249830
NI	BLOCK, INSTALL TEMPLATE, WOOD PANELS
NI	MAY W10222283
1	SCREW 8-15 X .813
2	MAY 2221240
3	MAY 489136
4	Jumper, Fill Tube Heater
5	Clip
6	MAY W10296807
7	MAY 2317847
8	Seal
9	MAY 2317912
10	MAY 2307650
11	MAY W10129653
12	MAY W10001250
13	MAY 2221231
14	Clip, Tube
15	MAY 489348
16	Wire Assembly, Icemaker
17	COVER
18	MAY W10279393
19	MAY W10122527
20	MAY 626683
21	MAY W10122561
22	MAY 627843
23	ICE STRIPPER
24	MAY 2194712
25	MAY 2315522
26	Thermostat (Also Order 542369 Cement Alumilastic)
27	MAY 8533917
28	MAY 2320559
29	MAY 489276
30	Module Assembly (Includes Items 23 and 24)
100	MAY W10277450
