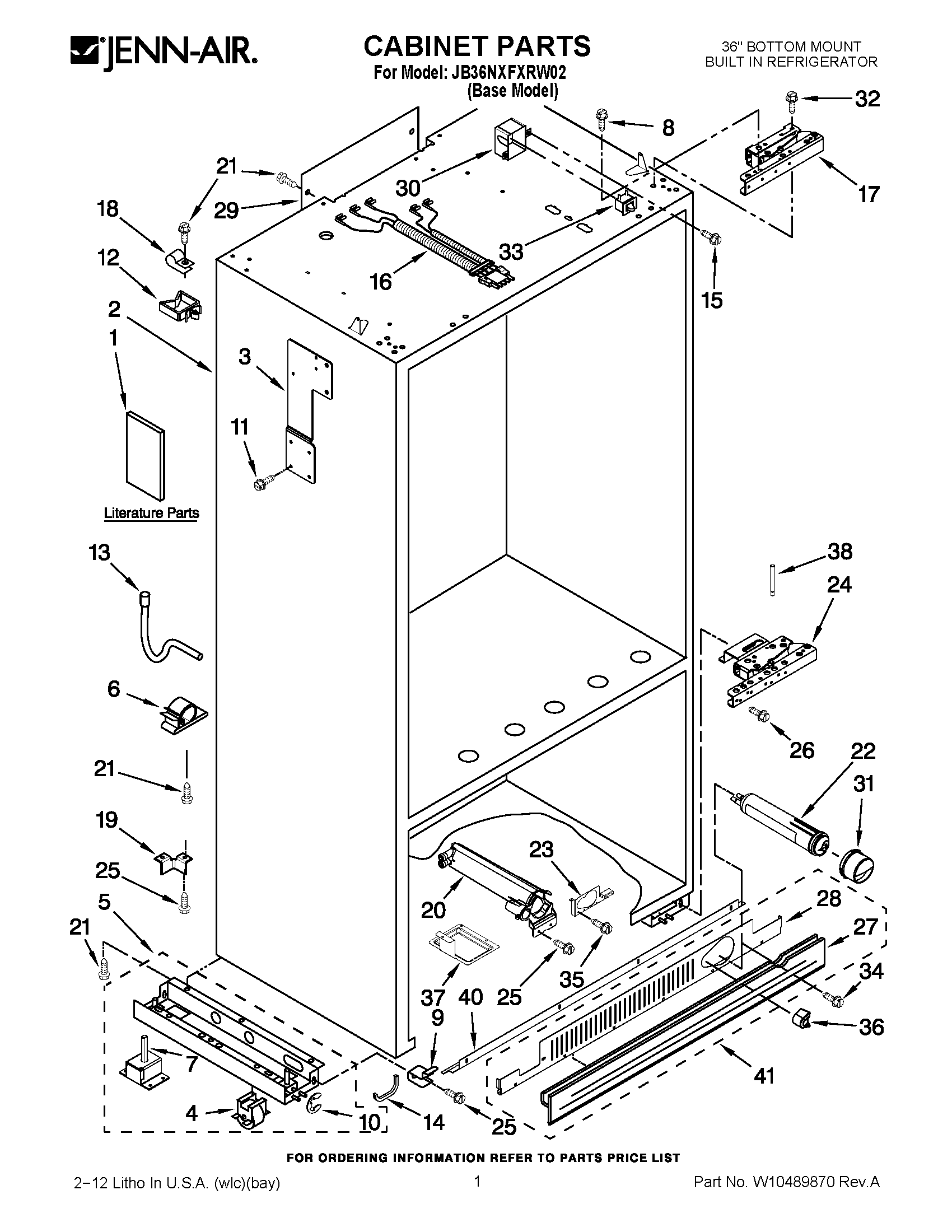

JB36NXFXRW02 01 – CABINET PARTS

Products

Position	Product
1	MAY 2317840
1	MAY W10234136
1	MAY W10379137
1	MAY W10303991
1	MAY W10246774
1	MAY W10234145
2	LINER (NOT A SERVICEABLE PART)
3	SUPPORT, GRILLE (RH)
3	SUPPORT, GRILLE (LH)
4	MAY W10138054
5	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
6	CLIP
7	LEVELER ASSY
9	Mounting Stud, Grille
10	Ring, Retainer
12	Wire Clip (5)
13	MAY 2314064
14	GROMMET, CROSSOVERTUBE
15	Screw
16	MAY W10209506
17	Hinge (Top) (RC)
18	MAY W10331955
19	Bracket, Support Base (Rear) (2)
20	MAY W10121140
21	SCREW 8-15 X .813
22	MAY 4396841
23	BRACKET, FILTER
24	MAY W10136731
25	MAY W10001250
26	SCREW 10-32 X 1/2
27	MAY W10188547
28	MAY W10189196
29	MAY W10426957
30	COVER, SWITCH (RH)
31	MAY 2260518B
32	Screw 1/4-20 x 5/8
33	SWITCH, LIGHT
34	MAY W10005050
35	Screw
36	Button, Filter (Black)
37	Tray, Drip Filter
38	Pin-Stop, Door
40	MAY W10250961
41	MAY W10188501
