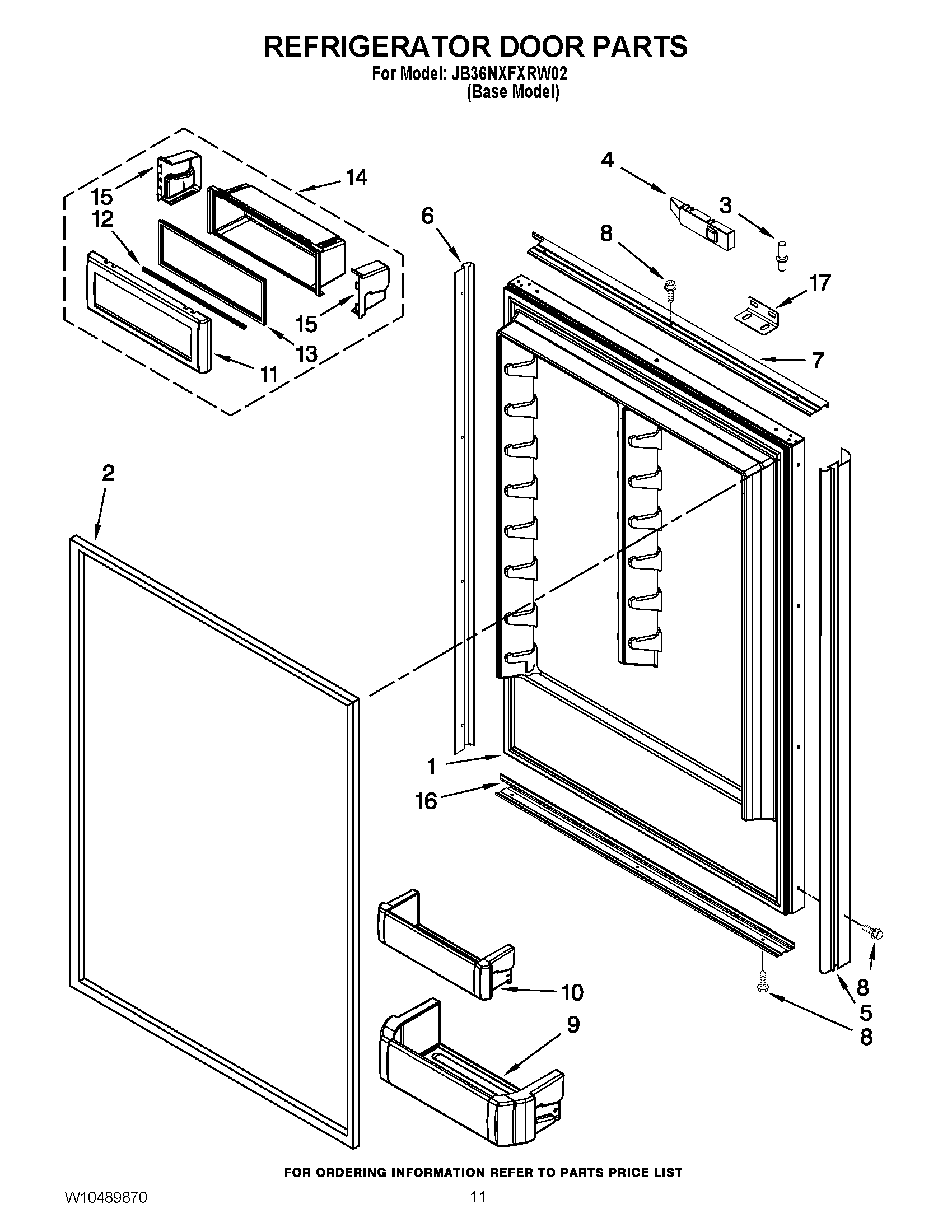

JB36NXFXRW02 07 – REFRIGERATOR DOOR PARTS
Written by
in
JB36NXFXRW02 07 – REFRIGERATOR DOOR PARTS
Products
Position
Product
1
MAY W10138410
2
Gasket, Door
3
Pin-Door, Top
4
INSERT-DOOR, ARM (TOP)
4
INSERT-DOOR, ARM (BOTTOM)
5
MAY W10202604
6
MAY W10202602
7
MAY W10167365
8
SCREW 10-32 X 1/2
9
MAY W10323749
10
BIN, DOOR
11
LID, UTILITY
12
RAIL, UTILITY
13
GASKET, BIN UTILITY
14
MAY W10323044
15
END CAP (LEFT HAND)
15
END CAP (RIGHT HAND)
16
MAY W10167371
17
MAY W10199955
←
