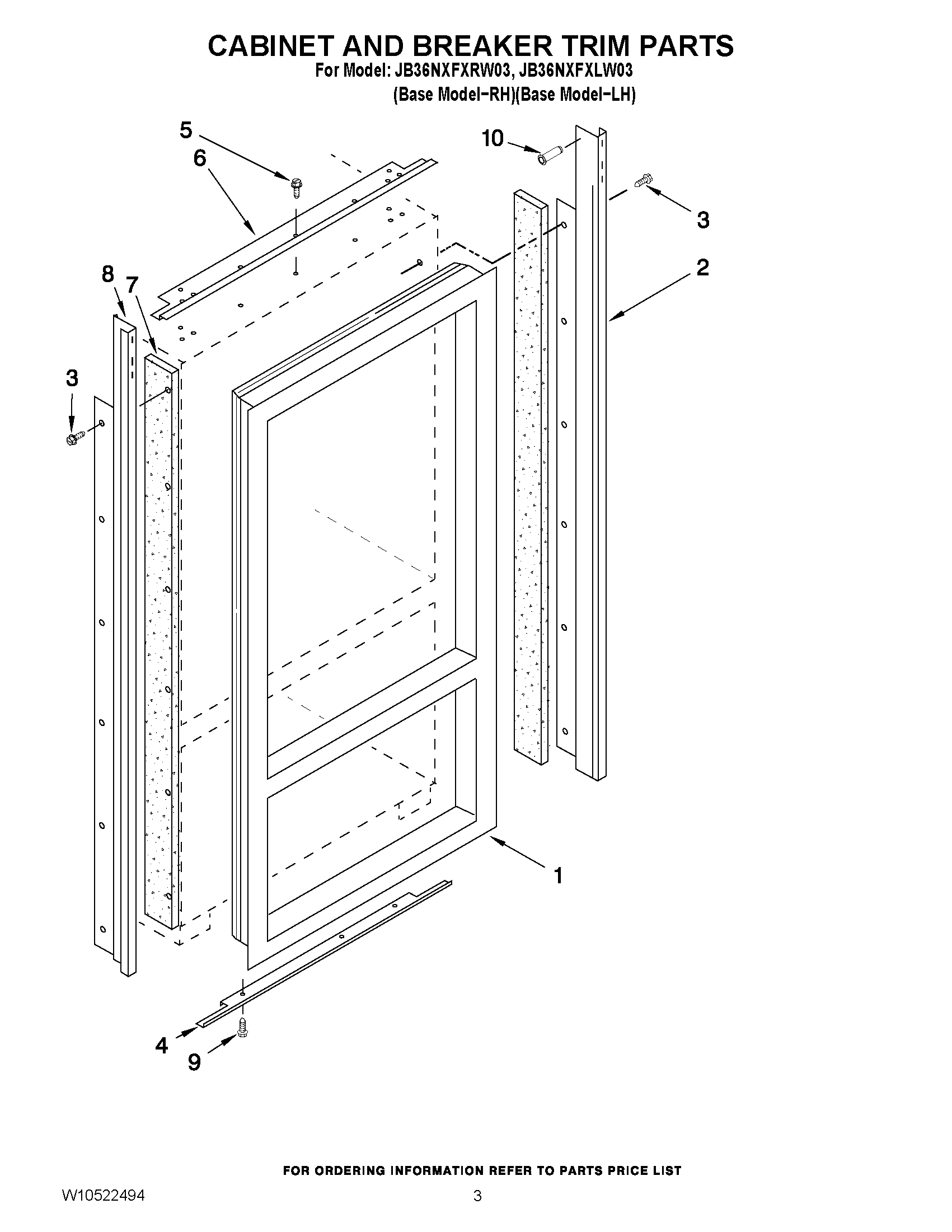

JB36NXFXRW03 02 – CABINET AND BREAKER TRIM PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10344547
2CABINET TRIM, RIGHT SIDE
3SCREW
4MAY W10188504
5SCREW 8-15 X .813
6MAY W10202877
6MAY W10202875
7SEAL-TRIM, SIDE
8MAY W10344549
8CABINET TRIM, LEFT SIDE (LEFT)
9MAY W10001250
10Nutsert (4)
