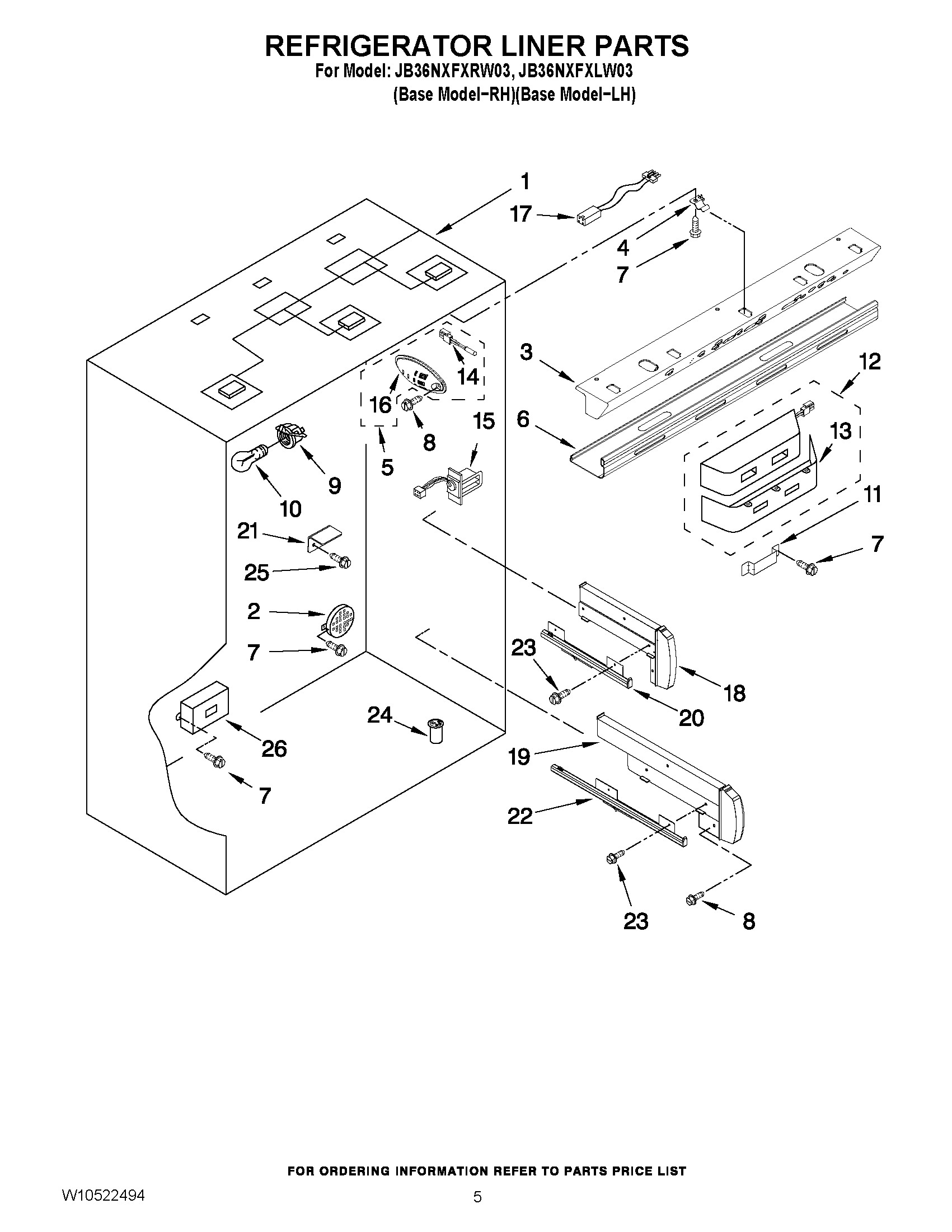

JB36NXFXRW03 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2317004
3MAY W10269709
4MAY 2317000
5ASSEMBLY, THERMISTOR
6MAY 2309270
7SCREW
8MAY 488163
9MAY W10191429
10Bulb, Light
11MAY 2317917
12MAY 2320523
13Cover, Diffuser
14MAY 2188820
15Air Baffle Assembly
16MAY 2317105
17MAY W10209498
18SPACER, CRISPER (LEFT HAND)
18SPACER, CRISPER (RIGHT HAND)
19SPACER, DELI (LEFT HAND)
19SPACER, DELI (RIGHT HAND)
20Slide, Crisper (Right Vent)
20Slide, Crisper (Left)
21MAY 2302788
22Slide, Crisper (Left Side)
22Slide, Crisper (Right Side)
23MAY W10001160
24Valve
25Screw
26DIFFUSER, CRISPER (COMPLETE)
