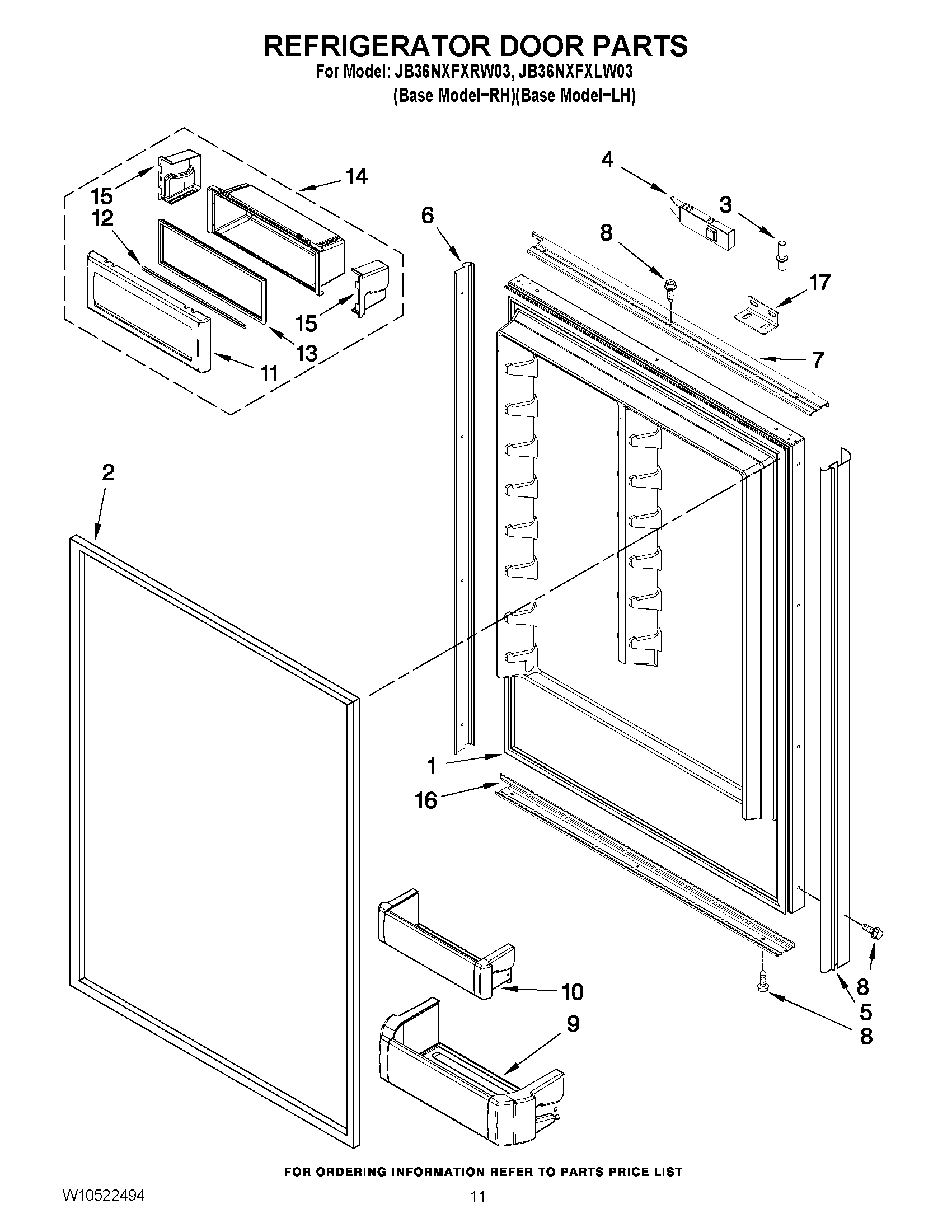

JB36NXFXRW03 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR (INCLUDES ITEM 2) (LEFT)
1	MAY W10138410
2	Gasket, Door
3	Pin-Door, Top
4	INSERT-DOOR, ARM (BOTTOM)
4	INSERT-DOOR, ARM (TOP)
5	MAY W10202604
5	TRIM DOOR (LEFT)
6	MAY W10202602
7	MAY W10167365
7	TRIM-DOOR, TOP (LEFT)
8	SCREW 10-32 X 1/2
9	MAY W10323749
10	BIN, DOOR
11	LID, UTILITY
12	RAIL, UTILITY
13	GASKET, BIN UTILITY
14	MAY W10323044
15	END CAP (RIGHT HAND)
15	END CAP (LEFT HAND)
16	MAY W10167371
16	TRIM-DOOR, BOTTOM (LEFT)
17	MAY W10199955
