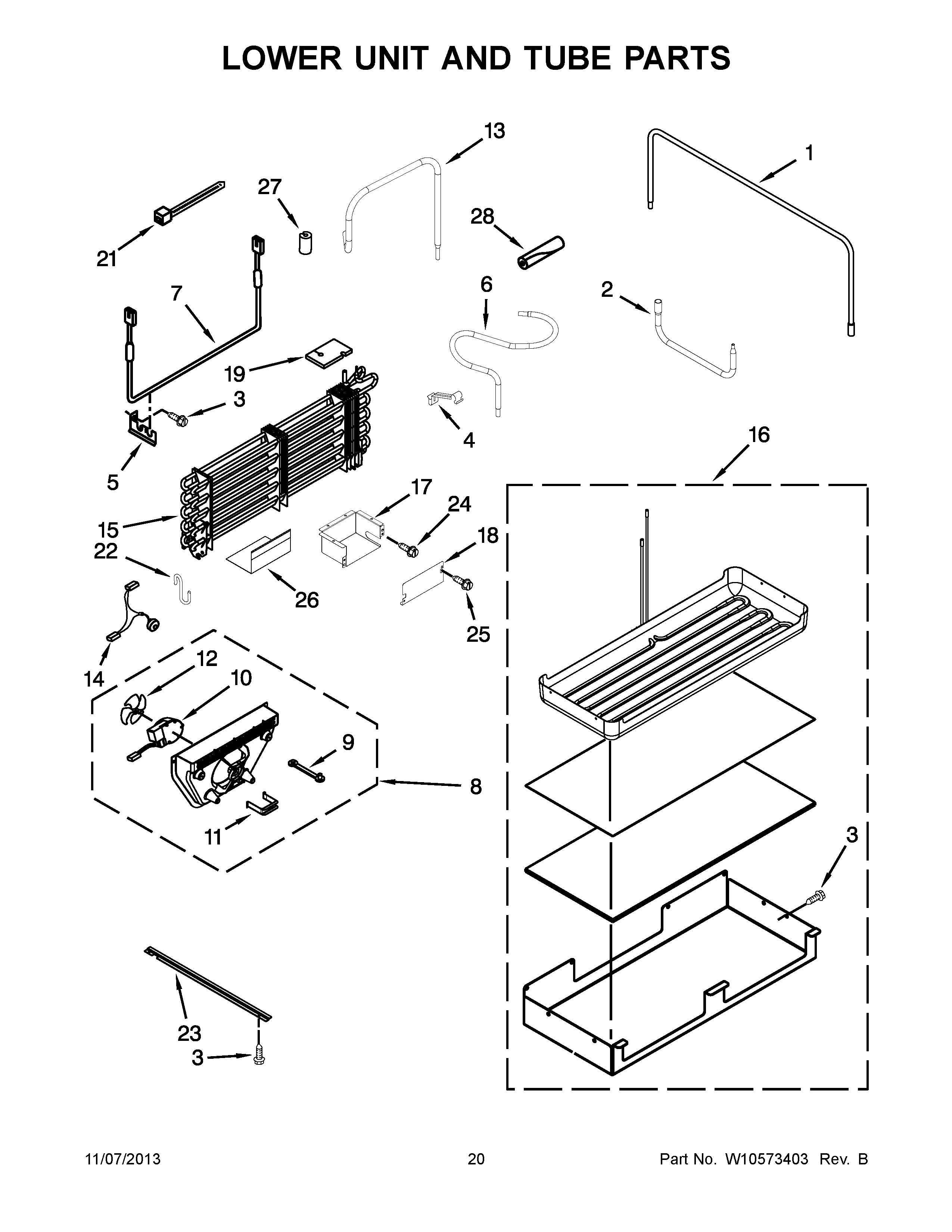

JB36NXFXRW04 11 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
1	TUBE, TRANSITION (CONDENSER/DRAIN PAN)
2	TUBE, CONNECT (DRIER/RESTRICTOR)
3	SCREW 8-15 X .813
4	MAY 2307944
5	MAY 2307945
6	SUCTION TUBE
7	MAY 2268393
8	MAY W10321092
9	MAY W10321090
10	MAY W10436861
11	MAY W10260421
12	Blade, Fan (Evaporator)
13	TUBE, DISCHARGE ASSEMBLY
14	MAY W10482185
15	EVAPORATOR ASSEMBLY
16	MAY W10281063
17	MAY W10309012
18	MAY W10321048
19	MAY 2306180
21	MAY 2155774
22	MAY 2317920
23	MAY 2320554
24	MAY W10001250
25	Screw
26	MAY W10321050
27	GROMMET, CONDENSER
28	MAY W10405530
