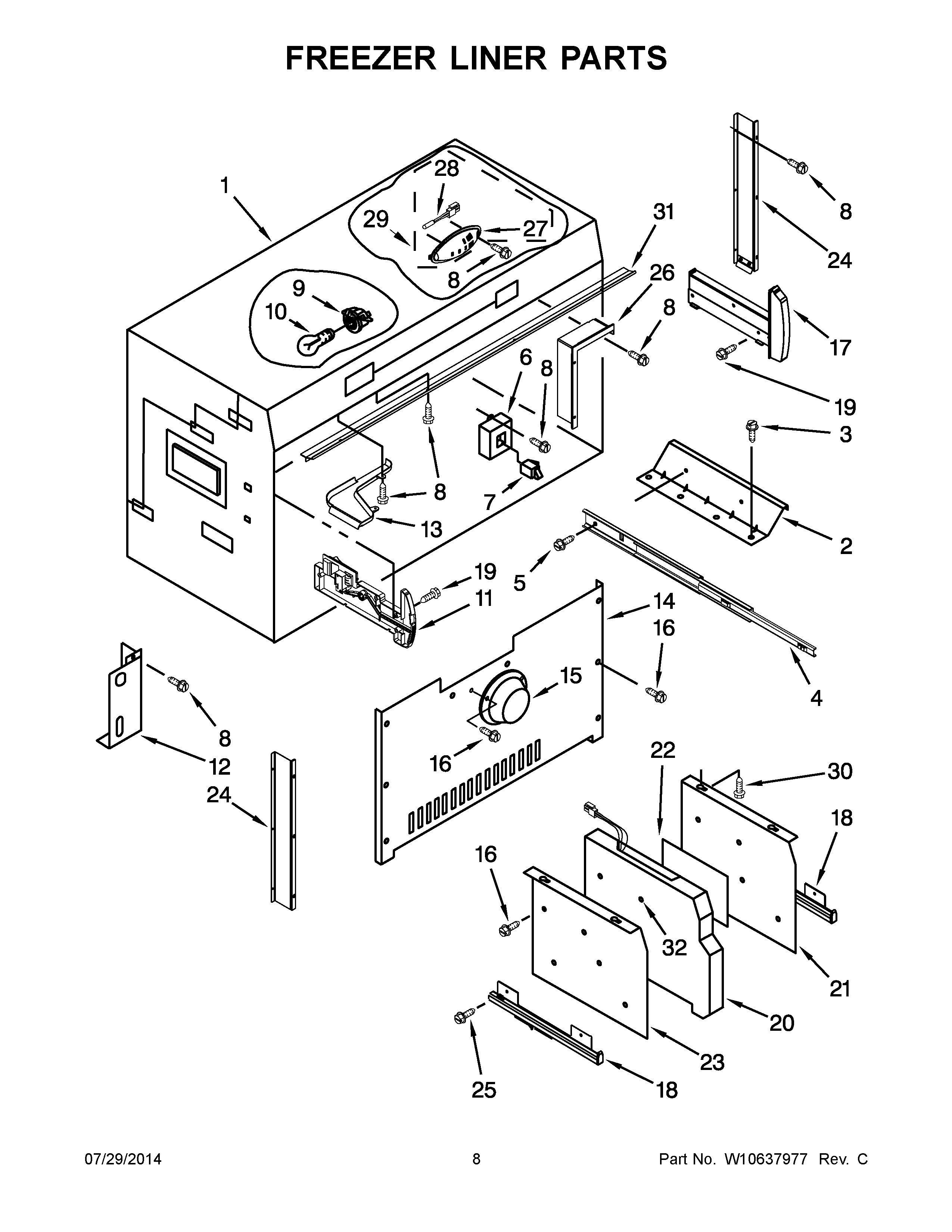

JB36NXFXRW05 05 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10423553
3	MAY W10061370
4	MAY W10423551
5	Screw (Right Side- (8-18 x 1.375))
6	COVER, SWITCH
7	MAY W10656773
8	SCREW 8-15 X .813
9	MAY W10191429
10	Bulb, Light
11	MAY W10321131
12	MAY 2306187
13	MAY 2317006
14	MAY 2268380
15	COVER, FAN
16	SCREW
17	MAY 2306106
18A	MAY 2306116
18	MAY 2306117
20	DIVIDER, FREEZER BINS
21	SUPPORT, SLIDE (RIGHT HAND)
22	MAY 2317927
23	SUPPORT, SLIDE (LEFT HAND)
24	BRACKET, EVAPORATOR COVER (LEFT HAND)
24A	BRACKET, EVAPORATOR COVER (RIGHT HAND)
25	MAY 488163
26	MAY W10121940
27	MAY 2317105
28	MAY 2188820
29	ASSEMBLY, THERMISTOR
30	Screw
31	AIR DEFLECTOR ASSEMBLY
32	MAY 2198643
