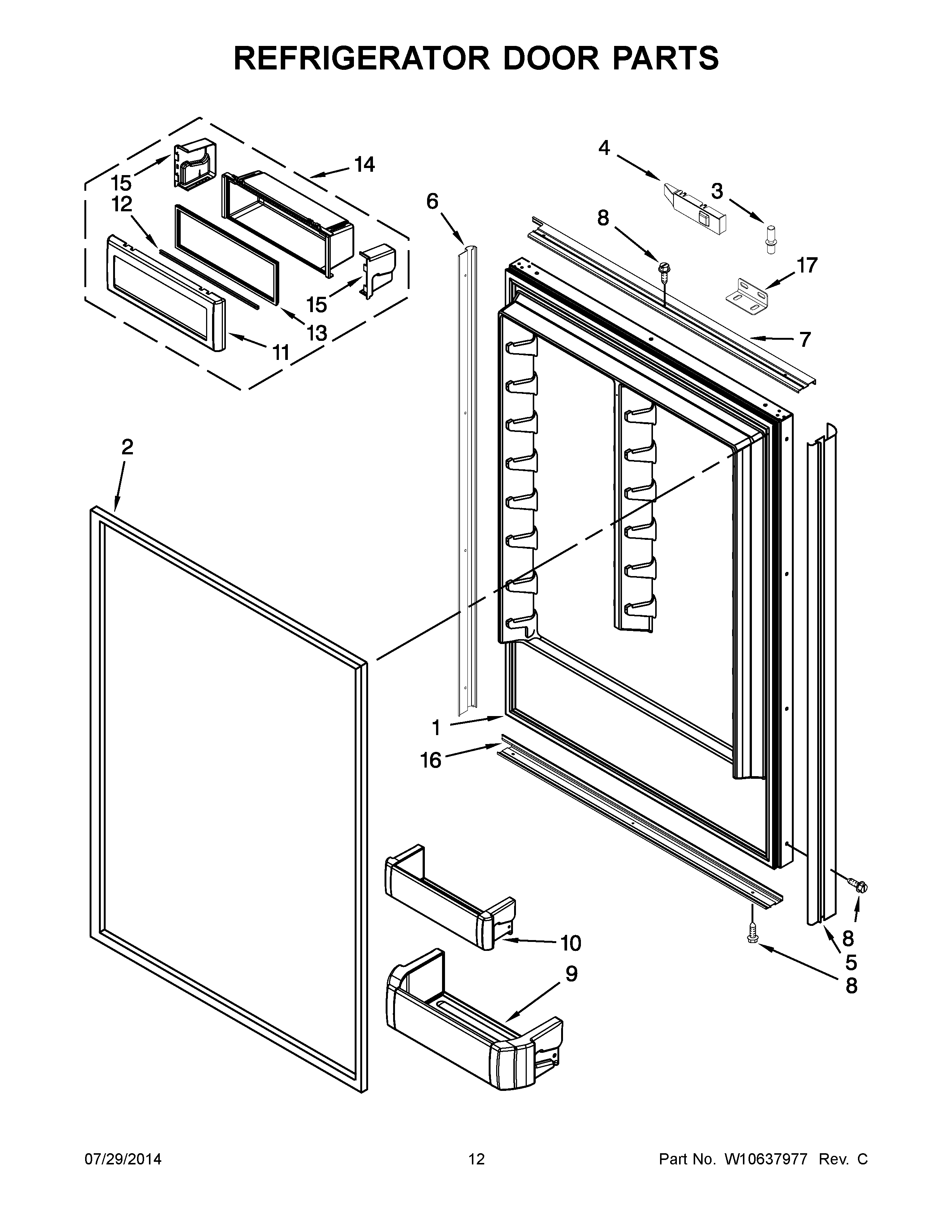

JB36NXFXRW05 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	DOOR, REFRIGERATOR (INCLUDES ITEM 2) (LEFT)
1	MAY W10138410
2	MAY W10694215
3	Pin-Door, Top
4A	INSERT-DOOR, ARM (BOTTOM)
4	INSERT-DOOR, ARM (TOP)
5	MAY W10202604
5A	TRIM DOOR (LEFT)
6	MAY W10202602
7	MAY W10167365
7A	TRIM-DOOR, TOP (LEFT)
8	SCREW 10-32 X 1/2
9	MAY W10323749
10	BIN, DOOR
11	LID, UTILITY
12	RAIL, UTILITY
13	GASKET, BIN UTILITY
14	MAY W10323044
15	END CAP (RIGHT HAND)
15A	END CAP (LEFT HAND)
16	MAY W10167371
16A	TRIM-DOOR, BOTTOM (LEFT)
17	MAY W10199955
