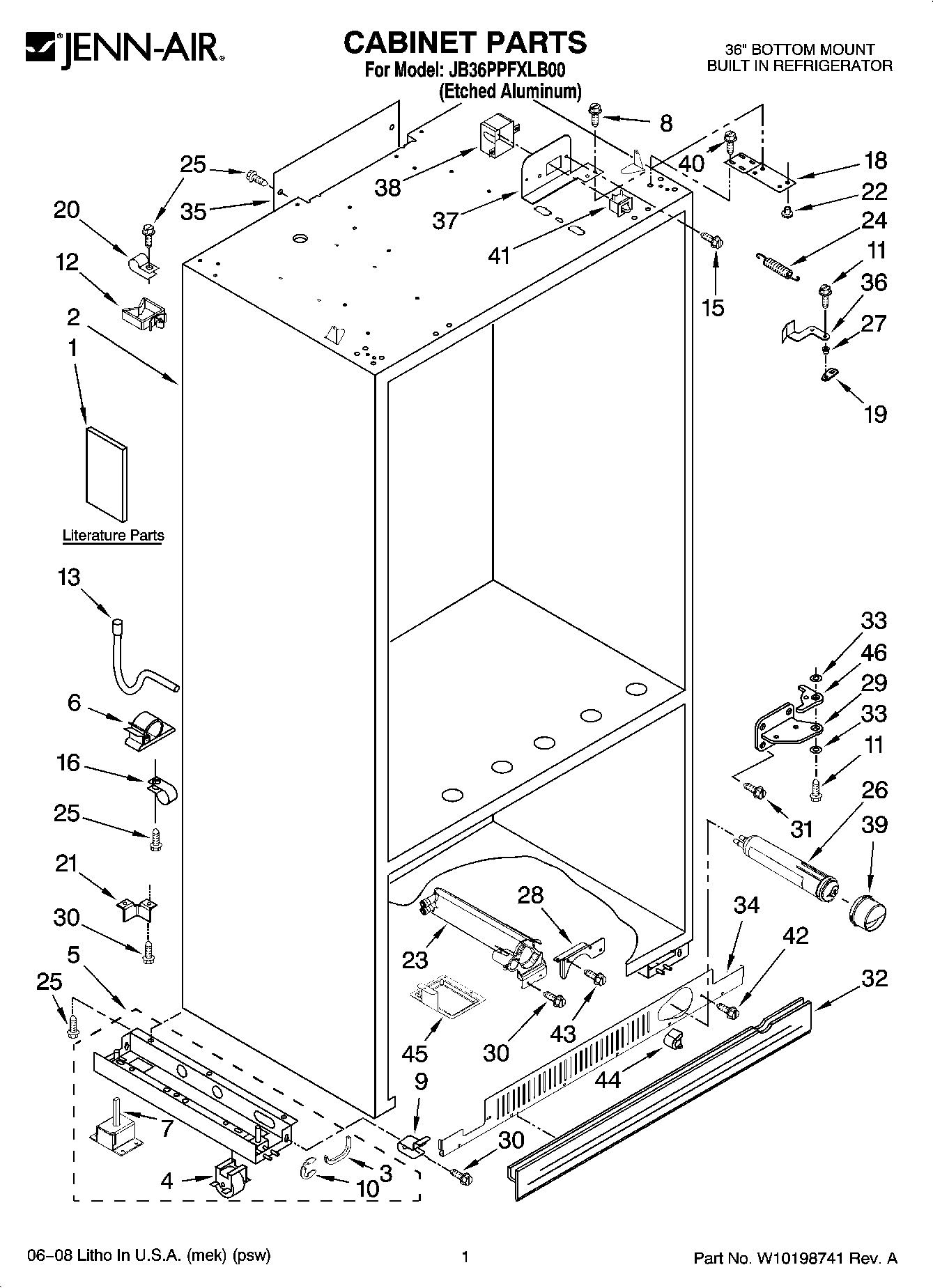

JB36PPFXLB00 01 – CABINET PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1	MAY 2324934
1	MAY 628370
1	MAY W10183782
1	MAY W10183790
1	MAY W10197558
3	GROMMET, CROSSOVERTUBE
4	MAY W10138054
5	MAY 2318193
5	MAY 2318194
6	CLIP
7	LEVELER ASSY
8	MAY 8281164
9	Mounting Stud, Grille
10	Ring, Retainer
11	MAY 2005921
12	Wire Clip (5)
13	MAY 2314064
15	Screw
16	Clamp, Nylon Valve
18	Hinge (Top)
19	MAY 2005783
20	MAY 2221070
21	Bracket, Support Base (Rear) (2)
22	MAY 2300082
23	MAY 2260526
24	Spring, Door Closure (Left Side)
25	SCREW
26	MAY 4396841
27	Bushing, Extension Arm
28	Bracket, Mtg (Water Filter)
29	MAY 2005101
30	Screw (3)
31	MAY 3400525
32	SKIRT, GRILLE BOTTOM (BLACK)
33	WASHER
34	GRILLE, PUSH FILTER BOTTOM (BLACK)
35	Cover, Rear
36	ARM, EXTENSION (STAINLESS LH)
37	MAY 2221096
38	Cover, Switch (2)
39	MAY 2260518B
40	Screw 1/4-20 x 5/8
41	MAY 1118894
42	MAY W10005050
43	Screw
44	Button, Filter (Black)
45	Tray, Drip Filter
46	COVER, BOTTOM GAP
