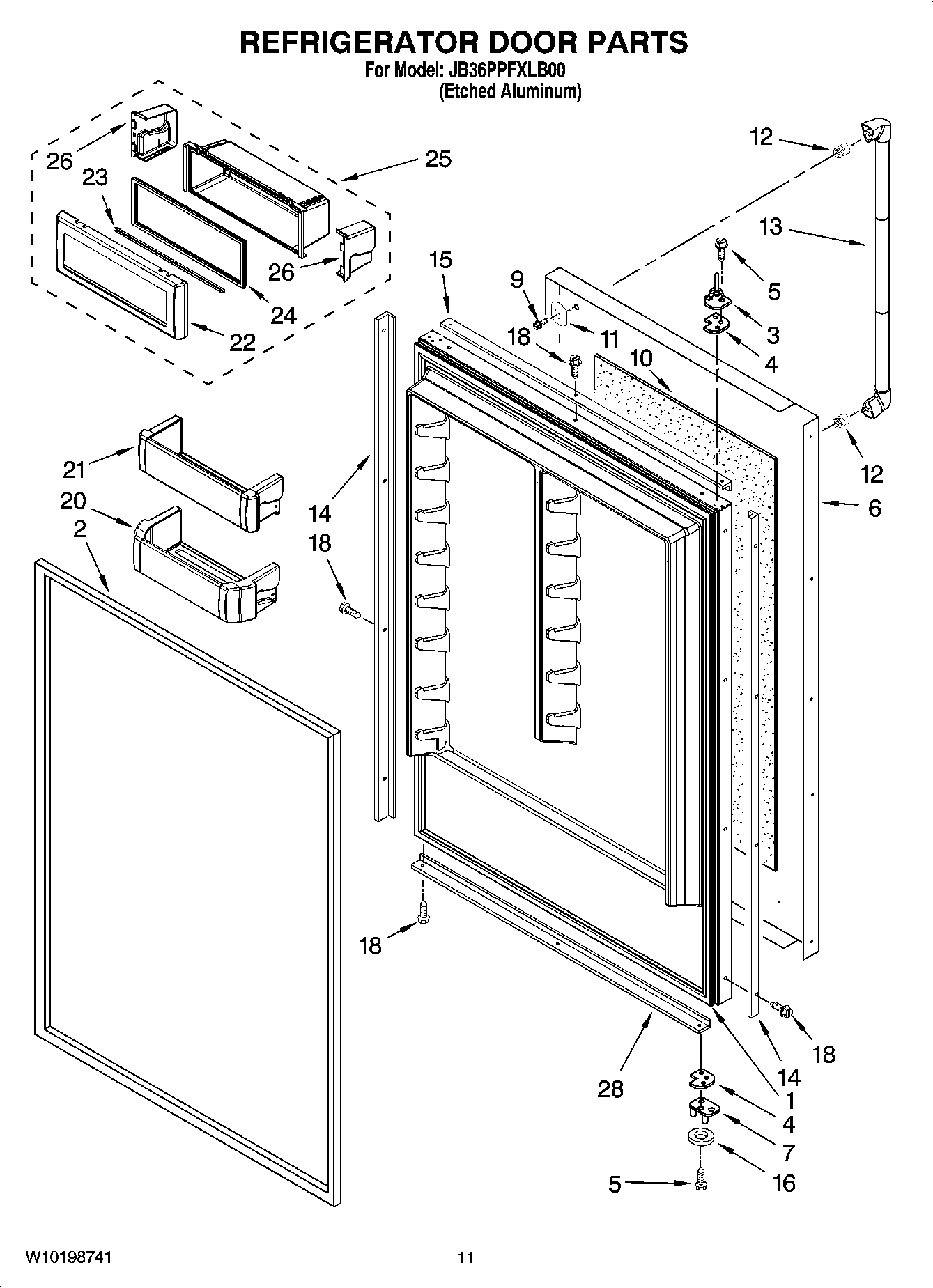

JB36PPFXLB00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 2309390
2Gasket, Door
3BOTTOM HINGE ASSEMBLY (STAINLESS LH)
4Spacer-Door, Top & Bottom
5MAY 8533980
6MAY W10168921
7BOTTOM HINGE ASSEMBLY (LEFT HAND)
9Screw
10MAY 2327469
11MAY W10127710
12STUD, HANDLE MOUNTING
13WP12859109 Whirlpool Door Handle
14SPACER, DOOR SIDE EDGE
15SPACER, DOOR-SKIN (WHITE)
16WASHER
18Screw, 8-15 x .500 (Stainless Steel)
20MAY 2307975
21Bin, Door (6)
22LID, UTILITY
23RAIL, UTILITY
24GASKET, BIN UTILITY
25MAY 2309252
26End Cap (Left Side)
26End Cap (Right Side)
28SPACER, DOOR-SKIN (WHITE)
