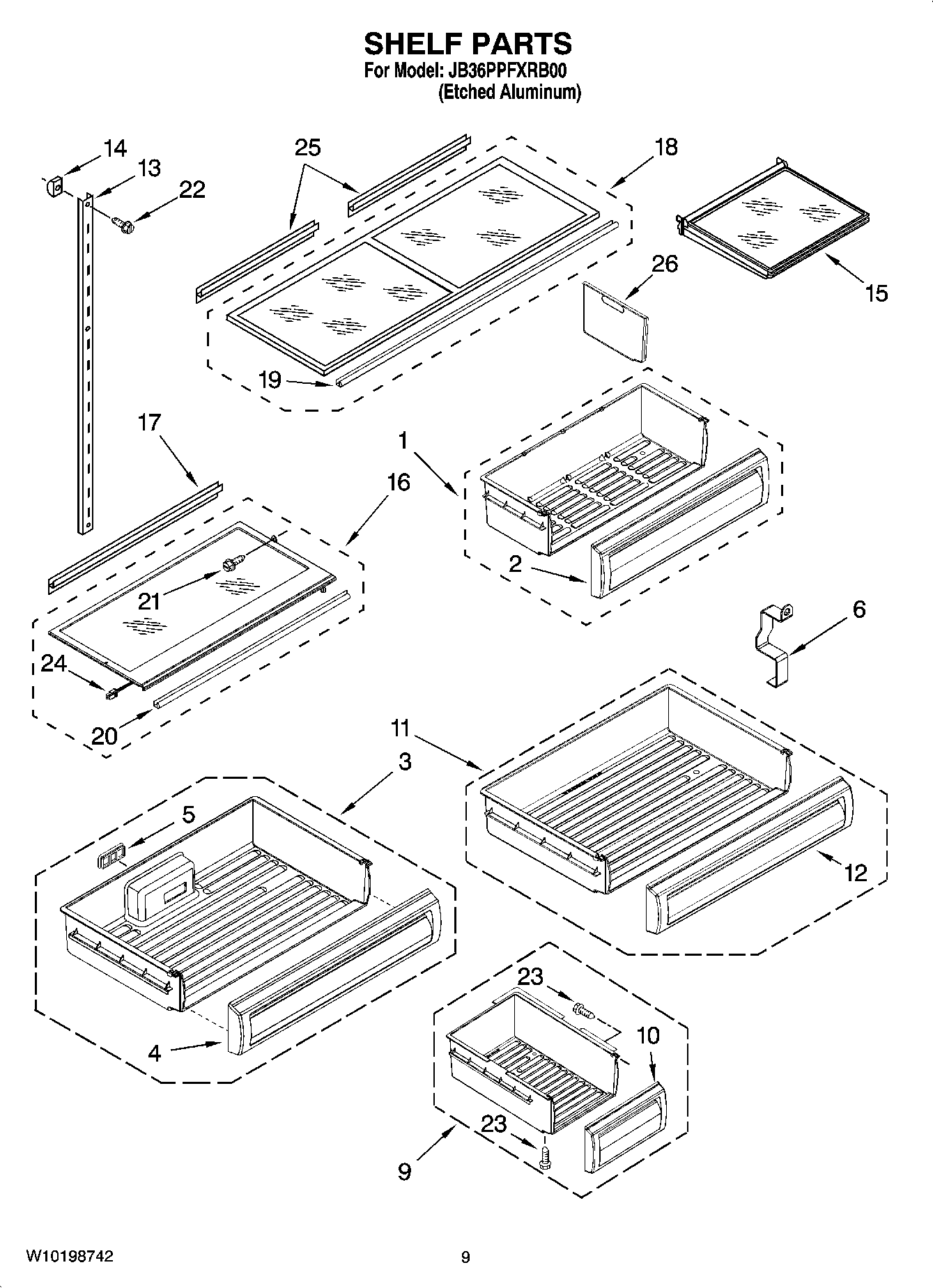

JB36PPFXRB00 06 – SHELF PARTS

Products

PositionProduct
1Crisper Pan Assembly (Includes 2)
2MAY 2256374
3MAY 2268397
4MAY 2257548
5DUCT, PAN
6CLIP, BIN (LEFT HAND)
6CLIP, BIN (RIGHT HAND)
9ASSEMBLY, ICE PAN
10Front, Ice Pan
11FREEZER PAN ASSEMBLY
12Front, Freezer Pan
13MAY 2327314
14Screw Support, Ladder (8)
15MAY W10183757
16MAY 2327413
16MAY W10183750
17GASKET, REAR (DELI COVER)
18MAY W10183749
20GASKET, COVER FRONT
21MAY 8281251
22SCREW
23MAY 488886
24LIGHT ASSEMBLY, (DELI)
25COVER, REAR GASKET
26DIVIDER, CRISPER
