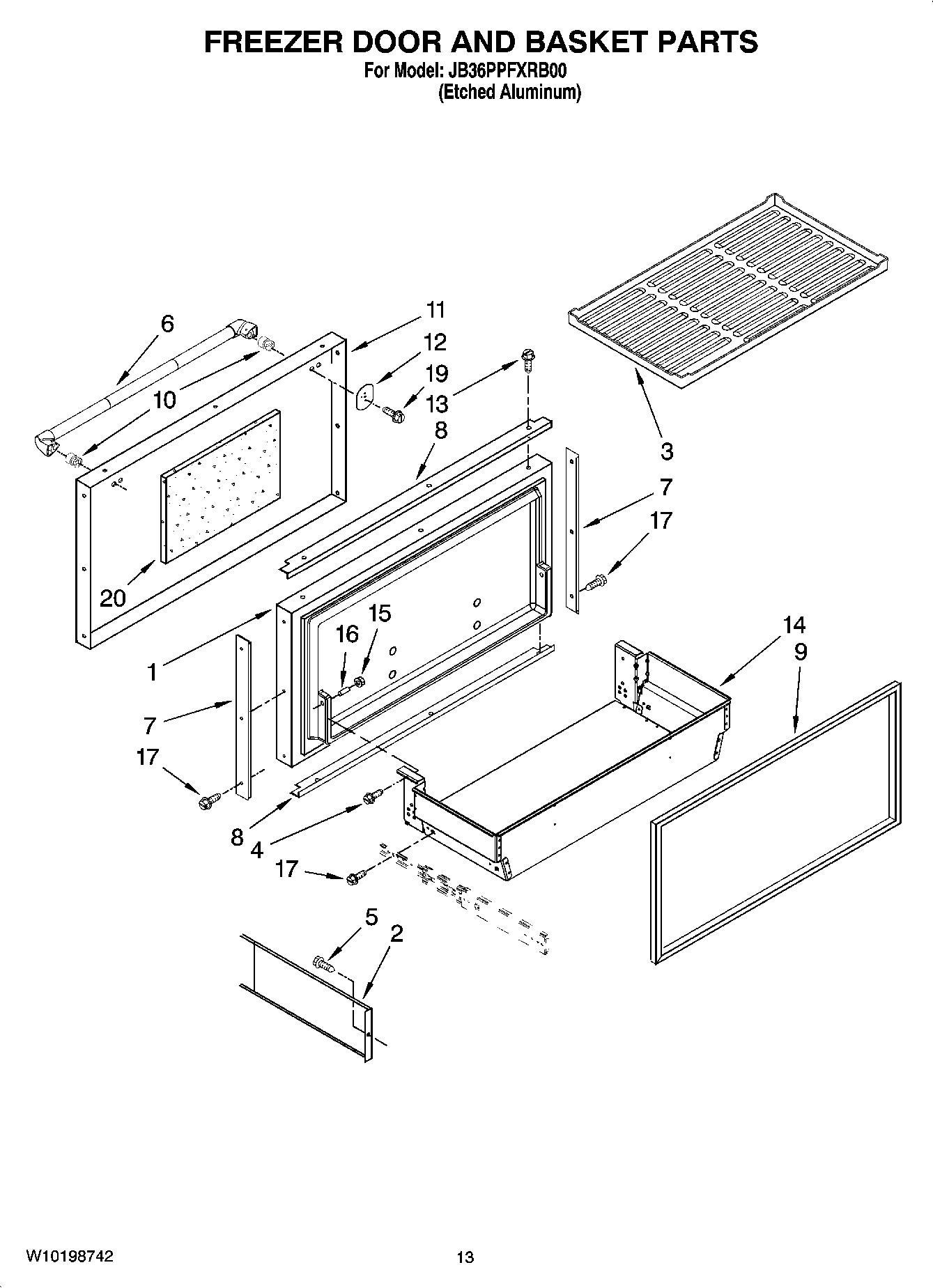

JB36PPFXRB00 08 – FREEZER DOOR AND BASKET PARTS

Products

Position	Product
1	MAY 2327401
2	MAY 2317101
3	MAY W10168937
4	SCREW
5	MAY W10135792
6	WP12859110 Whirlpool Refrigerator Handle
7	Spacer, Door Edge (Side)
8	SPACER, DOOR EDGE
9	MAY 2300185
10	STUD, HANDLE MOUNTING
11	MAY W10168923
12	MAY W10127710
13	Screw, 8-15 x .500 (Stainless Steel)
14	Basket Assembly, Freezer
15	MAY 2207454
16	MAY W10001190
17	MAY W10109030
19	Screw
20	MAY 2327468
