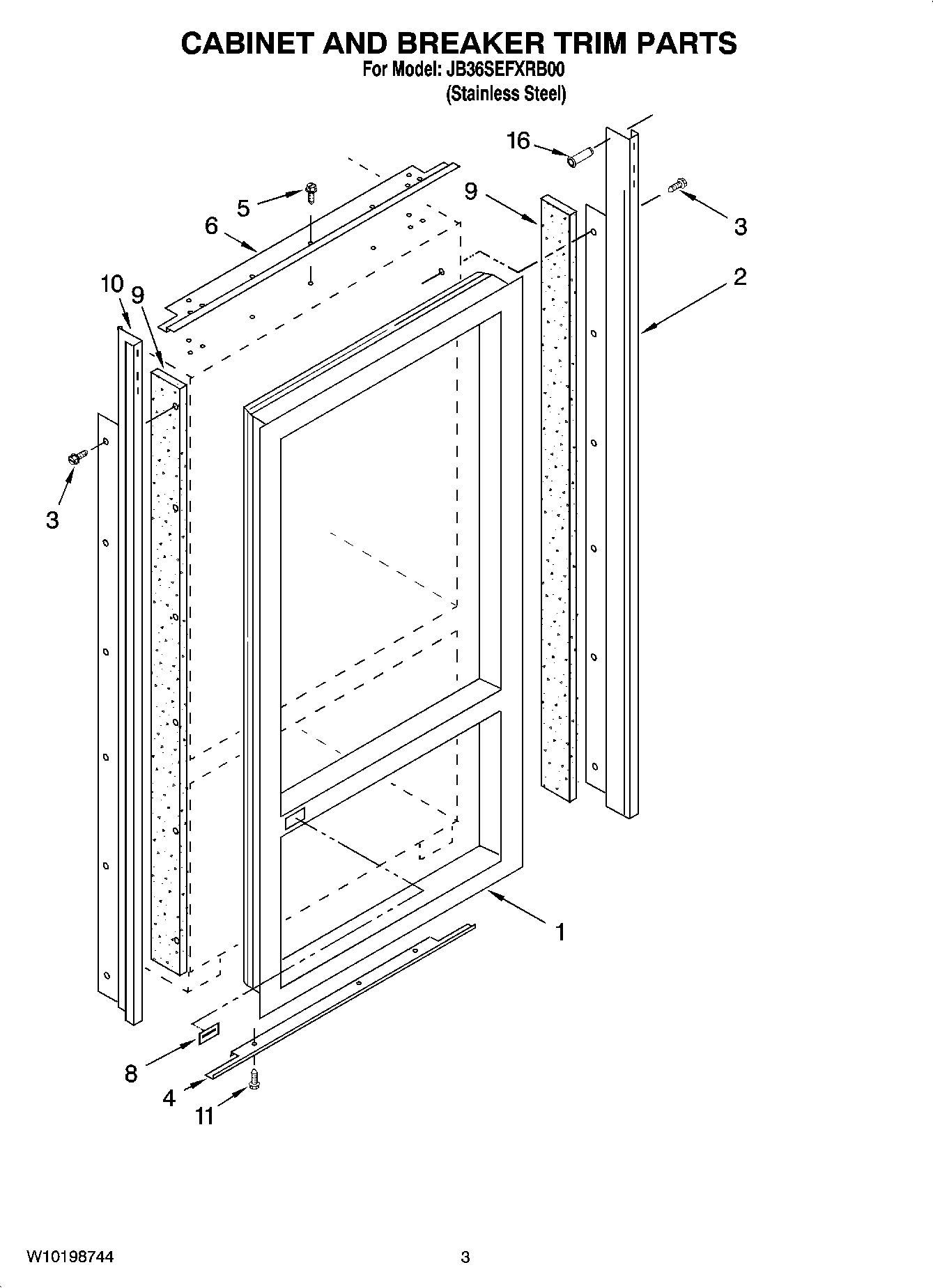

JB36SEFXRB00 02 – CABINET AND BREAKER TRIM PARTS

Written by

Products

Position	Product
2	TRIM, CAB SIDE (RIGHT)
3	SCREW
4	TRIM, BOTTOM CAB (ALUMINUM)
5	SCREW
6	CABINET TRIM, TOP RIGHT HAND (ALUMINUM)
8	COVER, HINGE (WHITE)
9	SEAL-TRIM, SIDE
10	TRIM, CAB SIDE (LEFT)
11	Screw (3)
16	Nutsert (4)
