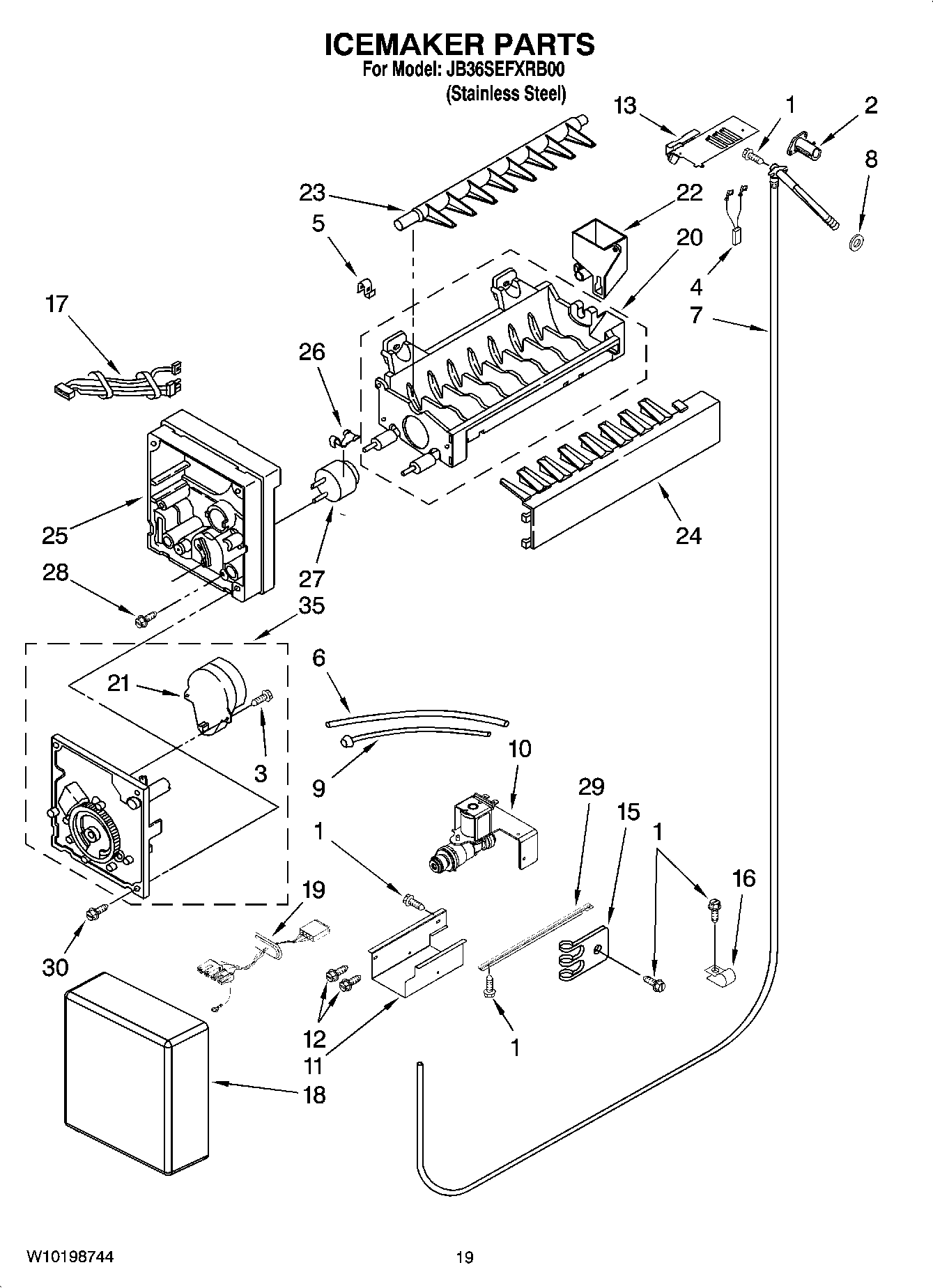

JB36SEFXRB00 11 – ICEMAKER PARTS

Products

Position	Product
	MAY 8537055
1	SCREW
2	MAY 2221240
3	MAY 489136
4	Jumper, Fill Tube Heater
5	Clip
6	MAY W10174395
7	MAY 2317847
8	Seal
9	MAY 2317912
10	MAY 2307650
11	MAY W10129653
12	Screw (3)
13	MAY 2221231
15	Clip, Tube
16	Clamp, Tubing
17	Wire Assembly, Icemaker
18	MAY 2257538
19	MAY W10139195
20	MAY W10122527
21	MAY 626683
22	Cup, Fill
23	MAY 627843
24	MAY 2182124
25	Support & Motor Assembly
26	MAY 2315522
27	Thermostat (Also Order 542369 Cement Alumilastic)
28	MAY 8533917
29	MAY 2320559
30	MAY 489276
35	Module Assembly (Includes Items 23 and 24)
100	MAY W10190971
