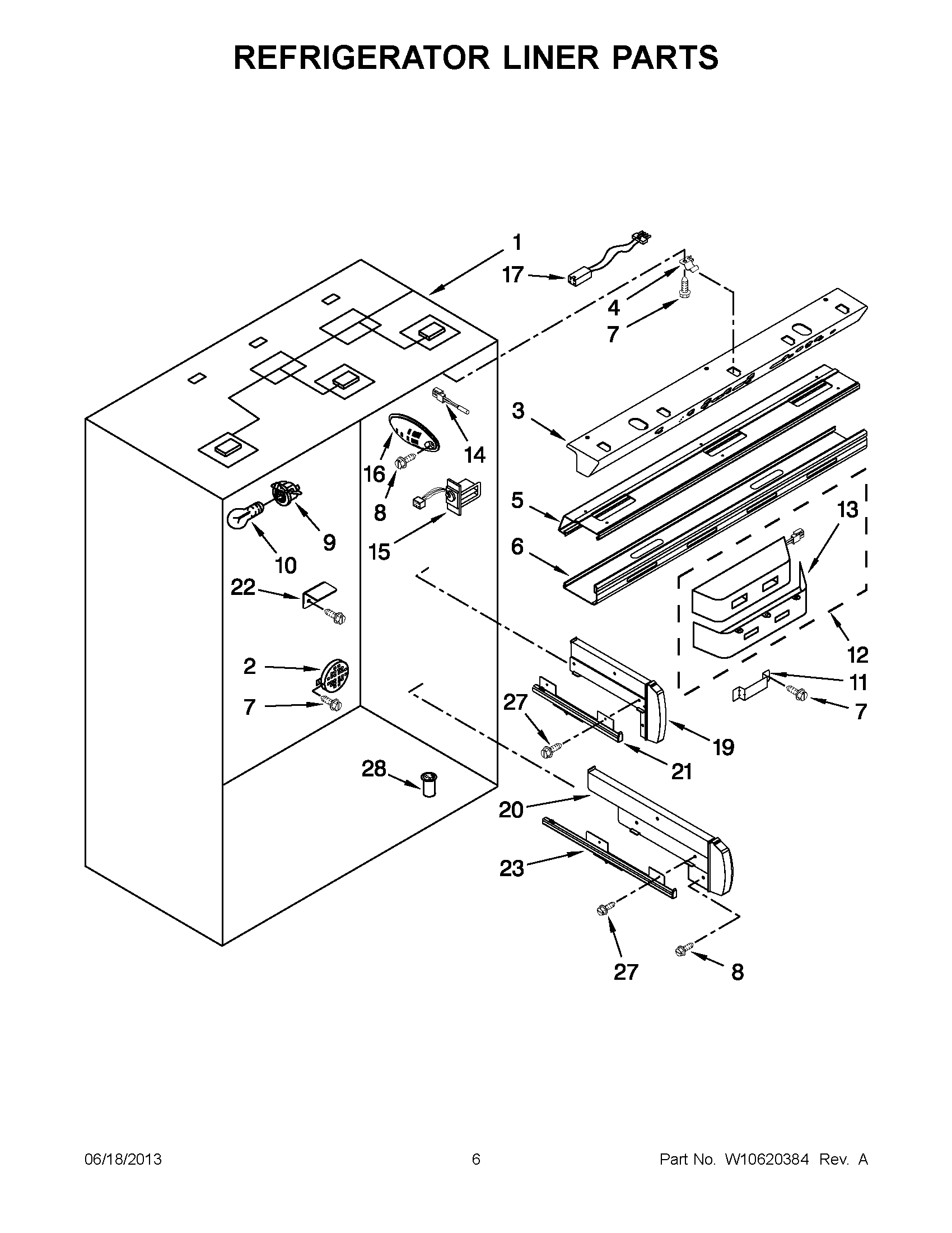

JB36SSFXLA01 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2317004
3	MAY W10468944
4	MAY 2317000
5	MAY 2324970
6	MAY 2309270
7	SCREW
8	MAY 488163
9	MAY W10191429
10	Bulb, Light
11	MAY 2317917
12	MAY 2320523
13	Cover, Diffuser
14	MAY 2188820
15	Air Baffle Assembly
16	MAY 2317105
17	MAY 2310164
19	SPACER, CRISPER (RIGHT HAND)
19	SPACER, CRISPER (LEFT HAND)
20	SPACER, DELI (LEFT HAND)
20	SPACER, DELI (RIGHT HAND)
21	Slide, Crisper (Right Vent)
21	Slide, Crisper (Left)
22	MAY 2302788
23	Slide, Crisper (Right Side)
23	Slide, Crisper (Left Side)
27	Screw (Right Side- (8-18 x 1.375))
28	Valve
