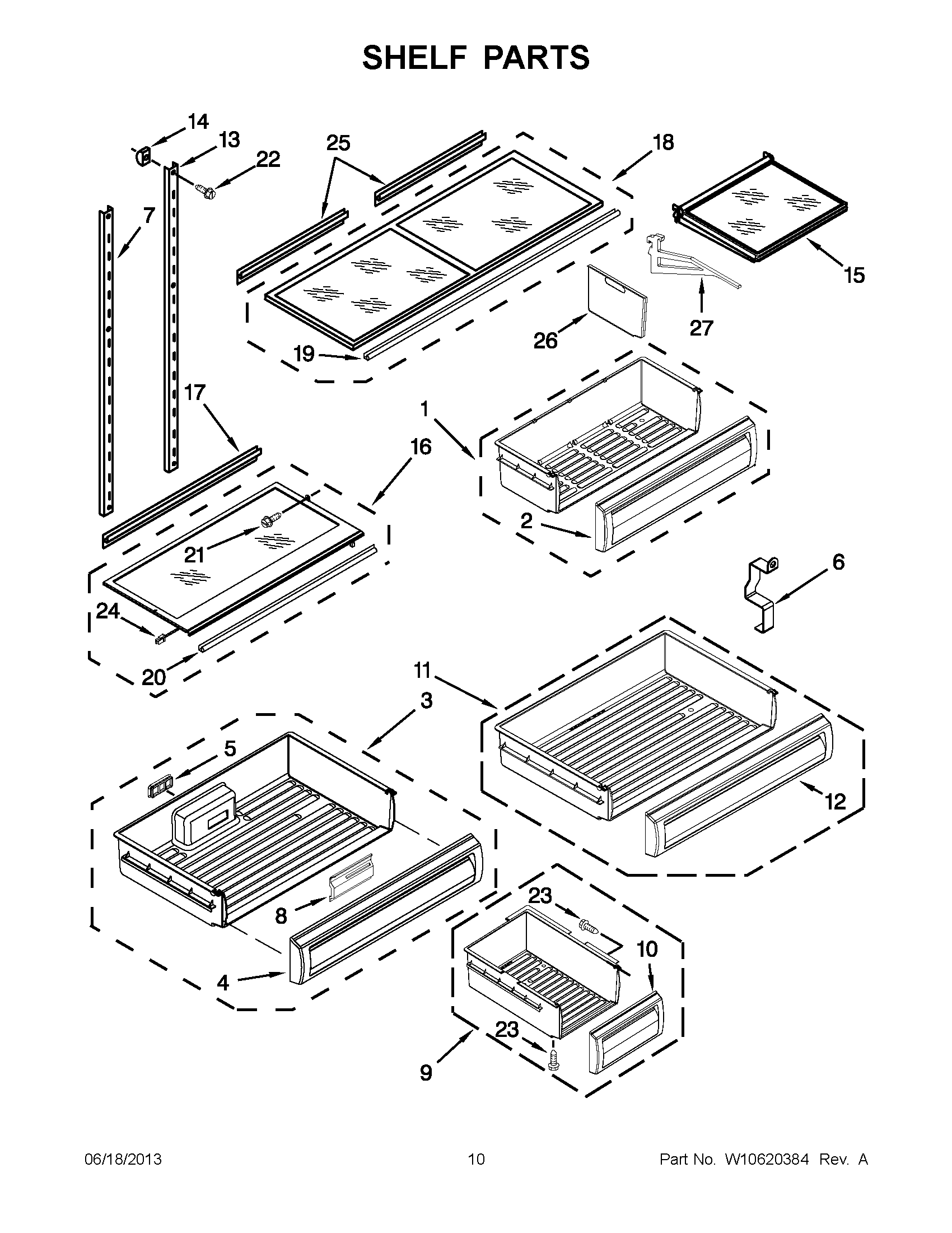

JB36SSFXLA01 05 – SHELF PARTSadmin2025-04-26T09:15:38+00:00JB36SSFXLA01 05 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | CRISPER PAN ASSEMBLY (INCLUDES ITEM 2) |
| 2 | MAY 2256374 |
| 3 | DELI PAN ASSEMBLY |
| 4 | MAY 2257548 |
| 5 | DUCT, PAN |
| 6 | CLIP, BIN (RIGHT HAND) |
| 6 | CLIP, BIN (LEFT HAND) |
| 7 | LADDER, SHELF (CENTER) |
| 8 | DEFLECTOR |
| 9 | ASSEMBLY, ICE PAN |
| 10 | Front, Ice Pan |
| 11 | FREEZER PAN ASSEMBLY |
| 12 | Front, Freezer Pan |
| 13 | LADDER, SHELF (SIDE) |
| 14 | Screw Support, Ladder (8) |
| 15 | MAY W10198700 |
| 16 | MAY W10183750 |
| 17 | GASKET, REAR (DELI COVER) |
| 18 | MAY W10183749 |
| 20 | GASKET, COVER FRONT |
| 21 | MAY 8281251 |
| 22 | SCREW |
| 23 | MAY 488886 |
| 24 | LIGHT ASSEMBLY, (DELI) |
| 25 | COVER, REAR GASKET |
| 26 | DIVIDER, CRISPER |
| 27 | MAY W10187549 |
