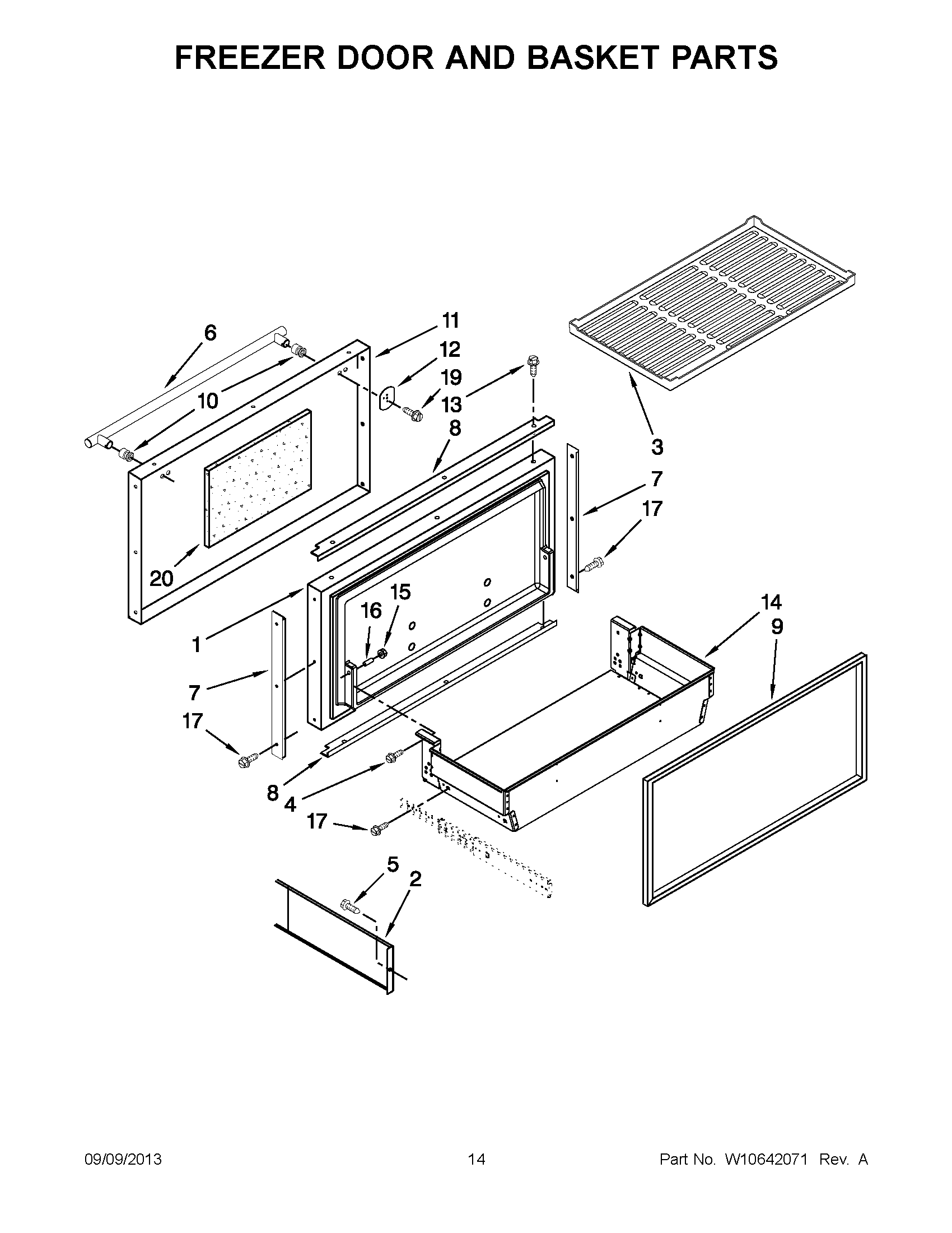

JB36SSFXLA02 08 – FREEZER DOOR AND BASKET PARTS

JB36SSFXLA02 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

JB36SSFXLA02 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1FREEZER DOOR PANEL
2MAY 2317101
3MAY W10168937
4SCREW
5MAY W10135792
6HANDLE, DOOR (STAINLESS)
7Spacer, Door Edge (Side)
8SPACER, DOOR EDGE
9MAY W10144009
10MOUNT, HANDLE
11MAY W10523749
12MAY W10127710
13Screw, 8-15 x .500 (Stainless Steel)
14MAY W10258182
15MAY 2207454
16MAY W10001190
17MAY W10109030
19Screw
20MAY 2327468
