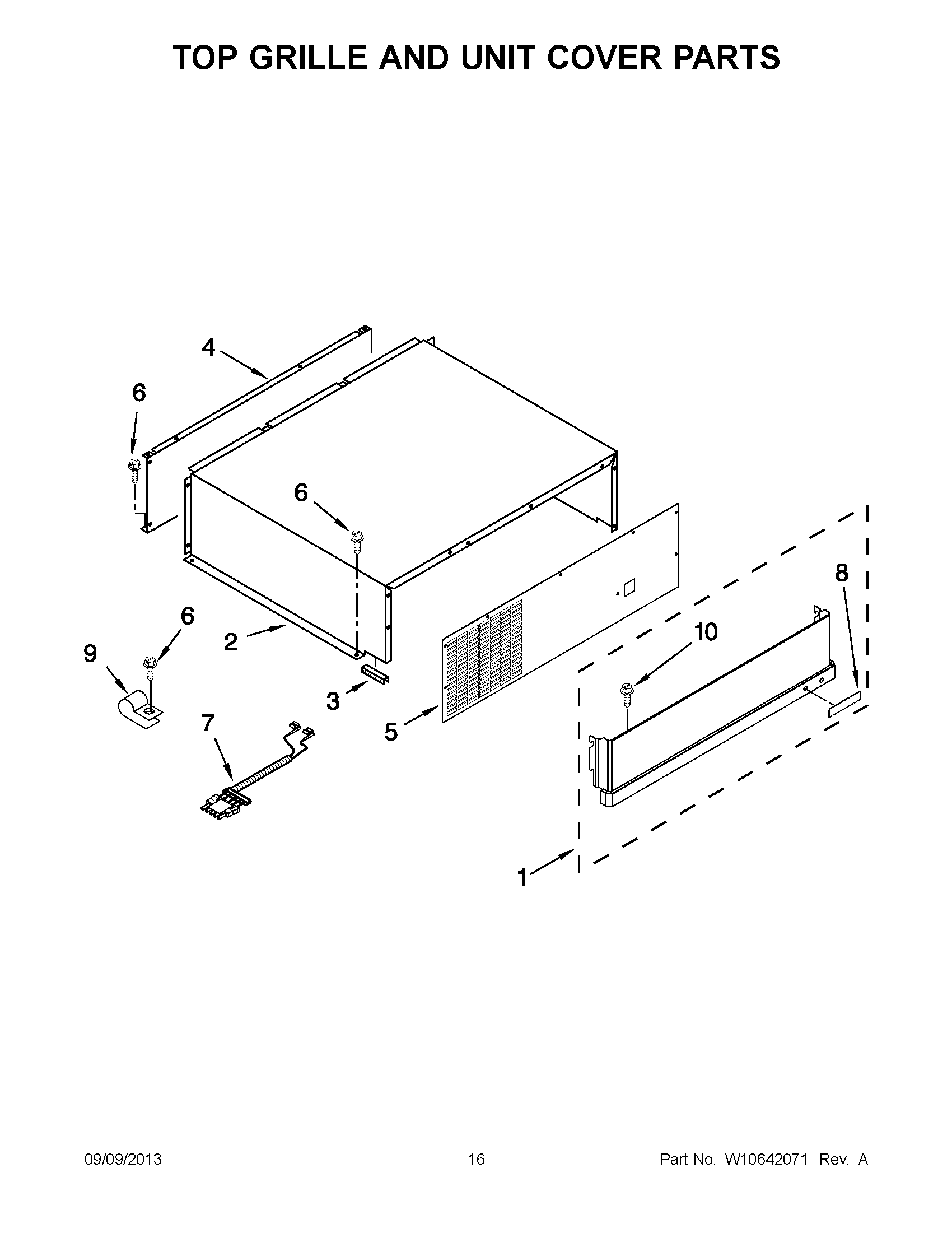

JB36SSFXLA02 09 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1MAY W10516873
1MAY W10516872
2MAY W10624563
3GROMMET
4Back Panel
5UNIT COVER, FRONT
6Screw
7MAY 2187894
8ASSEMBLY, BADGE (STAINLESS)
9MAY 489348
10Screw 8-32 x 5/16
