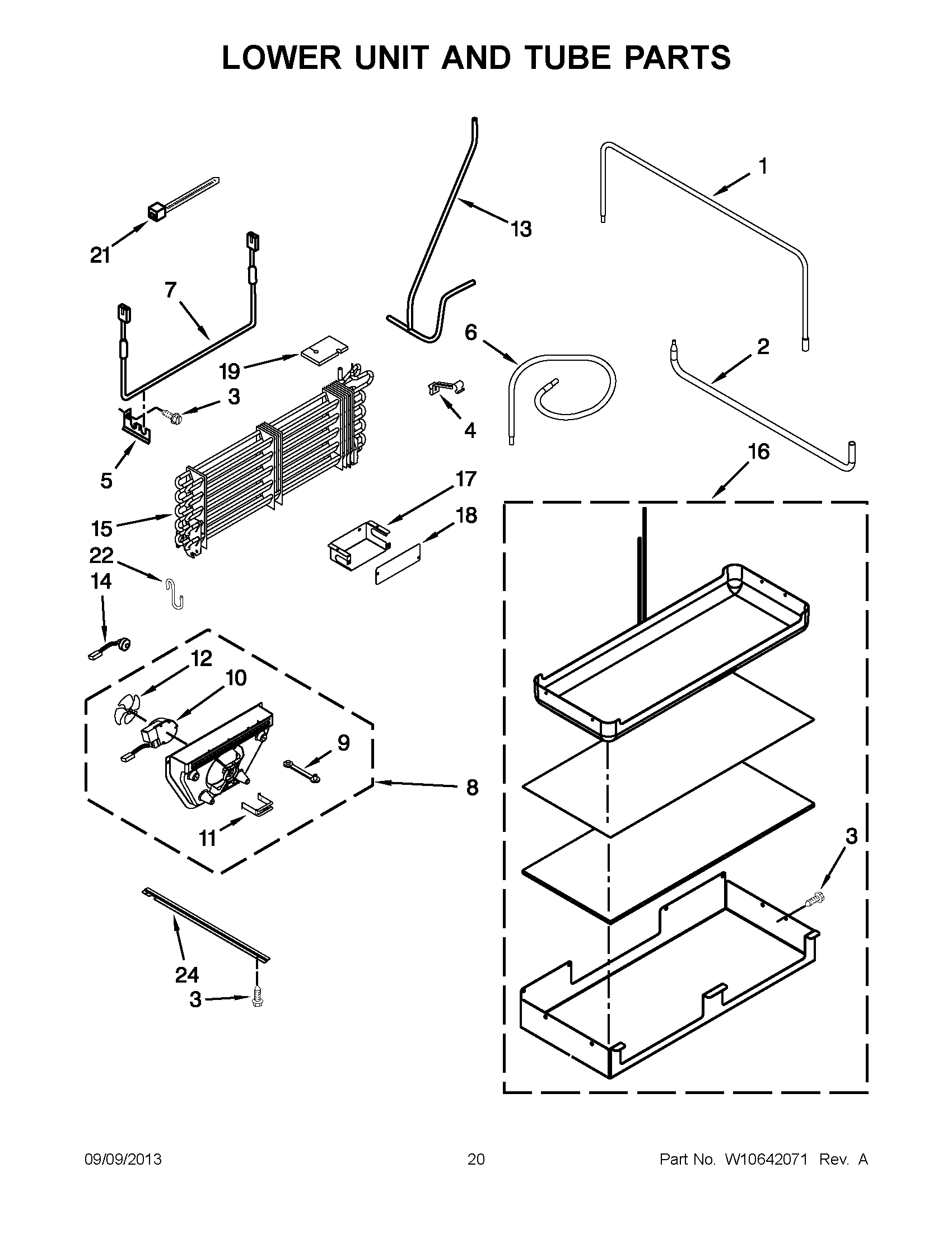

JB36SSFXLA02 11 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1MAY W10546784
2TUBE, CONNECT (DRIER/RESTRICTOR)
3SCREW
4MAY 2307944
5MAY 2307945
6TUBE, OIL TRAP SUCTION
7MAY 2268393
8MAY W10321092
9MAY W10321090
10MAY W10436861
11MAY W10260421
12Blade, Fan (Evaporator)
13TUBE, DISCHARGE ASSEMBLY
14MAY W10482185
15EVAPORATOR ASSEMBLY
16MAY W10281063
17MAY W10309012
18MAY W10321048
19MAY 2306180
21MAY 2155774
22MAY 2317920
24MAY 2320554
