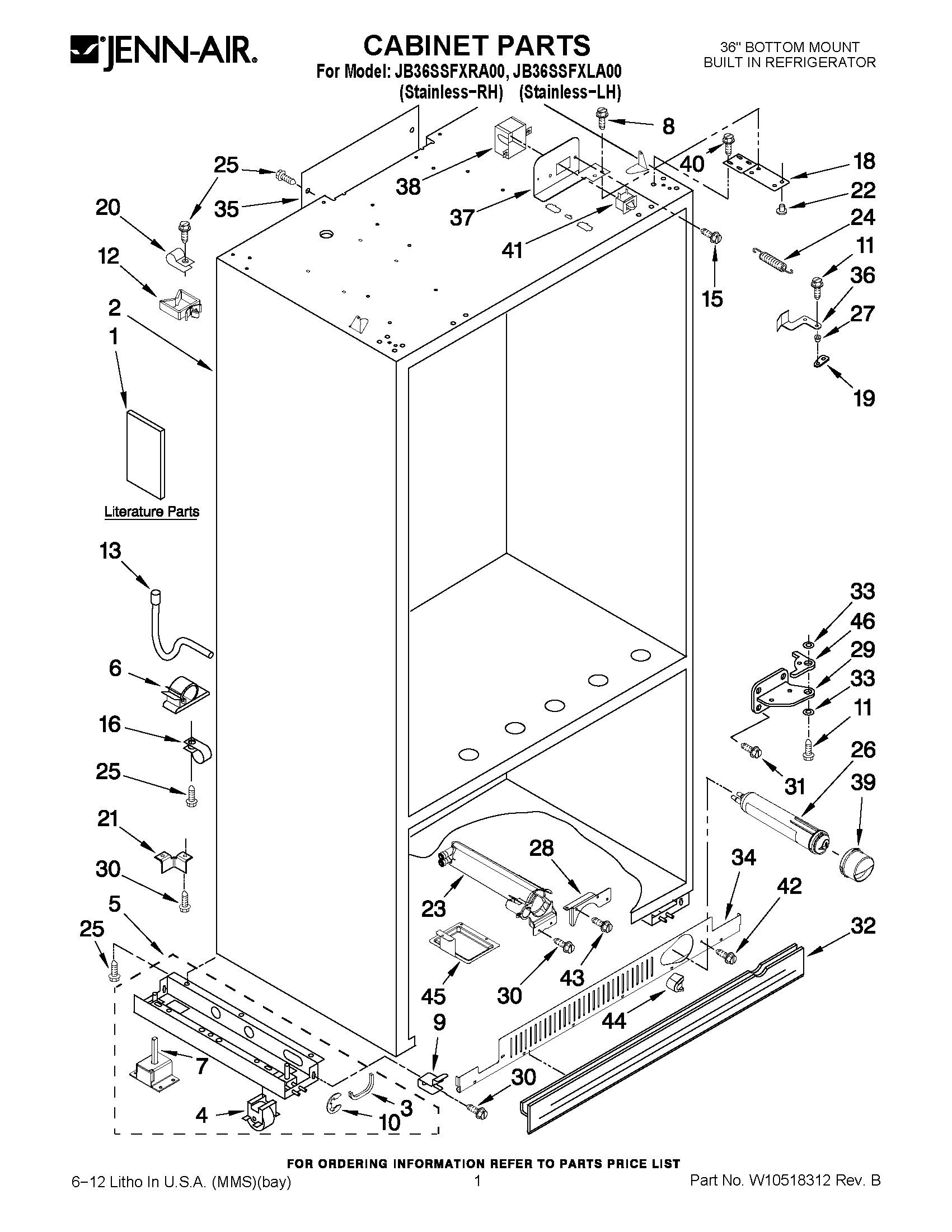

JB36SSFXRA00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10445961
1	MAY W10183782
1	MAY 2317840
1	USE AND CARE GUIDE
1	MAY W10469186
1	MAY W10477525
2	LINER (NOT A SERVICEABLE PART)
3	GROMMET, CROSSOVERTUBE
4	MAY W10138054
5	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
6	CLIP
7	LEVELER ASSY
8	MAY 8281164
9	Mounting Stud, Grille
10	Ring, Retainer
11	MAY W10004850
12	Wire Clip (5)
13	MAY 2314064
15	Screw
16	MAY 489348
18	Hinge (Top)
19	MAY 2005783
20	MAY W10331955
21	Bracket, Support Base (Rear) (2)
22	MAY 2300082
23	MAY W10121140
24	Spring, Door Closure (Right Side)
25	SCREW
26	MAY 4396841
27	MAY 2316859
28	BRACKET, FILTER
29	MAY 2005101
30	MAY W10001250
31	MAY W10162602
32	SKIRT, GRILLE BOTTOM (BLACK)
33	WASHER
34	GRILLE, PUSH FILTER BOTTOM (BLACK)
35	Cover, Rear
36	ARM, EXTENSION (STAINLESS LH)
36	EXTENSION ARM, DOOR CLOSER (RIGHT HAND)
37	MAY 2317001
37	MAY 2221097
38	Cover, Switch (2)
39	MAY 2260518B
40	Screw 1/4-20 x 5/8
41	MAY 1118894
42	MAY W10005050
43	Screw
44	Button, Filter (Black)
45	Tray, Drip Filter
46	COVER, BOTTOM GAP
