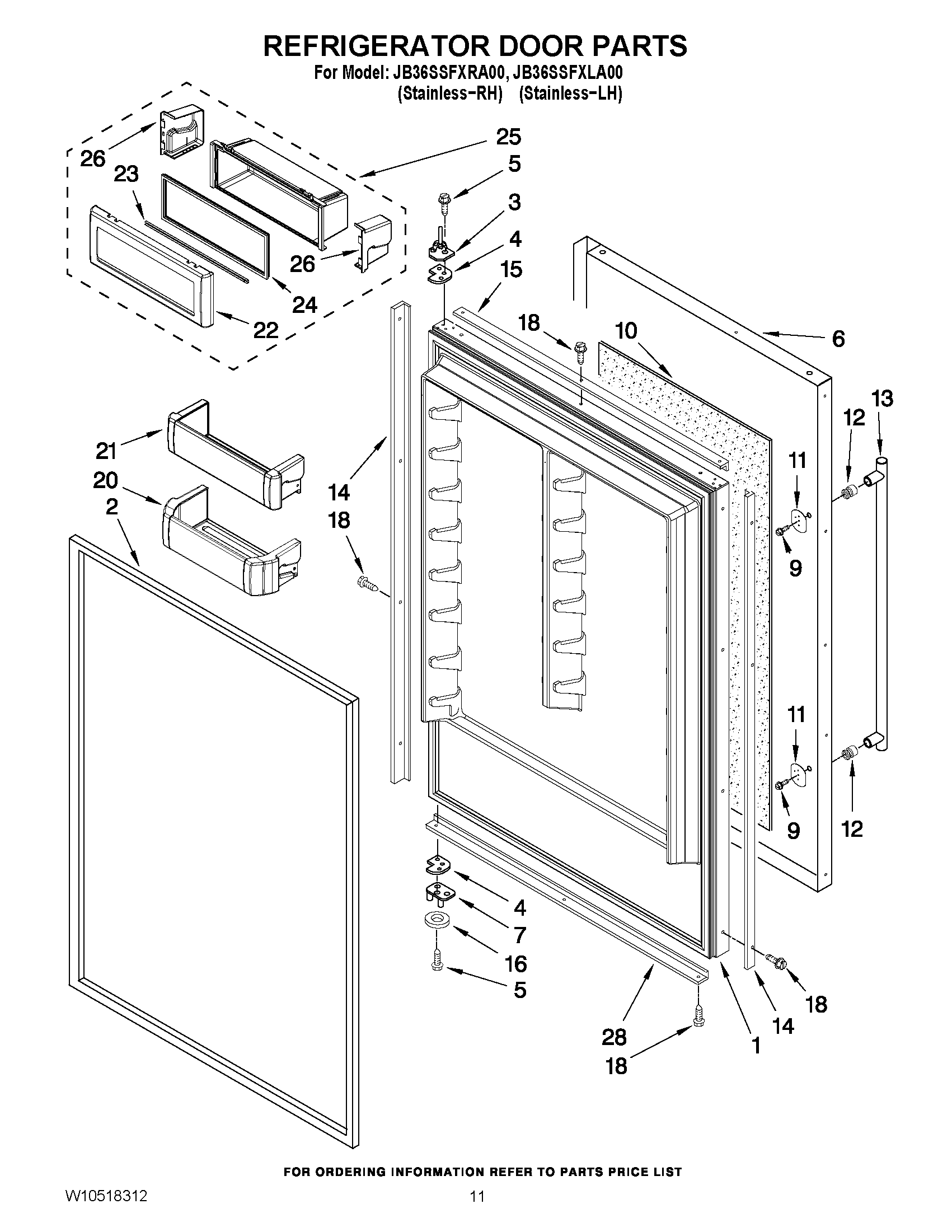

JB36SSFXRA00 07 – REFRIGERATOR DOOR PARTS

JB36SSFXRA00 07 – REFRIGERATOR DOOR PARTS

Written by

in

JB36SSFXRA00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR
2Gasket, Door
4Spacer-Door, Top & Bottom
5MAY 8533980
6MAY W10491168
7BOTTOM HINGE ASSEMBLY (STAINLESS LH)
7BOTTOM HINGE ASSEMBLY (RIGHT HAND)
9Screw
10MAY 2327469
11MAY W10127710
12MOUNT, HANDLE
13HANDLE, DOOR (STAINLESS)
14SPACER, DOOR SIDE EDGE
15SPACER, DOOR-SKIN (WHITE)
16WASHER
18Screw, 8-15 x .500 (Stainless Steel)
20MAY W10323749
21BIN, DOOR
22LID, UTILITY
23RAIL, UTILITY
24GASKET, BIN UTILITY
25MAY W10323044
26END CAP (RIGHT HAND)
26END CAP (LEFT HAND)
28SPACER, DOOR-SKIN (WHITE)
