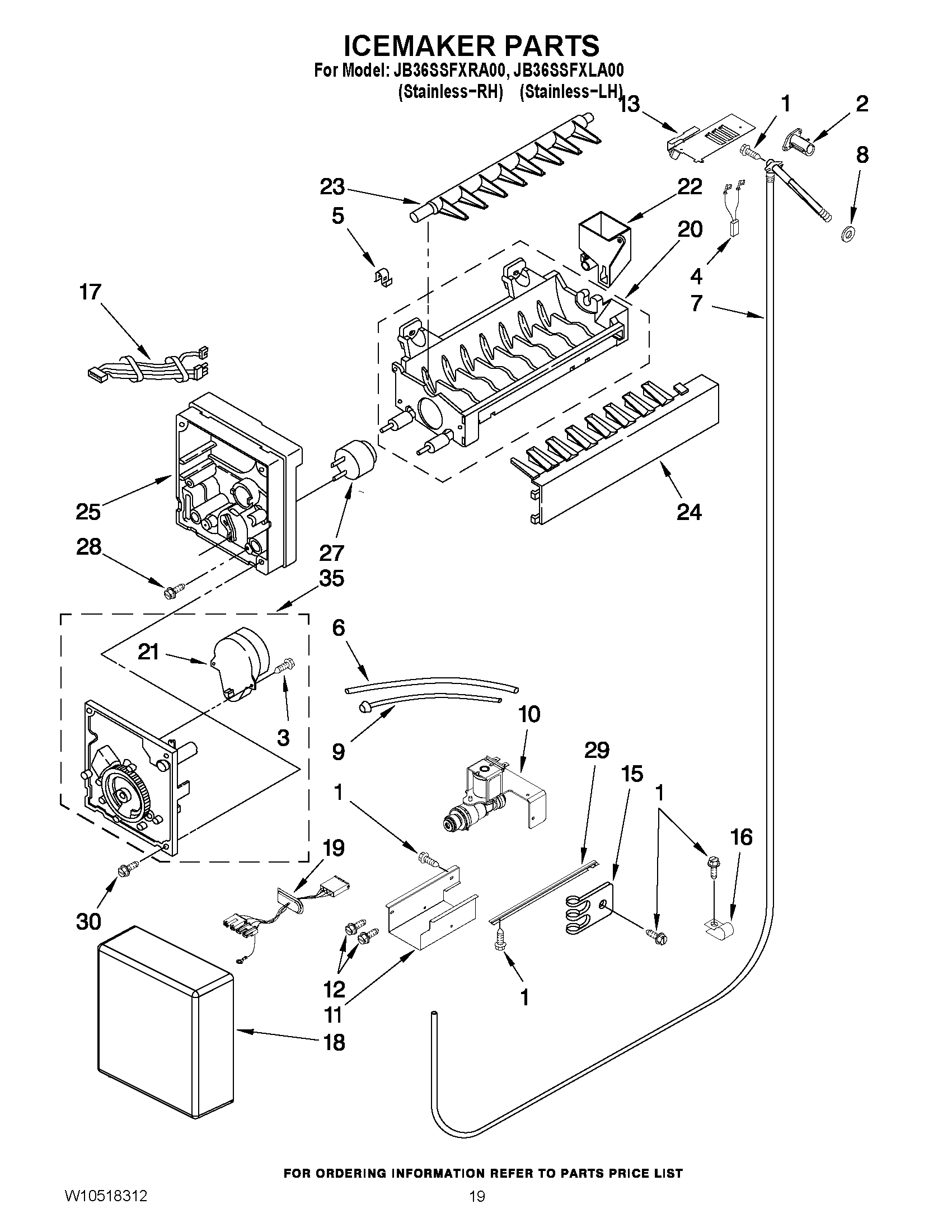

JB36SSFXRA00 11 – ICEMAKER PARTS

Products

Position	Product
NI	MAY 8537055
1	SCREW
2	MAY 2221240
3	MAY 489136
4	Jumper, Fill Tube Heater
5	Clip
6	MAY W10296807
7	MAY 2317847
8	Seal
9	MAY W10437853
10	MAY 2307650
11	MAY W10129653
12	Screw (3)
13	MAY 2221231
15	Clip, Tube
16	MAY W10331955
17	Wire Assembly, Icemaker
18	COVER
19	MAY W10279393
20	MAY W10122527
21	LINER (NOT A SERVICEABLE PART)
22	MAY W10435665
23	MAY 627843
24	ICE STRIPPER
25	MAY 2194712
27	Thermostat (Also Order 542369 Cement Alumilastic)
28	Screw (2)
29	MAY 2320559
30	MAY 489276
35	Module Assembly (Includes Items 23 and 24)
100	MAY W10277450
