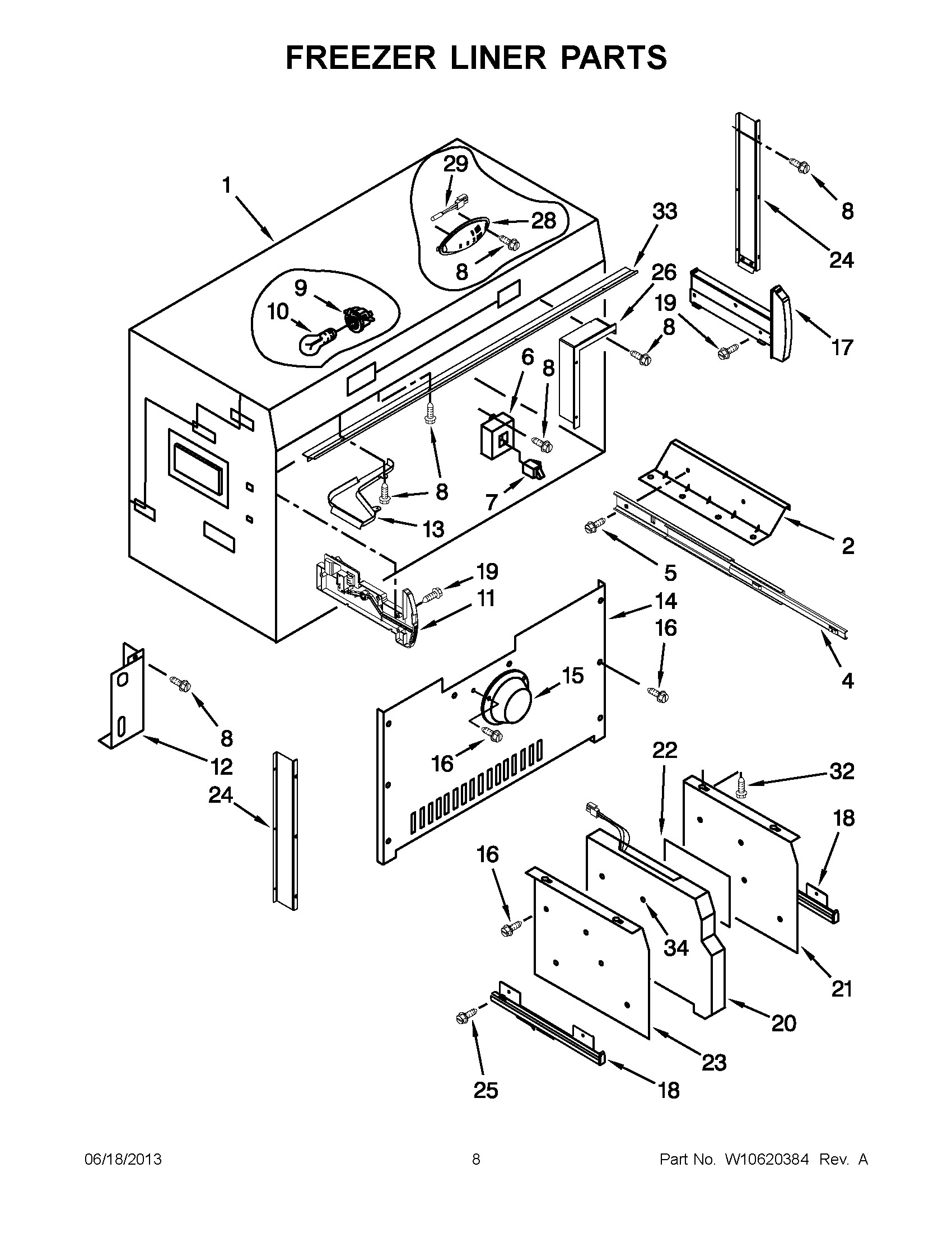

JB36SSFXRA01 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10423553
4	MAY W10423551
5	MAY W10061370
6	COVER, SWITCH
7	MAY 1118894
8	SCREW
9	MAY W10191429
10	Bulb, Light
11	MAY W10321131
12	MAY 2306187
13	MAY 2317006
14	MAY 2268380
15	COVER, FAN
16	SCREW
17	MAY 2306106
18	MAY 2306116
18	MAY 2306117
20	DIVIDER, FREEZER BINS
21	SUPPORT, SLIDE (RIGHT HAND)
22	MAY 2317927
23	SUPPORT, SLIDE (LEFT HAND)
24	BRACKET, EVAPORATOR COVER (LEFT HAND)
24	BRACKET, EVAPORATOR COVER (RIGHT HAND)
25	MAY 488163
26	MAY 2317902
28	MAY 2317105
29	MAY 2188820
32	Screw
33	AIR DEFLECTOR ASSEMBLY
34	MAY 2198643
