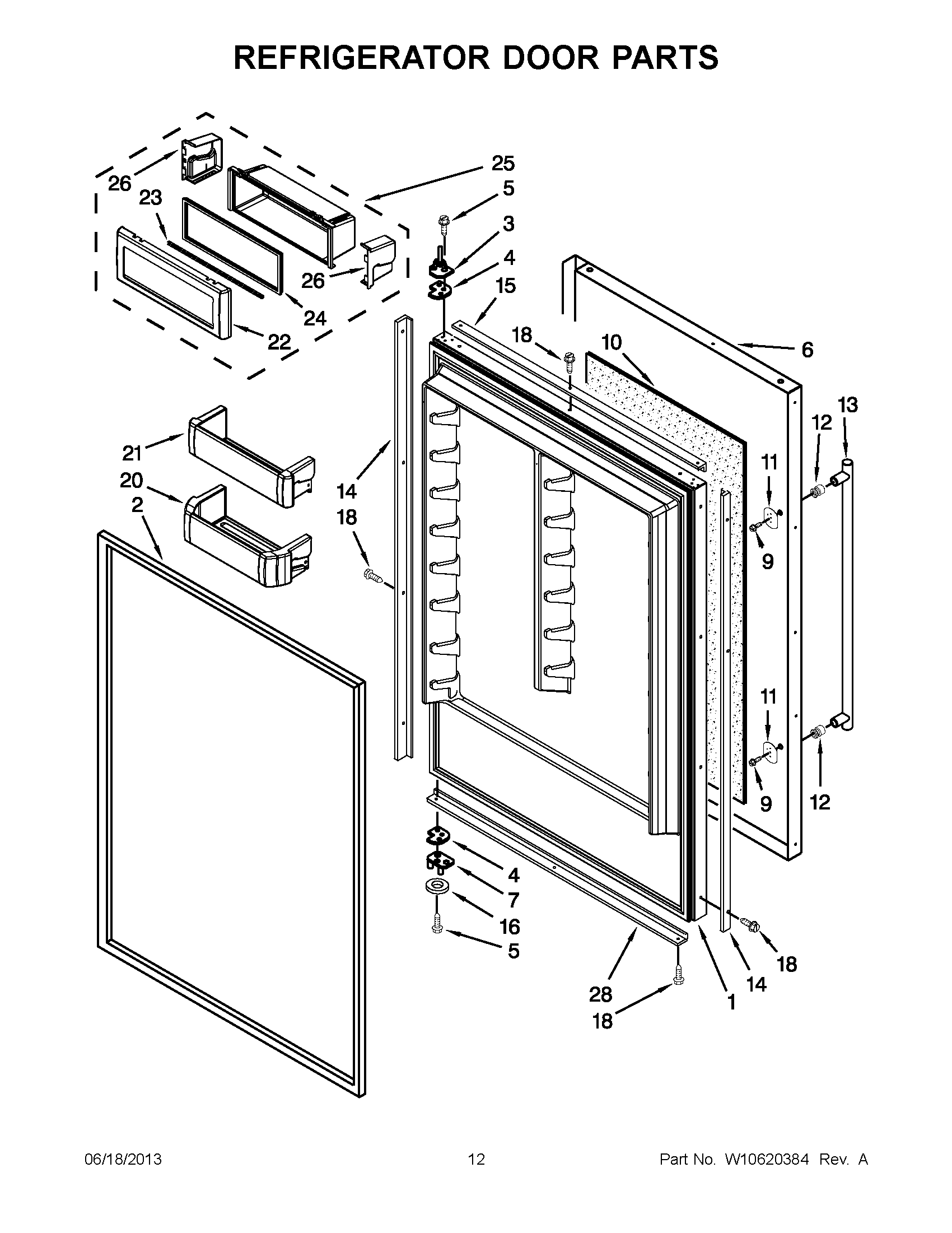

JB36SSFXRA01 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR
2Gasket, Door
3ASSEMBLY, TOP HINGE
4Spacer-Door, Top & Bottom
5MAY 8533980
6MAY W10523730
7BOTTOM HINGE ASSEMBLY (RIGHT HAND)
7BOTTOM HINGE ASSEMBLY (LEFT HAND)
9Screw
10MAY 2327469
11MAY W10127710
12MOUNT, HANDLE
13HANDLE, DOOR (STAINLESS)
14SPACER, DOOR SIDE EDGE
15SPACER, DOOR-SKIN (WHITE)
16WASHER
18Screw, 8-15 x .500 (Stainless Steel)
20MAY W10323749
21BIN, DOOR
22LID, UTILITY
23RAIL, UTILITY
24GASKET, BIN UTILITY
25MAY W10323044
26END CAP (RIGHT HAND)
26END CAP (LEFT HAND)
28SPACER, DOOR-SKIN (WHITE)
